ABB FEA-03 F-series Extension Adapter for ABB Drives

Name: ABB FEA-03 F-series Extension Adapter | Seven Star LLC
Brand: ABB
SKU: FEA-03

Description

Adding F-series modules away from the drive

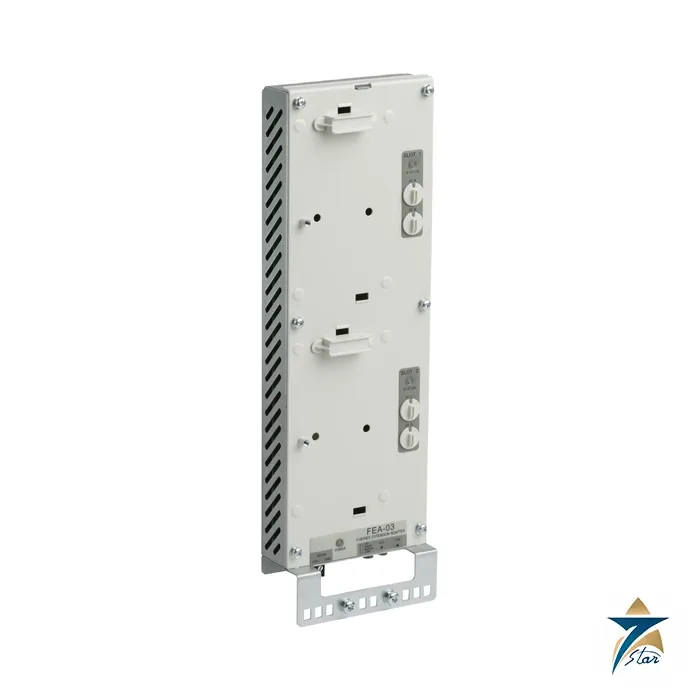

The FEA-03 is a DIN-rail adapter that lets fieldbus or I/O modules from ABB’s F-series be mounted outside the drive. It connects to the drive through a fibre-optic DDCS link and holds one or two modules.

This helps when the drive option slots are used up, when the drive is a module in a cabinet with no free slot, or when the network connection should sit at a convenient location on the rail.

Technical specifications

Parameter	Specification
Type designation	FEA-03
Function	DIN-rail extension adapter for F-series modules
Link to drive	Fibre-optic DDCS, 10 MBd
Capacity	One or two F-series modules
Supply	24 V DC, plus or minus 10%
Degree of protection	IP20
Standards	IEC 61800-5-1 and IEC 61800-3
Mounting	DIN rail

Link and power

The fibre link uses Versatile Link components at 10 MBd, which also gives galvanic separation between drive and module. The adapter needs a 24 V DC supply, plus or minus 10%, and is rated IP20.

The manual references IEC 61800-5-1 for safety and IEC 61800-3 for EMC, which is useful for documentation packs.

Where it fits

Typical use is a large cabinet drive that talks to a plant network through a module placed in the control section.

Plan the fibre routing and bend radius, and a suitable 24 V source.

Selection and planning notes

Fibre-optic links are insensitive to electrical noise and give isolation between the drive and the network equipment, which is helpful in cabinets with large power sections. The cost of this benefit is attention to fibre handling: respect the minimum bend radius, keep connectors clean and label the transmit and receive ends so they are not swapped. A swapped pair is the most common reason for a link fault at first power-up.

Drives that use F-series modules are listed in AC drives, and the ACS580 platform is described on the ABB ACS580 page. Tell us the module types you plan to mount and we will check them against the manual.

Commissioning order matters with remote modules. Power the 24 V supply first, check that the adapter shows a healthy link indication, then enable the module in the drive parameters and only then configure the network on the module itself. When the drive reports a communication loss with the adapter, the cause is usually the fibre pair, the 24 V source or a loose DIN-rail ground rather than the module. Record the fibre lengths used so replacements can be cut to match.

Documents and quotation

Seven Star LLC supplies the FEA-03 on request from Muscat; send the drive type, control program version and the network details, and we reply with availability and lead time. The user manual (3AUA0000115811, revision C) is linked on this page.

Confirm before ordering: which drives support the DDCS link, the module types you will plug in, the 24 V supply and the fibre length.
