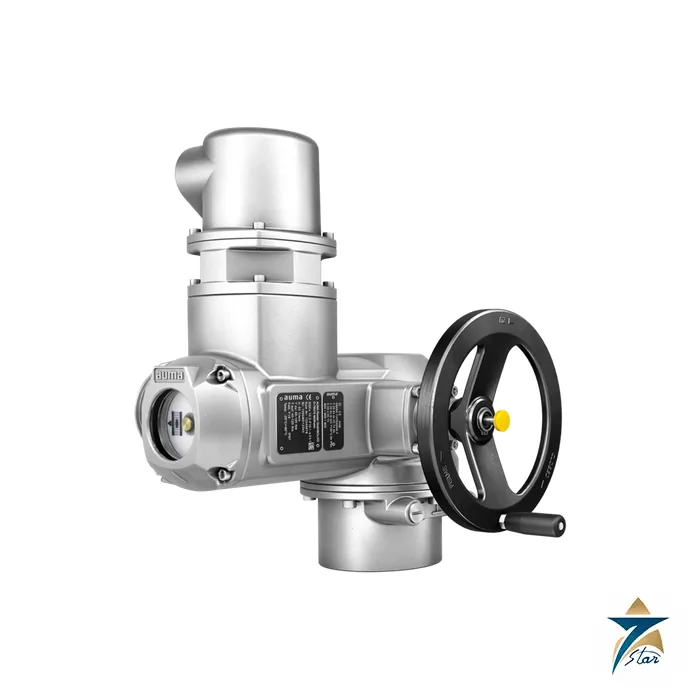

AUMA SQEx 10.2 Explosion-Proof Part-Turn Actuator

Overview

AUMA SQEx 10.2 is the mid-range explosion-proof part-turn actuator and gives a tripping torque window of 200 Nm to 600 Nm. Its run torque for 15 minutes is 157.5 Nm at the fastest 8 s ratio, where the maximum tripping torque is limited to 450 Nm, and 210 Nm at the slower ratios with the full 600 Nm. This frame introduces the F10 flange and the larger 200 mm handwheel in the Ex range.

Seven Star LLC supplies the AUMA SQEx 10.2 to refineries, gas plants and chemical facilities throughout Oman and the GCC. Our team supports buyers in Muscat, Sohar and Salalah with marking checks and documentation so that site inspection proceeds smoothly.

Two Torque Tiers in One Frame

The AUMA SQEx 10.2 has two sets of torque limits depending on the operating time. At 8 seconds the maximum tripping torque is 450 Nm and the run torque is 157.5 Nm. At 11, 16, 22, 32, 42 and 63 seconds the maximum tripping torque rises to 600 Nm and the run torque to 210 Nm. A valve with a high running torque therefore needs a slower gear ratio, even if its seating torque would fit within 450 Nm.

The motor is a 3-phase squirrel-cage unit with PTC thermistor protection, rated for short-time duty S2 – 15 min at the run torque, and the maximum number of starts is 60 per hour. Self-locking is documented for standstill conditions, which prevents back-driving of the valve by line pressure. Motor heaters of 12.5 W at 110 to 120 V, 220 to 240 V or 380 to 480 V AC are available as an option for cold or humid sites.

Engineering Design of the AUMA SQEx 10.2

The valve attachment of the AUMA SQEx 10.2 is EN ISO 5211 F10 standard with F12 option, and the coupling accepts shafts up to 38 mm cylindrical, 30 mm square and 27 mm two-flat. The 200 mm handwheel needs 11 or 15 turns for 90 degrees, and it is declared not to rotate during electrical operation, which protects operators from a spinning wheel.

Weight is about 30 kg, or 34 kg with base and lever. Enclosure protection is IP68, with the terminal compartment additionally sealed, and corrosion protection is KS with KX options for extreme salinity. Intermediate position switches, tandem switches and a position transmitter are available as options, and the magnetic limit and torque transmitter works with ACExC controls for non-intrusive setting.

Key Features

The AUMA SQEx 10.2 brings hazardous-area certification to the mid-torque quarter-turn class.

• A 200 Nm to 600 Nm tripping range, with 157.5 Nm or 210 Nm run torque depending on the speed chosen.
• The 8 s ratio and the slower ratios sit in separate torque tiers, which makes the speed choice transparent.
• ATEX certificate DEKRA 13ATEX0016 X is documented for the standard gas and dust markings.
• F10 standard flange, F12 option and shafts up to 38 mm cylindrical for mid-size valves.
• A non-rotating 200 mm handwheel needs 11 or 15 turns for 90 degrees.
• Optional 12.5 W motor heaters protect against condensation at cold or humid sites.
• KS corrosion protection with KX options for salt-laden air along the Gulf of Oman.
• Intermediate position switches, tandem switches and a position transmitter can be specified.

Selection Guidance for the AUMA SQEx 10.2

With the AUMA SQEx 10.2, the speed selection decides which torque tier applies. A valve whose running torque exceeds 157.5 Nm cannot use the 8 s ratio in the documented duty, and one that needs more than 450 Nm for tripping needs a slower ratio too. Make this choice with the valve datasheet in front of you rather than from the actuator catalogue alone.

Plan the electrical side with the same care. The Ex plug/socket connector and the cable glands must carry certification that matches the actuator, and the controls must be installed according to the applicable rules. Keep the name plate data with the project file after delivery, because inspectors will compare it with the area classification documents during commissioning and at later audits.

Industrial Applications

The AUMA SQEx 10.2 is commonly specified on butterfly valves at crude and product tank farms, isolation valves on gas compression and treatment trains, and ball valves at loading and export terminals. These facilities are typical of the energy sector in the Sultanate, where valves must be remotely operable yet certified for the area. The mid-torque frame also suits chemical plants that handle flammable solvents.

Seven Star LLC supplies the SQEx 10.2 on request to buyers across the GCC.

Adjacent Ex frames include the AUMA SQEx 07.2.

The overall range is described on the AUMA SQEx explosion-proof part-turn actuator page, the standard drive is the AUMA SQ part-turn actuator range, and the AUMA GS part-turn gearboxes serve very high torque.

Technical Specifications

Data for the AUMA SQEx 10.2 from the SQEx 05.2 to SQEx 14.2 sheet follows, with the hazardous-area markings as documented.

Request a Quote for AUMA SQEx 10.2

Seven Star LLC welcomes RFQs for the AUMA SQEx 10.2 from engineers in Oman and the GCC. Provide the area classification, temperature class, valve torque and supply data, and we will confirm the marking and send a formal quotation. The technical data sheet is linked on this page, and as a supplier of AUMA products in Oman and the GCC we supply every AUMA SQEx 10.2 on request.
