Metrohm 916 Ti-Touch Compact Potentiometric Titrator

Overview

Metrohm 916 Ti-Touch is a compact, stand-alone potentiometric titrator built for routine laboratory analysis. Metrohm describes its concept as “reduce to the max”: the buret drive, the stirrer and the control module are combined in one practical unit, so a full titration workstation fits on a very small area of bench. The version offered here, order number 2.916.0020, includes the built-in magnetic stirrer and supports every potentiometric titration mode the instrument family offers.

In Oman and across the GCC, titration remains the reference technique for acid and base numbers of oils, chloride in process and produced water, alkalinity of cooling and boiler water, and assay work in chemical and pharmaceutical laboratories. The Metrohm 916 Ti-Touch gives these laboratories a dependable, easy-to-train platform, and it sits naturally beside the process instrumentation we already list, such as the Metrohm 2035 process analyzer, the Hach BioTector B3500ul online TOC analyzer and the ACCUSERIES-LPA wet chemistry liquid analyzer. Seven Star LLC supplies the Metrohm 916 Ti-Touch with engineering support in Muscat.

Potentiometric Titration Principle

A potentiometric titration follows a chemical reaction by measuring the potential of an indicator electrode against a reference while a titrant of known concentration is dosed into the sample. At the equivalence point the potential changes sharply, and the instrument evaluates that change instead of relying on a colour indicator. The result is an objective, reproducible endpoint that does not depend on the eye of the operator, which is why the method is used for coloured, turbid or opaque samples such as lubricants, crude-derived fractions and industrial effluents.

The Metrohm 916 Ti-Touch supports all the common ways of evaluating the curve. DET is the dynamic equivalence point titration, in which the dosing increment adapts to the steepness of the curve. MET is the monotonic equivalence point titration with constant increments. SET titrates to one or two specified endpoints, STAT covers enzymatic and pH-STAT titrations, and MAT is manual titration. Together these modes cover acid-base, redox, precipitation and complexometric determinations without changing instrument.

Engineering Design of the Metrohm 916 Ti-Touch

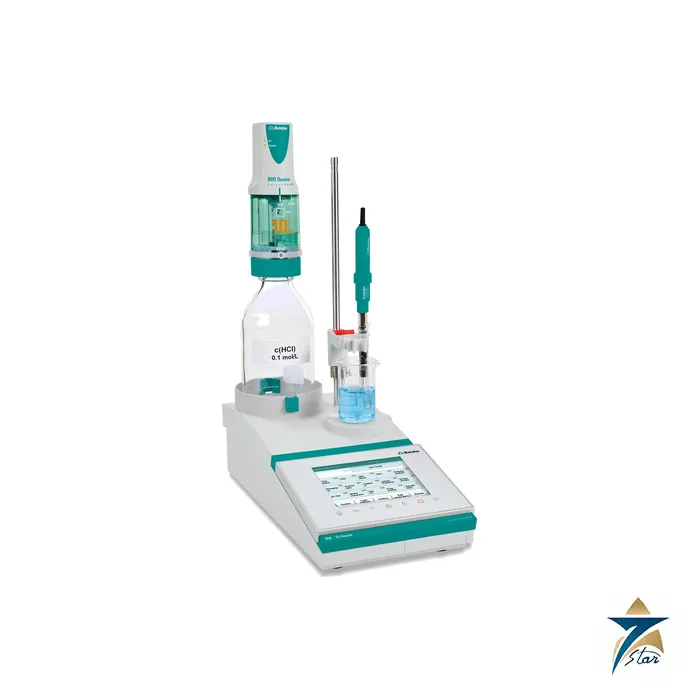

The housing of the Metrohm 916 Ti-Touch combines a tilted colour Touch Control, the dosing interface and the stirrer in one compact base. Reagent handling is built around Dosino technology: up to two 800 Dosino drives or two 805 Dosimat drives can be attached, and the intelligent dosing units carry a data chip so that the instrument knows the reagent, titer and shelf life. The brochure specifies 10,000 dosing steps per cylinder content for the 800 Dosino and 20,000 for the 805 Dosimat. Dosing units are available in 2, 5, 10, 20 and 50 mL sizes, and the no-touch reagent replacement means the operator does not come into contact with the titrant when a bottle is exchanged.

Connectivity on the Metrohm 916 Ti-Touch is deliberately PC-free. Two Metrohm Serial Bus connectors allow a second titration stand with its own buret to be daisy-chained, for example for the sequential determination of total acidity and chloride. USB ports accept a flash drive, a printer, a keyboard, a barcode reader or balances, an Ethernet interface connects to a local network for archiving and LIMS transfer, and an 810 Sample Processor can be added to automate up to 24 samples. A Pt1000 or NTC temperature sensor is supported, and intelligent iTrodes with the 854 iConnect measuring input are recognised automatically.

Key Features

The following features make the Metrohm 916 Ti-Touch a practical choice for busy quality-control and process laboratories:

• All-in-one design with buret drive, built-in magnetic stirrer and control module in a single unit that saves bench space.
• Complete potentiometric capability with DET, MET, SET, STAT and MAT titration modes on one platform.
• Touchscreen with real-time curve display on a 90 mm by 120 mm high-resolution colour display.
• Up to 14 favourite icons per user, so that standard methods start with a single touch.
• Compliance with FDA 21 CFR Part 11 for electronic records and signatures, supporting audits.
• Forge-proof PDF reports generated on the instrument without a PC and saved to a USB flash drive or the network.
• Plug-and-play recognition of electrodes, dosing units and stirrers, with plain-text error messages.
• Dialog languages including English, German, Spanish, French, Chinese, Italian, Portuguese, Polish, Russian, Korean and Japanese.

Industrial Applications

In the oil and gas sector, the Metrohm 916 Ti-Touch is a natural fit for laboratories that monitor lubricants, fuels and process chemicals. Metrohm offers dedicated application packages around the platform, including an oil package for the acid and base numbers of oil products using a non-aqueous iSolvotrode, a salt package for chloride by silver nitrate precipitation titration, and a food package for aqueous acid-base work. The same hardware therefore supports refinery and terminal laboratories at Sohar and Duqm, power-station chemistry laboratories that follow cooling water alkalinity and chloride, and desalination plants along the coast of Oman that verify product and reject water.

Because the Metrohm 916 Ti-Touch runs without a PC, it also suits smaller site laboratories, university and college teaching labs and contract testing facilities in Muscat and Salalah where bench space and IT support are limited. Seven Star LLC supplies the Metrohm 916 Ti-Touch together with the dosing units, electrodes and stirrers that a given method needs, and our engineers can help confirm which scope of delivery matches your titration list before an order is placed.

Technical Specifications

The table summarises the published data for the Metrohm 916 Ti-Touch as listed in the Metrohm brochure and scope-of-delivery sheet. Confirm your exact configuration with our team before ordering.

How to Order

To request a formal quotation for the Metrohm 916 Ti-Touch, send the configuration you need, including dosing unit sizes, electrodes and any 810 Sample Processor, through the RFQ form or contact our instrumentation division in Muscat. Seven Star LLC supplies Metrohm laboratory and process equipment to customers across Oman and the GCC, with engineering support and the technical documentation attached to this page.
