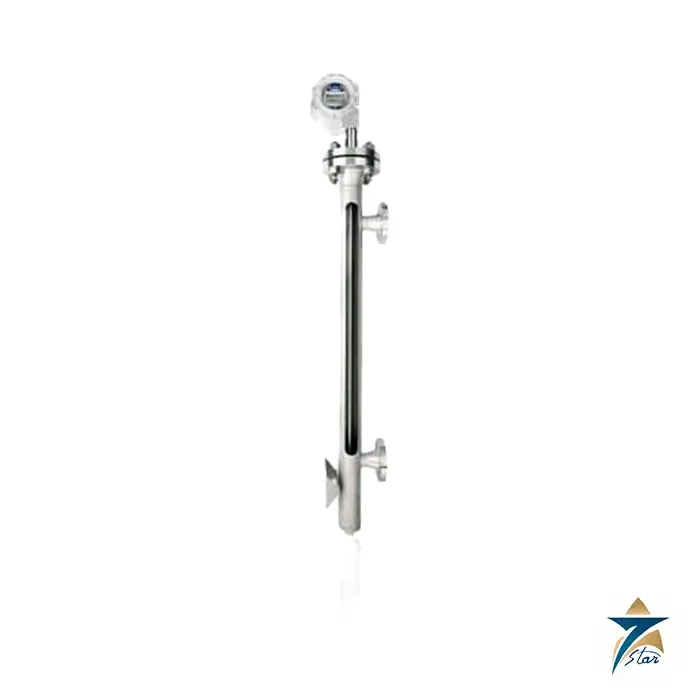

ABB Guided Wave Radar Level Transmitter MT5100

Overview

The ABB MT5100 is a next-generation guided wave radar (GWR) level transmitter offering enhanced accuracy and durability over ABB’s standard MT5000, using time domain reflectometry (TDR) to measure liquids, interfaces, or solids with exceptional precision even in extreme conditions involving steam, pressure, or turbulence. The MT5100’s expanded probe-type selection and hazardous-area certification are the key upgrades over the MT5000 for facilities with more demanding process or safety requirements.

Seven Star LLC supplies the ABB MT5100 to chemical processing, oil and gas, and wastewater treatment operators across Oman and the wider GCC as an experienced supply partner for genuine ABB instrumentation. Every unit is supplied on request with manufacturer documentation, and supported locally with probe selection guidance for demanding process conditions.

Operating Principle

Like the MT5000, the MT5100 sends a guided microwave pulse down a probe and analyzes the reflected signal via time domain reflectometry to determine level, but with refinements to signal processing that maintain stable readings even with fluctuating media densities or challenging tank geometries that would be more difficult for the standard model. The device maintains stable readings across a broader range of demanding process conditions, including steam-laden vessels and high-pressure service.

Advanced signal processing technology reduces noise and delivers consistent measurement in real-time, while onboard diagnostics provide insights into device health and process conditions – enhancing predictive maintenance and reducing downtime beyond what the base-level diagnostics on the standard MT5000 provide. Across the MT5000 series family, measurement range extends to 200 ft (61 m), with accuracy of ±3 mm on coaxial probes and ±5 mm on other probe configurations, process temperature up to 800°F (427°C) depending on coupler type, and process pressure up to 5000 psi (344 bar) with the high-pressure option.

Engineering Design of the ABB MT5100

This transmitter features multiple probe types and lengths, offering adaptability for a wide variety of tank sizes and process requirements, with a modular design that allows for easy installation and maintenance. With HART, PROFIBUS, and FOUNDATION Fieldbus communication protocols, the MT5100 ensures smooth integration into existing control systems.

Constructed with corrosion-resistant materials – 316L stainless steel as standard, with Hastelloy C-276, Hastelloy B3, Monel, Titanium, or Inconel 625 available for aggressive chemical service – the MT5100 withstands harsh environments and aggressive chemicals, and is certified for use in hazardous areas (FM, CSA, ATEX flameproof and intrinsically safe, IEC/IECEx), ensuring safety and compliance in facilities where such certification is a hard requirement rather than a preference. Probe configurations include rigid single or dual rod, flexible cable, tri-tape, sanitary, and coaxial designs, and the transmitter is rated for media with a minimum dielectric constant of 1.4 and viscosity up to 1500 cP.

Key Features

• Enhanced guided wave radar accuracy and durability over the standard MT5000
• Multiple probe types and lengths for broad tank/process adaptability
• Stable performance in steam, high pressure, and turbulent conditions
• Advanced signal processing with onboard health diagnostics
• HART, PROFIBUS, and FOUNDATION Fieldbus communication
• Stainless steel or Hastelloy corrosion-resistant construction
• Certified for use in hazardous areas
• Modular design for easy installation and maintenance
• Measurement range to 200 ft (61 m); accuracy ±3 mm (coaxial) or ±5 mm (other probes)
• Process temperature to 800°F (427°C) and pressure to 5000 psi (344 bar) with options

Industrial Applications

The MT5100 is ideal for industries such as chemical processing, oil and gas, and wastewater treatment where extreme process conditions – steam, high pressure, aggressive chemicals, or hazardous-area classification – call for the MT5100’s enhanced diagnostics and expanded probe options over the standard MT5000.

Across Oman’s petrochemical and oil and gas sectors, and throughout the wider GCC, Seven Star LLC supplies the MT5100 as a trusted supplier of ABB products to facilities in Muscat, Sohar, and Salalah that require dependable, factory-genuine advanced guided wave radar transmitters with full local support, correctly matched to the customer’s dielectric constant, temperature, and pressure conditions.

Technical Specifications

Request a Quote for ABB Guided Wave Radar Level Transmitter MT5100

Contact Seven Star LLC for a quotation on the ABB MT5100 guided wave radar level transmitter, with manufacturer documentation and local support across Oman and the GCC.

Choosing the Probe for Your Vessel

With guided wave radar, the probe decides most of the performance. Use these rules of thumb with the process data:

• Coaxial probe – the best choice for low-dielectric liquids such as light hydrocarbons and LPG, and for small chambers or bridles, as the signal stays inside the tube. Avoid it on viscous, coating or dirty media, which can bridge the gap.
• Single rigid rod – tolerant of coating and easy to clean; needs enough clearance from nozzle walls and internals.
• Twin rod or cable – twin designs improve signal strength on lower dielectrics; flexible cable probes suit tall tanks and silos where a rigid probe cannot be installed.
• Interface duty – the upper liquid must have a lower dielectric constant than the lower one, the upper layer must be thick enough to resolve, and a thick emulsion layer weakens the interface echo.

For the order, give the tank height and nozzle size, process connection, media and dielectric constant, operating temperature and pressure, wetted material, hazardous-area classification and output protocol.

Installation and Commissioning

• Mount away from inlets, agitators, ladders and heating coils, and keep the nozzle short and wide enough for the probe type.
• In stilling wells and bypass chambers, use a well without obstructions and matched to the probe; a chamber is a good way to reach steady readings in turbulent vessels.
• Enter the probe length, reference point and media data, then record an empty-tank echo profile so that fixed disturbance echoes are known.
• Check the reading against a sight glass or dip at two or more levels before handing the loop over.

Maintenance and Troubleshooting

• Level stuck at a fixed point – a disturbance echo from a nozzle or internal; review the echo curve and update the mapping.
• Loss of echo – heavy coating, foam or a dielectric lower than the configured value.
• Offset at high temperature or pressure – in steam service, check that the vapour compensation settings suit the application.
• Routine checks – save the echo curve at commissioning and compare it at each inspection to see coating build-up early.

Level Applications in Oman and the GCC

Typical duties in the region include three-phase separators and slug catchers in upstream oil and gas, condensate and LPG storage, boiler drums and feedwater heaters in power plants, and chemical storage in petrochemical complexes. In these services, choosing the certification and wetted materials correctly for sour gas, brine or chemicals matters as much as the measurement itself.

Sourcing from Seven Star LLC

Send us the process datasheet or the list above. We match the probe and options and confirm the lead time for delivery to site.
