Brand: Magnetrol

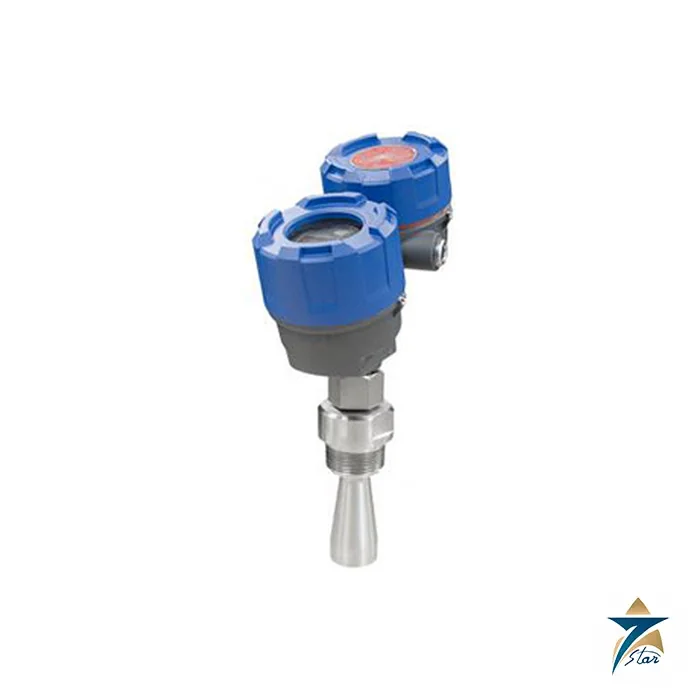

Magnetrol Pulsar R86 26 GHz Radar Level Transmitter
Description
Overview
The Magnetrol Pulsar R86 is a non-contact radar transmitter that looks down on the liquid surface and reports level, volume or open-channel flow over a two-wire 24 VDC loop. It is the 26 GHz member of the Pulsar family, sitting between the 6 GHz Pulsar R96 and the 80 GHz Pulsar R80, and Magnetrol positions it for process and storage vessels that need better resolution and a smaller beam than a 6 GHz unit but do not need the narrowest beam. Setup wizards, an echo rejection routine and plain-language diagnostics make the Magnetrol Pulsar R86 simpler to commission than older radar technology.
Seven Star LLC supplies the Magnetrol Pulsar R86 to refineries, petrochemical plants, power stations and water utilities across the Sultanate of Oman and the GCC. Our Muscat team helps customers choose horn size, process connection and output type, and checks the application against the datasheet limits for dielectric, turbulence and foam.
Operating Principle
The Magnetrol Pulsar R86 uses pulse burst radar with equivalent time sampling. The electronics emit short bursts of 26 GHz microwave energy, and the reflection from the liquid surface returns with a delay that depends on distance, using the relation distance equals the speed of light multiplied by the transit time and divided by two. Level is then calculated from the configured tank height, and signal processing separates the true surface echo from false target reflections and background noise. The circuitry is energy efficient enough that duty cycling is not needed.
Unlike guided wave radar, which sends a single fast pulse along a probe, the Magnetrol Pulsar R86 sends bursts through the air, so there is nothing in the liquid to foul, bend or corrode. Its performance does not depend on changing specific gravity or dielectric, and it tolerates visible vapours, turbulence, high fill and empty rates, and low to moderate foam and build-up. Circular polarization means the beam does not have to be rotated and aligned during commissioning.
Engineering Design of the Magnetrol Pulsar R86
The Magnetrol Pulsar R86 is available with horn antennas of 1.5, 2, 3 and 4 inch, and the 4 inch horn gives the strongest signal and the narrowest 9 degree beam. Antenna materials and seals cover PTFE, PEK, alumina and high-temperature options, with antenna designs rated to +400 °C and -1.0 to 160 bar depending on the seal. A quick connect/disconnect coupling lets the electronics be removed while the vessel stays sealed, and a heat extension protects the electronics in hot service.
The housing is die-cast aluminium rated IP67, with an optional stainless steel version, and the cable entry is 1/2 inch NPT or M20. Antenna extensions allow the transmitter to reach below nozzles up to 1.8 m high, and the unit can be mounted in a metal stillwell of 1.75 to 8 inches inside diameter. A four-button keypad and graphic LCD display give access to the configuration and the echo curve, with menu languages that include English, French, German, Spanish, Russian, Portuguese and Polish.
Key Features
This radar balances range, accuracy and ease of use. Key features of the Magnetrol Pulsar R86 include:
- Two-wire, 24 VDC loop-powered operation for level, volume or flow, with HART 7 or Foundation Fieldbus output.
- 26 GHz pulse burst radar with measuring range up to 130 feet (40 metres).
- Accuracy of plus or minus 3 mm or 0.1 percent of tank height, whichever is greater, and 1 mm display resolution.
- Antenna designs to +400 °C and 160 bar, with a quick connect/disconnect coupling that keeps the vessel sealed.
- Setup and echo rejection wizards, and proactive diagnostics that suggest troubleshooting steps.
- SIL 2 suitability with a safe failure fraction of 93.2 percent, supported by a full FMEDA report.
- PACTware and enhanced DTM support for advanced configuration and echo curve analysis.
- Open channel flow capability with 35 stored flume and weir curves, two flow totalizers and a 20-point custom table.
Industrial Applications
The Magnetrol Pulsar R86 suits storage and holding tanks, reactors and mixing vessels, enclosed sumps and open channels. In Oman, crude and product storage, refinery process units, cooling-water basins and desalination brine tanks all present liquids with changing dielectric, vapour and surface movement that the Magnetrol Pulsar R86 can handle. Where the application involves very low dielectric media, interface layers or heavy clutter, Magnetrol recommends a guided wave radar, and the Magnetrol Eclipse 706 is the natural companion for those vessels. Buyers comparing the technology can also review the ABB MT5200 guided wave radar transmitter.
Seven Star LLC supports projects in the Sohar and Salalah economic zones and in utilities across the GCC with engineering support in Muscat. For clients who want a second radar option in the same price class, we can quote the Endress+Hauser Micropilot FMR60 alongside the Magnetrol Pulsar R86 so that antenna, range and approvals can be compared side by side.
Technical Specifications
The table lists the main data of the Magnetrol Pulsar R86 from the Magnetrol datasheet. Pressure and temperature ratings depend on the antenna and seal selected.
| Parameter | Specification |
|---|---|
| Model | Magnetrol Pulsar R86 26 GHz pulse burst radar level transmitter |
| Measurement span | 0.5 to 130 ft (0.2 to 40 m) |
| Output | 4-20 mA with HART 7; Foundation Fieldbus H1; PROFIBUS PA option |
| Power | 24 VDC loop-powered, 11 VDC minimum at terminals (HART) |
| Accuracy | ±3 mm or 0.1% of tank height, whichever is greater |
| Antenna sizes | 1.5, 2, 3 and 4 inch horns |
| Process limits | Up to +400 °C; -1.0 to 160 bar, depending on antenna and seal |
| Ambient temperature | -40 to +80 °C; LCD viewable -20 to +70 °C |
| Housing | IP67 die-cast aluminium or stainless steel |
| Functional safety | SIL 2 (1oo1) per IEC 61508, SFF 93.2% (HART) |
| Approvals | FM, ATEX and IECEx: Ex ia, Ex db ia, Ex ec |
| Dielectric range | 1.7 to 100 (1.4 in a stillwell) |
Request a Quote for Magnetrol Pulsar R86
Send Seven Star LLC your RFQ for the Magnetrol Pulsar R86 with the tank height, process medium, dielectric, connection size, temperature, pressure and required hazardous-area approval. Our instrumentation division in Muscat will confirm the antenna and output option and attach the Magnetrol datasheet to the quotation. Seven Star LLC supplies Magnetrol equipment with manufacturer documentation and local engineering support across Oman and the GCC, so contact us today.
Datasheets & Documents
- Datasheet Magnetrol Pulsar R86 26 GHz Radar Level Transmitter Datasheet Download
Reviews (0)
How would you rate this product? Cancel reply
About brand
Magnetrol is the American level and flow measurement specialist known for the Eclipse guided wave radar, Pulsar radar transmitters and the float and displacer switches that guard boilers and vessels. It was founded in 1932, is based in Aurora, Illinois, and has been part of AMETEK since 2021.
Seven Star LLC is an independent supplier in Muscat. We list Magnetrol level transmitters and level and flow switches, and supply them to refineries, gas plants and utilities in Oman and the GCC by complete model number.
Magnetrol company profile
| Established | 1932, USA; headquarters in Aurora, Illinois |
|---|---|
| Ownership | Acquired by AMETEK in March 2021 and now part of its Electronic Instruments Group |
| Product families | Guided wave radar, non-contact radar, displacer and buoyancy transmitters, ultrasonic and thermal dispersion switches, float switches and magnetic level indicators (through its Orion Instruments brand) |
| Applications | Separators, storage tanks, boilers and feedwater heaters, interface measurement, pump protection and flow detection |
Milestones
- 1932: The first mechanical buoyancy level switch; the company grows into Magnetrol, based in Aurora, Illinois.
- 1998: Eclipse Model 705, a loop-powered guided wave radar transmitter for industrial liquid level, according to Magnetrol.
- 2021: AMETEK acquires Magnetrol on 29 March.
Magnetrol products we list
| Model | Principle | Typical use |
|---|---|---|
| Eclipse 706 | Guided wave radar | Level and interface in separators, chambers and boiler drums, unaffected by changing density |
| Pulsar R80 | 80 GHz FMCW radar | Narrow-beam non-contact level in tanks with internals and in solids |
| Pulsar R86 | 26 GHz radar | Non-contact level in process and storage vessels |
| Pulsar R96 | 6 GHz radar | Non-contact level where vapour, foam or condensation are present |
| E4 Modulevel | Displacer | Level and interface in high-pressure, high-temperature vessels, often replacing older torque tube units |
| Echotel 961/962 | Ultrasonic gap switch | High and low level alarms and pump protection |
| Thermatel TD1/TD2 | Thermal dispersion switch | Flow and no-flow detection and level switching for liquids and gases |
Guided wave radar sends pulses down a probe and times the reflection from the surface, so dust, vapour and changes in density don't affect the reading. That is why it often replaces displacers on separators and chambers. Non-contact radar suits tanks where nothing should touch the product, and a higher frequency gives a narrower beam that avoids tank internals.
Where Magnetrol instruments are used
In Oman and the GCC, Magnetrol transmitters and switches measure level in production separators, slug catchers, storage tanks, boiler drums and feedwater heaters, and protect pumps in oil and gas, refining, petrochemical, power and water plants.
Ordering Magnetrol instruments: what we need
Send the complete model number from the nameplate. On Magnetrol instruments every digit sets the electronics, the probe or antenna, the process connection and the approvals. For a new application, send the medium, the dielectric constant if known, the measuring range, the pressure and temperature, the process connection and the hazardous area classification.
Facts checked against Magnetrol and AMETEK company information, October 2026.
Browse Magnetrol products by category: Level Transmitter.
FAQ
Questions about the Magnetrol Pulsar R86 26 GHz Radar Level Transmitter
Answers from our engineering team on installation, compatibility and integration.
01What is the maximum range of the Magnetrol Pulsar R86?
The datasheet gives a span of 0.5 to 130 feet (0.2 to 40 metres). The usable range depends on antenna size, dielectric constant and turbulence, and the 4 inch horn gives the longest recommended range of 130 feet in calm liquids with a dielectric above 10.
02Which process media suit the Magnetrol Pulsar R86?
The Magnetrol Pulsar R86 measures liquids and slurries from hydrocarbons to water-based media, with a dielectric of 1.7 to 100, or 1.4 in a stillwell. Extremely low dielectric media, interface measurements and heavily cluttered tanks are better handled by guided wave radar such as the Eclipse 706.
03What outputs and diagnostics does the Magnetrol Pulsar R86 offer?
It provides 4-20 mA with HART 7, or Foundation Fieldbus H1, with NAMUR NE 43 alarm levels and NE 107 diagnostic indication. A graphic LCD, four-button keypad, setup and echo rejection wizards and PACTware DTM support are included.
04Is the Magnetrol Pulsar R86 suitable for safety loops and hazardous areas?
The R86 is rated for functional safety to SIL 2 as 1oo1 per IEC 61508, with a safe failure fraction of 93.2 percent on the HART version. The datasheet lists FM, ATEX and IECEx approvals including intrinsically safe, flameproof and non-incendive types.
05Does Seven Star LLC supply the Magnetrol Pulsar R86 in Oman?
Seven Star LLC supplies the Magnetrol Pulsar R86 with engineering support in Muscat for projects in Oman and the GCC. Tell us the tank height, medium, process connection and approval needed and we will quote the matching antenna and output option.
