ABB Flow-X/M modules Flowcomputer
Overview

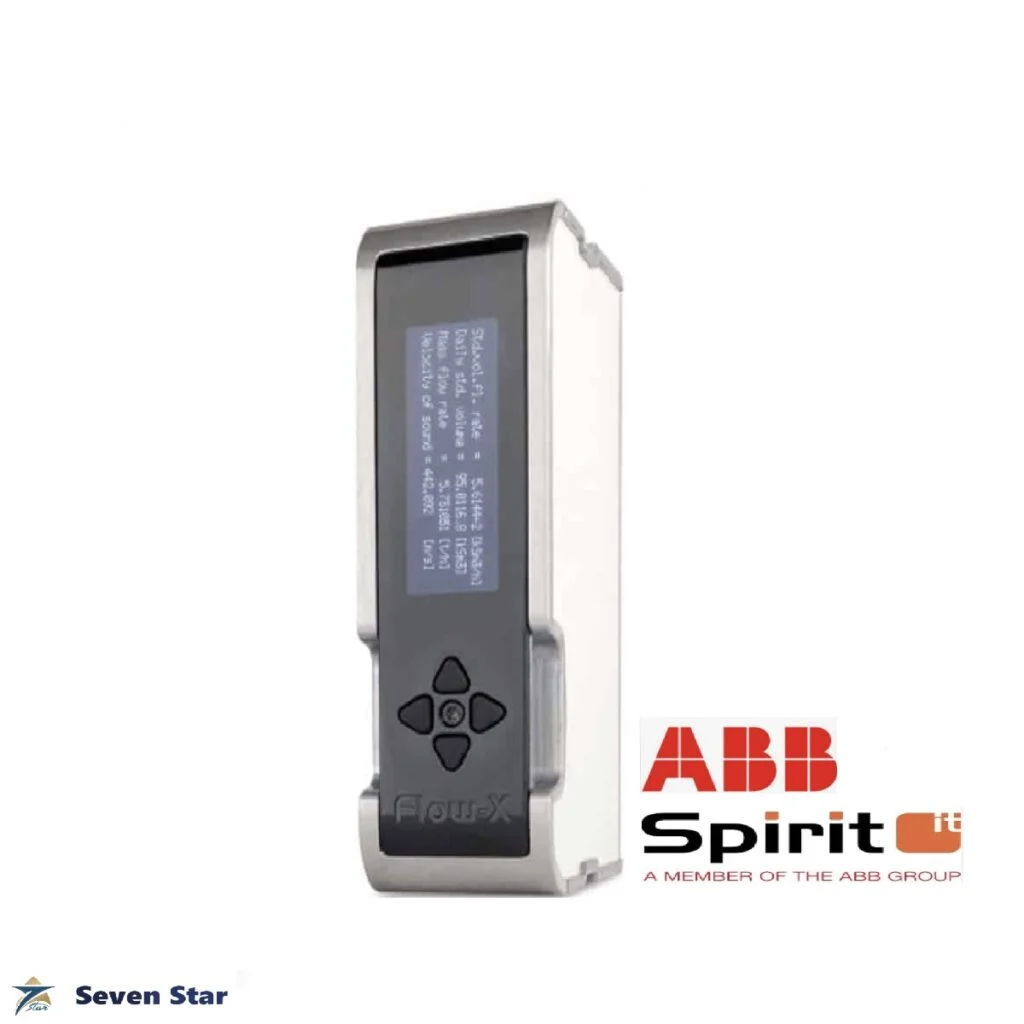

ABB Flow-X/M is the core module of the Flow-X family. Each /M is a complete single-stream flow computer with precision I/O, dual-pulse proving support and robust reporting, designed for custody/fiscal metering. It installs in panel, rack or field enclosures and can be configured locally via touchscreen or remotely through a secure HTTPS web server.
Key Features
Single-stream core: Each Flow-X/M is a full flow computer for one meter run; multiple /M modules combine inside Flow-X/P for multi-stream stations.
High-accuracy I/O: Precision AI and pulse inputs (incl. dual-pulse proving) for demanding fiscal applications.
Standards & calculations: AGA/API/ISO plus GERG-2008 for natural gas; liquid density/energy options by configuration.
Interfaces & usability: Local touchscreen (model-dependent) and secure web UI for configuration, monitoring and diagnostics.
Scalable enclosures:Flow-X/P for 1–4 streams with local HMI, Flow-X/S for compact single-stream, and Flow-X/C standalone options.
Technical Highlights
Analog inputs (typical ranges mA/V) with very low error; high-resolution pulse inputs for turbine/PD/orifice/Coriolis/ultrasonic meters.
Dual-pulse double chronometry proving support, hourly/daily/monthly reports, extensive event/parameter logs.
Industrial comms (per build), security/user roles, and audit-friendly data retention.
Wide ambient rating; EMC/EMI-hardened design for harsh sites (exact ratings depend on variant).
Applications
Custody transfer & fiscal metering (gas and liquid)
Pipeline metering stations and terminal loading/LACT skids
Multi-stream stations using Flow-X/P with multiple /M modules
Brownfield replacements where precise I/O and modern web access are required
Compliance & Standards
AGA/API/ISO calculation libraries; GERG-2008 for gas compressibility; reporting and data integrity suitable for audited metering systems (final approvals depend on model code and enclosure).
Choosing Your Enclosure
Flow-X/M — single-stream core module (this product)
Flow-X/P — panel/rack enclosure with HMI to host 1–4 streams (multiple /M modules)
Flow-X/S — compact single-stream enclosure (space-constrained sites)
Flow-X/C — standalone configurations for specific station needs
Request a Quote for ABB Flow-X/M modules Flowcomputer
Send us your fluid (gas/liquid), meter type (ultrasonic/turbine/orifice/PD/Coriolis), number of streams, proving needs, and preferred protocols. Seven Star LLC will return the exact model code/enclosure, lead time, and the best regional pricing.
Technical Overview
The ABB Flow-X/M is the core computation module of ABB’s SpiritIT Flow-X series flow computer platform, used for accurate flow calculation from multiple sensor inputs across oil and gas custody transfer and general industrial flow measurement applications. Per ABB’s official datasheet, the Flow-X/M module is built around a 32-bit microprocessor with a dedicated math coprocessor and FPGA, providing 1 GB of onboard memory for time-stamped historical and event data logging, and a real-time clock accurate to 2 ppm. Analog input accuracy is specified at 0.002% at reference (room) temperature, reflecting the high-precision requirements of fiscal/custody-transfer flow measurement.
The module accepts 6 analog transmitter inputs (supporting 4–20 mA, 0–20 mA, 0–5 V, or 1–5 V signal types) at 24-bit resolution, 2 four-wire PRT temperature inputs, and 4 independent HART loop inputs with multi-drop support, along with 16 digital inputs (100ns resolution), 16 digital outputs, and 4 pulse outputs for interfacing with turbine, ultrasonic, or positive-displacement flow meters. Specialized input types support density/viscosity meters, sphere detectors for pipeline prover systems, and prover-bus configurations used in meter proving verification. Communication is available via 2 RS485/RS232 serial interfaces and 2 Ethernet ports, supporting Modbus RTU/ASCII (Master and Slave), Modbus TCP, HART Master, and ABB’s proprietary Flow-X Client protocol.
The Flow-X/M module is available in several enclosure configurations: the Flow-X/S single-stream DIN-rail-mounted unit with LCD and screw terminals; the Flow-X/K compact single-stream unit with D-sub connectors; the Flow-X/P multi-stream panel unit supporting up to 4 modules with a 7-inch color touchscreen; and the Flow-X/R rack-mounted unit in 19-inch format supporting up to 8 modules for large multi-stream metering stations. The platform supports the full range of industry-standard flow calculation methods, including AGA5/7/8/10 and GERG-2008 for gas, API 5/6/23/24/53/54/59/60 and GPA standards for liquid, and ISO 5167/V-cone/AGA3 for differential-pressure flow measurement. Certifications include CE marking per EN 12405-1, OIML R117, WELMEC 7.2/8.3/8.8, and compliance with the EU Measuring Instruments Directive (MID) 2004/22/EC, reflecting the platform’s suitability for legally regulated fiscal metering applications. Operating temperature range is 0°C to 60°C, with power input of 20–32V DC (nominal 24V DC) at approximately 0.3A nominal consumption.
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | Flow-X/M |
| Product Type | Single-stream flow computer module (SpiritIT Flow-X) |
| Processor | 32-bit microprocessor with math coprocessor and FPGA |
| Memory | 1 GB |
| Analog Inputs | 6 (4–20 mA, 0–20 mA, 0–5 V, 1–5 V), 24-bit; accuracy 0.002% |
| Other Inputs | 2 four-wire PRT, 4 HART loops, 16 digital inputs |
| Outputs | 16 digital outputs, 4 pulse outputs |
| Communication | 2 RS485/RS232, 2 Ethernet; Modbus RTU/ASCII, Modbus TCP, HART Master, Flow-X Client |
| Calculation Standards | AGA5/7/8/10, GERG-2008, API, GPA, ISO 5167, AGA3 |
| Certifications | EN 12405-1, OIML R117, WELMEC 7.2/8.3/8.8, MID 2004/22/EC |
| Operating Temperature | 0 °C to 60 °C |
| Power | 20–32 V DC (nominal 24 V DC), approx. 0.3 A |
Applications
The Flow-X/M is used extensively in oil and gas custody transfer metering stations, pipeline flow measurement, bidirectional flow applications, and ticket recalculation/fiscal reporting systems where regulatory compliance and high measurement accuracy are required, as well as in general industrial flow measurement applications needing multi-sensor flow computation.
Why Seven Star LLC
Seven Star LLC supplies genuine ABB Flow-X series flow computers and modules to customers across Oman and the GCC, and assists with configuring the correct enclosure type, I/O count, and calculation standard for a specific custody-transfer or process flow measurement application before ordering.
Request a Quote for ABB Flow-X/M modules Flowcomputer
Contact Seven Star LLC to request a quotation for the ABB Flow-X/M flow computer module. Our engineering team can help confirm the correct enclosure configuration and I/O requirements for your metering application, and support reliable delivery across Oman and the wider GCC region.
Ordering Notes
When requesting a quotation, please specify the required enclosure type (single-stream DIN-rail, panel-mount touchscreen, or multi-stream rack), the number and type of sensor inputs needed, and any regulatory calculation standard (AGA, API, GPA) applicable to your custody-transfer or fiscal metering application, so Seven Star LLC can confirm the correct Flow-X configuration for your project.
Related Products

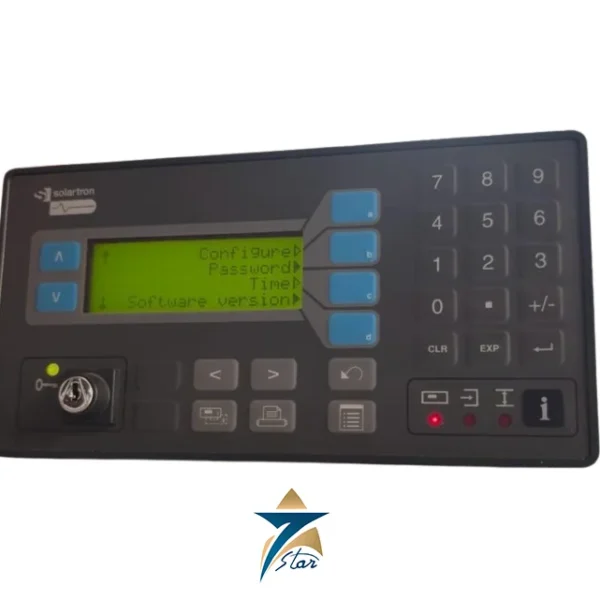

- Emerson 7955 Flow Computer

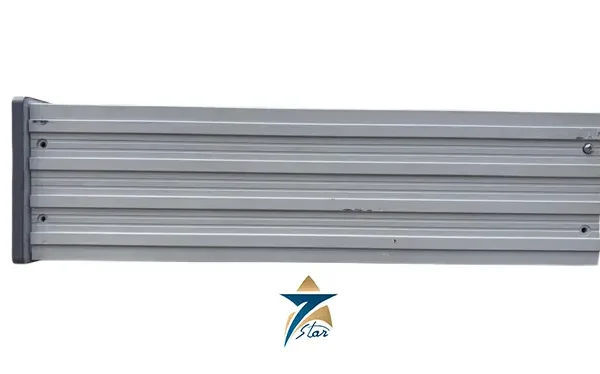

- Emerson 7958 (Solartron) – Klippon Flow Computer, PN 7958SAG34N9A
