Fluidwell F130 Two-Stage Batch Controller

Name: Fluidwell F130 Two-Stage Batch Controller – Datasheet
Brand: Fluidwell
SKU: F130

Field-mount batch controller with two-stage control and self-learning overrun correction

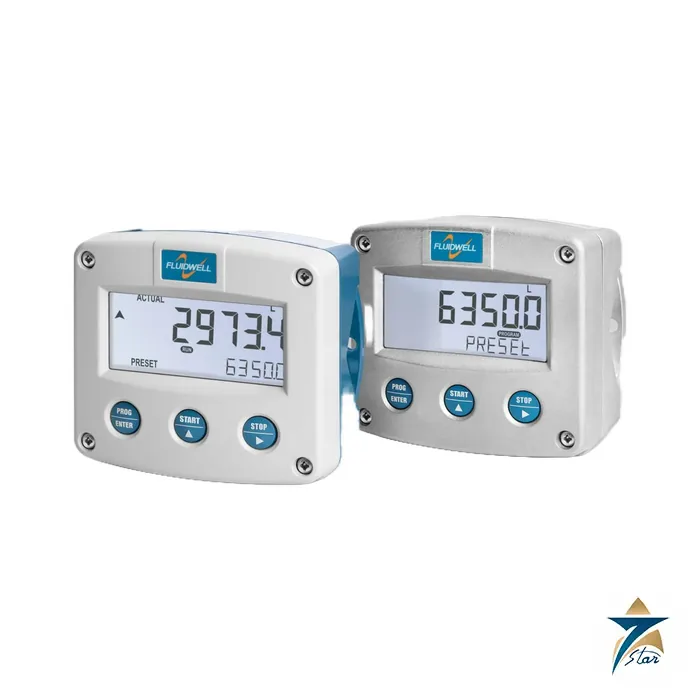

The Fluidwell F130 is a two-stage batch controller for repeating or one-off batches of liquid, measured by a pulse-output flow meter. It shows the preset value and the running or remaining batch quantity at the same time, learns the overrun after each batch to correct the next one, and raises a no-flow alarm with an automatic pause if the input signal stops. Fluidwell supplies it in a panel-mount GRP housing that converts to an IP67 / Type 4X field enclosure with a back case, and in robust aluminium and 316L stainless steel field enclosures; Intrinsically Safe versions carry ATEX and IECEx approval for gas and dust, and the unit works from -40 to +70 degC.

Technical specifications

Parameter	Specification
Function	Batch controller with two-stage control or one-stage control plus scaled pulse output
Flow meter input (type P)	Coil / sine wave (HI 20 mVpp or LO 80 mVpp), NPN, PNP, open collector, reed switch, Namur, active pulse 8.2, 12 and 24 V DC
Input frequency	0 Hz to 6 kHz; reed switch with low-pass filter up to 120 Hz
K-factor	0.000010 to 9,999,999 with variable decimal position
Remote control input (type IR)	Start, pause and stop via contact input, minimum pulse 100 ms
Digital outputs	OA: two active 24 V DC PNP, 50 mA each; OT: two passive NPN, 50 V DC / 300 mA; OR: two electro-mechanical relays, 230 V AC, 0.5 A (needs PF or PM); max. pulse frequency 500 Hz
Communication	Modbus ASCII / RTU; CB RS232, CH RS485 2-wire, CI RS485 4-wire, CT TTL (Intrinsically Safe); 1200 to 9600 baud, up to 255 addresses
Display	17 mm and 8 mm digits, 7-digit resettable total, 11-digit accumulated total; units L, m3, GAL, USGAL, kg, lb, bbl
Power options	PD 8-24 V AC / 8-30 V DC; PF 24 V AC/DC; PM 115-230 V AC; PX 8-30 V DC; PB lithium battery up to 5 years (needs PD or PX)
Sensor supply	1.2 / 3 / 8.2 / 12 / 24 V DC depending on power type
Enclosures	GRP panel or field mount; aluminium field mount 130 x 120 x 75 mm, 1.1 kg; extended aluminium 130 x 120 x 90 mm, 1.31 kg; 316L stainless steel 130 x 120 x 75 mm, 2.7 kg; IP67 / Type 4X
Hazardous area (type XI)	ATEX II 1 G Ex ia IIB/IIC T4 Ga; II 1 D Ex ia IIIC T200 100 degC Da; IECEx Ex ia IIC/IIB T4 Ga
Ambient temperature	-40 to +70 degC (dust zone 20: -40 to +50 degC)
Standards	EMC EN 61326-1; low voltage EN/IEC 61010-1; RoHS EN 50581

Ordering code structure

The model is built from F130 followed by input (P), communication (CB, CH, CI, CT or CX for none), enclosure, additional input and output codes, power type, battery option and Intrinsically Safe option XI. Examples in the datasheet are F130-P-CT-OT-PB-XI for a battery-powered Intrinsically Safe unit. Enclosure codes cover the GRP panel mount (HC), aluminium panel mount (HB), stainless panel mount (HSB), GRP field mount (HD to HQ), aluminium field mount (HA, HL to HZ), extended aluminium meter mount (HBM, HBO, HBU) and stainless field mount (HSM, HSO, HSU), each with its own cable entries.

Selection and what to confirm before ordering

Confirm the flow meter output type and frequency, the power available at the skid or truck, whether the valve or pump needs two control stages, the cable entry standard (M16/M20, PG9 or NPT) and the hazardous area classification. Intrinsically Safe versions need a certified supply and barrier arrangement as described in the certificate annex. Other Fluidwell instruments on this site include the F126-EG field mount flow computer; more are under Flow Computers.

Documents and quotation

The attached Fluidwell F130 datasheet covers features, input signals, enclosures, wiring examples, technical specifications and the full ordering table. Send the flow meter type, supply, enclosure and approval requirement for a quotation.

Fluidwell product series

Both listed units belong to the F-Series, the field mount indicators that Fluidwell offers in intrinsically safe versions. The F114 compares two flow signals, shows their ratio and totalizes. The F126-EG is a flow computer for gas that corrects the measured volume with line temperature and pressure. Fluidwell also makes the explosion-proof E-Series and the B, C, D and N series.
