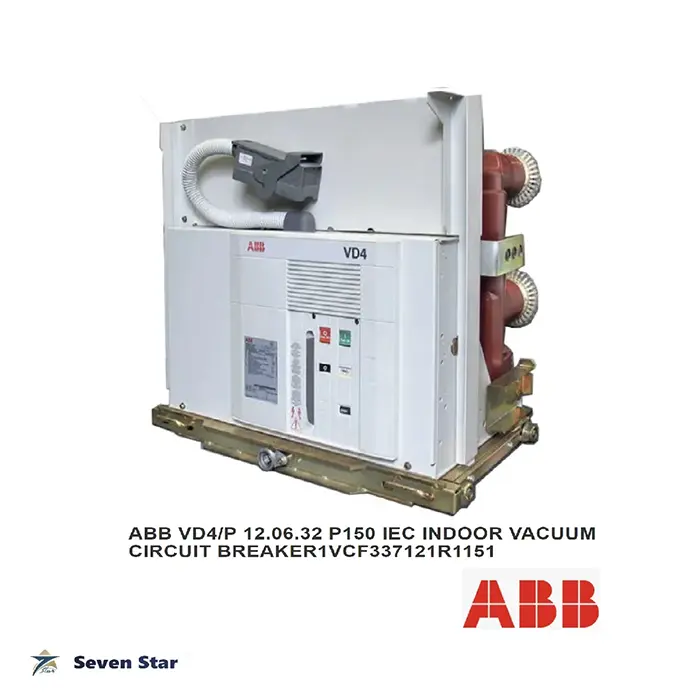

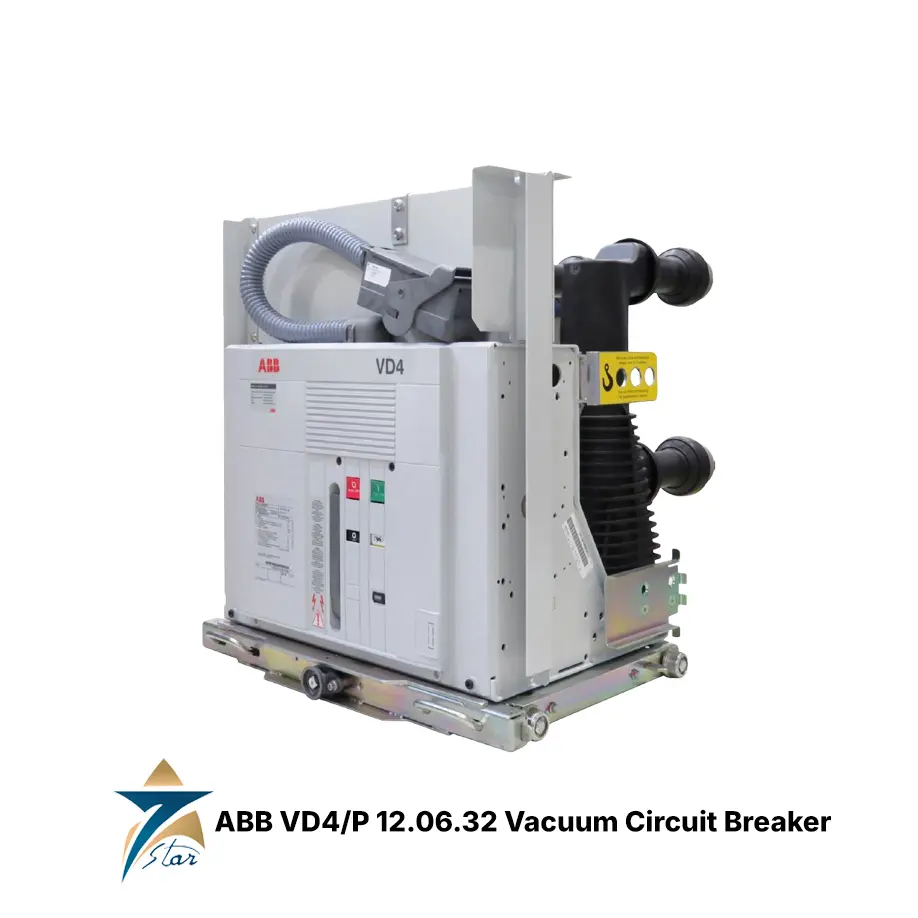

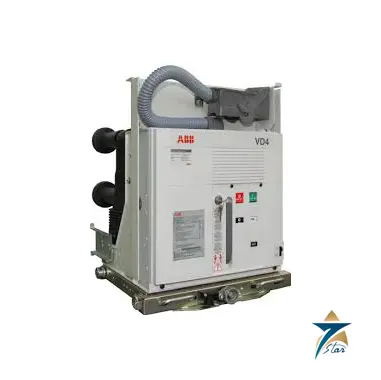

ABB VD4/P 12.06.32 Medium Voltage Vacuum Circuit Breaker – 12kV, 630A, 31.5kA

Overview

The ABB VD4/P 12.06.32 Medium Voltage Vacuum Circuit Breaker is a high-performance industrial protection device engineered for modern medium-voltage (MV) distribution systems. Built on ABB’s globally recognized VD4 vacuum technology platform, this breaker is designed to deliver long-term electrical reliability, enhanced protection capability, and extremely low maintenance in the harshest industrial environments.

This model uses ABB’s advanced vacuum interrupters embedded into resin-moulded poles, a patented construction that reinforces the mechanical strength, insulation integrity, and environmental resistance of the breaker. The encapsulated poles protect the vacuum interrupter from vibration, dust ingress, condensation, humidity, airborne particulates, and mechanical shock—ensuring consistent dielectric strength over decades of operation.

The VD4/P breaker is rated for 12kV, 630A, 31.5kA interrupting capacity, making it suitable for a wide range of MV applications including transformer substations, industrial feeders, oil & gas production sites, desalination plants, refineries, commercial MV rooms, and process-critical facilities requiring high uptime. Its robust characteristics ensure stable operation under full system stress, high short-circuit conditions, and rapid switching duties.

A core component of the breaker is ABB’s EL1 stored-energy spring operating mechanism, engineered for high-speed mechanical performance and repetitive switching without performance degradation. This mechanism delivers fast open/close cycles (O-0.3s-CO-15s-CO) independent of operator speed, ensuring reliable fault clearing under emergency conditions. The mechanism is fully motorized with auxiliary switches, under-voltage release, and 110VDC control supply to support intelligent automation and SCADA integration.

The vacuum interrupter design itself provides superior arc control. When contacts open, arc duration is extremely short and occurs at low voltage, resulting in minimal contact wear, reduced thermal stress, and extended breaker lifespan. Due to the absence of arc byproducts and oxidation (since contact materials are enclosed in vacuum), the interrupter remains clean throughout its service life and requires virtually no routine maintenance.

The VD4/P series is fully compliant with IEC 62271-100, ensuring global compatibility with modern MV switchgear and installation standards. It supports a wide range of ABB switchgear families and can be configured with dedicated accessories such as closing coils, shunt trip units, mechanical indicators, spring charging motors, auxiliary contacts, and interlocking systems.

Technical Specifications

Technical Performance Summary

• Rated Voltage: 12kV

• Rated Current: 630A

• Rated Breaking Capacity: 31.5kA

• Short-Circuit Making Current: 100kA

• Rated Short-Time Withstand Current: 40kA for 3s

• Operation Sequence: O-0.3s-CO-15s-CO

• Operating Mechanism: EL1 stored-energy spring type

• Control Supply: 110VDC

• Type: VCB (Vacuum Circuit Breaker), 3-Pole

• Part Number: VD4/Z-12.06.32

Construction, Material Engineering & Dielectric Performance

Vacuum Interrupter Technology

• Ultra-high dielectric strength even at small contact gaps

• Vacuum chamber prevents oxidation & contamination

• Low arc energy = significantly reduced contact erosion

• Faster recovery voltage & minimal arcing time

Resin-Embedded Poles

• Enhanced mechanical durability

• Environmental isolation from dust, humidity, condensation

• High insulation stability over full operating life

• Resistant to industrial chemical atmospheres

Contacts & Arc Control

• Specially shaped contact geometry ensures directional arc

• Low voltage arc minimizes thermal stress on pole unit

• Long electrical endurance & extended service cycles

Operating Mechanism – EL1 Stored-Energy System

• Motorized spring charging

• Rapid independent open/close operations

• Free-trip mechanism ensures fail-safe interruption

• Low-speed contact movement reduces wear

• Designed for frequent operations & industrial duty cycles

• Supports a wide variety of custom-fit accessories

The EL1 mechanism is optimized for precision, reliability, and uniform switching characteristics, eliminating user-dependent variations and reducing maintenance downtime.

Application Areas

• Utility substations

• Industrial distribution networks

• Oil & gas production & refining sites

• Chemical & petrochemical plants

• Large commercial buildings

• Water treatment & desalination

• Mining electrical systems

• Motor protection centers

• Capacitor bank / cable feeder protection

Operational Advantages

1. Extremely Long Lifespan

Due to ultra-low arcing energy, vacuum interrupters remain mechanically and electrically stable for decades.

2. Minimal Maintenance

No arc byproducts, no oxidation, no gas refilling, and no complex sealing arrangements.

3. Highest Reliability for MV Networks

The resin-embedded pole system ensures dielectric performance even under challenging industrial conditions.

4. Fast Fault Clearing

High mechanical speed and predictable arc extinction result in fast protective response.

5. Compatibility with Modern Automation Systems

Fully motorized, auxiliary contacts included, UVR, SCADA-ready control interface.

Sequence of Operation

Rated operating sequence:

O-0.3s-CO-15s-CO

Designed for repetitive switching under severe conditions.

Compliance & Certifications

• IEC 62271-100 (circuit-breaker standard)

• High-voltage test compliance

• Internal ABB quality assurance standards

• Mechanical endurance tested on industrial duty cycles

Request a Quote for ABB VD4/P 12.06.32 Medium Voltage Vacuum Circuit Breaker – 12kV, 630A, 31.5kA

For genuine ABB VD4/P vacuum circuit breakers, spare parts, technical support, or project-level MV distribution solutions, contact Seven Star LLC. We supply ABB medium-voltage protection equipment across Oman and the Middle East with full compliance and guaranteed authenticity.

Reading the VD4/P 12.06.32 Type Designation

ABB builds the VD4 type designation from the breaker’s main ratings, which makes it easy to check a replacement against an existing panel:

• VD4 – the vacuum circuit breaker family.
• /P – the withdrawable execution, mounted on a truck for use in metal-clad switchgear panels.
• 12 – rated voltage, 12 kV.
• 06 – rated normal current, 630 A.
• 32 – rated short-circuit breaking current, 31.5 kA.

The ratings alone are not enough for a direct swap. Pole centre distance, truck width, the secondary plug and wiring diagram, the control voltage of the closing and opening coils and the motor, and any interlocks all have to match the panel. The breaker’s serial number and rating plate data are the most reliable reference when ordering.

Installation and Commissioning Checks

• Inspect the breaker on receipt for transport damage and check the rating plate against the switchgear single-line diagram.
• Rack the truck between test and service positions manually to confirm alignment of the isolating contacts and correct operation of the mechanical interlocks.
• In the test position, perform electrical close and trip operations, spring charging by the motor, and checks of the auxiliary contacts and undervoltage release.
• Measure insulation resistance and main circuit contact resistance, and record the values as a baseline.
• Confirm protection relay trip and close circuits end to end before energising the feeder.

Maintenance and Troubleshooting

Vacuum breakers need far less attention than older oil or SF₆ designs, but the operating mechanism still needs periodic inspection and lubrication according to ABB’s instructions and the number of operations. Typical field problems include a spring that will not charge (check the motor supply, limit switch and fuse), a breaker that will not close (check the closing coil voltage, the anti-pumping relay and interlocks, and whether the truck is fully in position), and slow or failed tripping (check the shunt trip coil and the trip circuit supervision). Vacuum interrupter integrity is verified with a power-frequency withstand test across the open contacts during scheduled maintenance.

Applications in Oman and the GCC

Breakers in this rating are widely used on 11 kV distribution in oil and gas facilities, refineries, desalination and water pumping stations, industrial estates and utility substations, feeding transformers, motors and outgoing cables. High ambient temperature and dust make correct panel ventilation and clean, dry switchrooms particularly important in the region.

Sourcing Through Seven Star LLC

Send us the rating plate details and the panel type, and we will confirm that the VD4/P matches your switchgear and supply genuine ABB equipment with manufacturer documentation, as well as matching spare coils, motors and auxiliary components.
