Pfannenberg PY X-MA-05 PYRA Beacon Sounder

Name: Pfannenberg PY X-MA-05 PYRA Beacon Sounder – Datasheet & Quote
Brand: Pfannenberg
SKU: PY X-MA-05

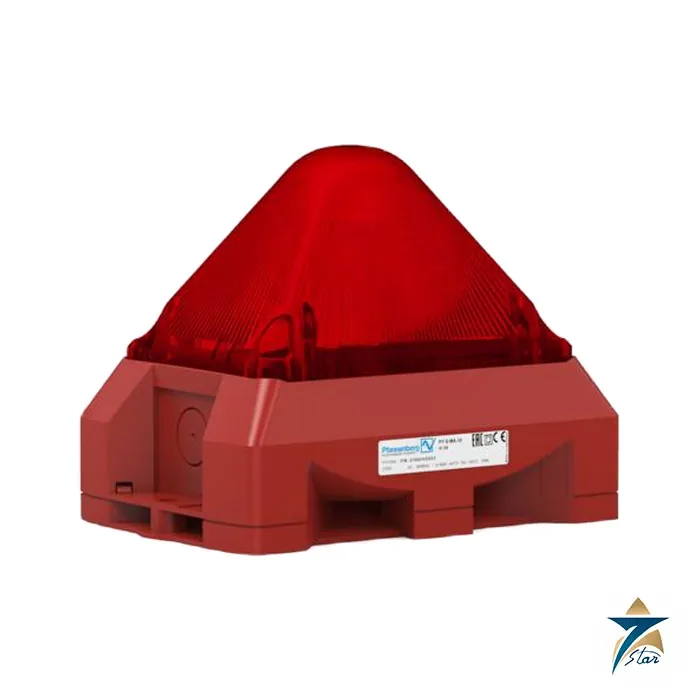

A PYRA xenon beacon with sounder and selectable flash rates

The Pfannenberg PY X-MA-05 is a PYRA flashing light sounder: a pyramid-shaped xenon beacon with an integrated sounder, 101 dB(A) and 5 J of flash energy (the PY X-MA-10 has 10 J). Pfannenberg highlights four flash rates selectable via a DIP switch (0.1, 0.5, 0.75 and 1 Hz), constant-current regulation on the 24 V AC/DC version to avoid load fluctuations, integrated inrush-current limitation and undervoltage detection, full synchronisation on multi-light systems, and separate control of the light and the sounder.

It installs either with external lugs or internal holes, protected IP66 and impact-proof, and operates from -40 °C to +55 °C. The product page lists UL approval and EAC.

Technical specifications

Parameter	PY X-MA-05	PY X-MA-10
Sound pressure level	101 dB(A); 99 dB(A) at DIN tone	101 dB(A); 99 dB(A) at DIN tone
Flash energy and rates	5 J at 0.1, 0.5, 0.75 or 1 Hz	10 J at 0.1, 0.5, 0.75 or 1 Hz
Light intensity (clear lens)	56 cd	149 cd
Alarm tones	8	8
Sound level reduction	Maximum -20 dB via potentiometer	Maximum -20 dB via potentiometer
Weight	AC 620 g; AC/DC 560 g	AC 660 g; AC/DC 580 g

Common data: operating range 187-255 V AC, 90-135 V AC; the 24 V version AC 18-30 V or DC 10-57 V (PY X-MA-10: DC 10-57 V); operating temperature -40 °C to +55 °C; storage -40 °C to +70 °C; relative humidity 90%; IP66; protection class II; base PC/ABS in RAL 3000 or RAL 7035; polycarbonate lens; 2 x M20 on the side and 1 x M20 at the bottom; 6 to 13 mm cable grommet; light emission still 70% after 8,000,000 flashes.

Ordering code and article numbers

The PY X-MA-05 base number is 21554. The next digits give the voltage group (10 for 230 V AC, 15 for 115 V AC, 81 for 24 V AC/DC), a lens digit (1 clear, 3 yellow, 4 amber, 5 red) and a housing suffix (000 red housing, 055 grey housing). The PY X-MA-10 base number is 21555.

Lens	230 V AC	24 V AC/DC
Clear	21554101000	21554811000
Yellow	21554103000	21554813000
Red	21554105000	21554815000

Listed accessories include a surface gasket, locking elements, tamper-proof sealing and a panel mounting kit. Check the 115 V and amber numbers on the product sheet before ordering.

Selecting the unit

Select the PY X-MA-05 where a visible beacon with a modest sounder is enough, and the 10 J version for longer viewing distance. Where louder sound is needed, move to the PATROL PA X series. Choose lens colour for the meaning of the signal, since yellow, amber and red give very different coverage figures in Pfannenberg’s 3D coverage tool.

Documents and quotation

The attached Pfannenberg product sheet covers the PY X-MA-05 and PY X-MA-10. Confirm the final article number, voltage, lens colour, housing colour, tone and approval requirement before ordering, because the approvals apply to specific versions. For a quotation, send the article number or the full version, quantity, supply voltage and the project specification. Browse more Fire & Gas Detectors on this site.

Pfannenberg signaling range

The signaling range covers PATROL and PYRA combined sounders and flashing lights, PROTECT sounders for hazardous areas, and INTENSE modular signal towers. PATROL PA X units are offered from 105 dB(A) to 122 dB(A), and the PRO 10-Ex sounder is specified for zone 2 and zone 22 explosive atmospheres with Ex ec and Ex tc protection.

Requesting a quote for Pfannenberg devices

Send the article number or the full device designation, such as PA X 1-05, together with the supply voltage, lens colour, housing colour and any approval the project requires, for example EN 54-3 or an Ex certificate. Pfannenberg approvals apply to specific versions, so the exact article number is needed to confirm them.
