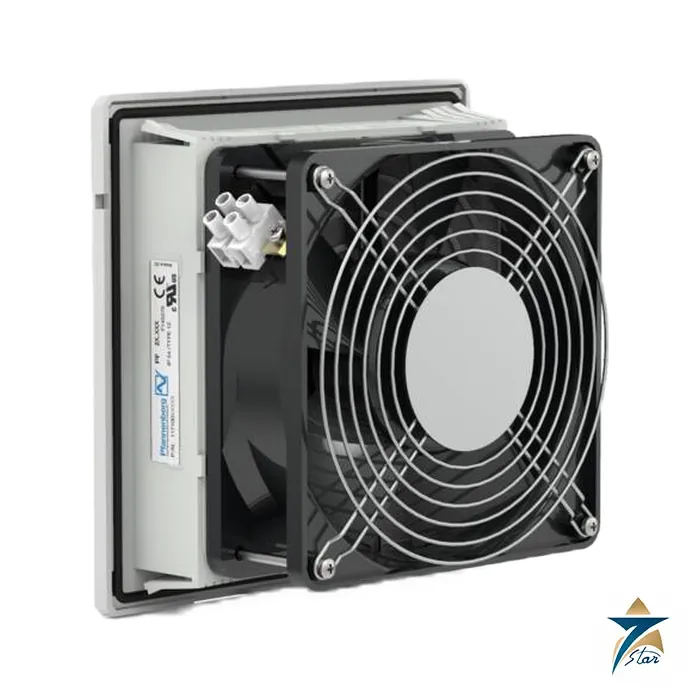

Pfannenberg PF 22.000 DC Filterfan

Name: Pfannenberg PF 22.000 DC Filterfan – Datasheet & Quote
Brand: Pfannenberg
SKU: PF 22.000

A compact filterfan for small enclosures and hot spots

The Pfannenberg PF 22.000 is an installation-size-2 filterfan: a filtered-air fan that is clipped into a cut-out in the enclosure wall and blows ambient air through a filter mat into the cabinet, with the warm air leaving through a separate exhaust filter such as the PFA 20.000. With up to 61 m³/h of free air flow on DC and 70 m³/h on AC at 60 Hz it suits small control boxes, junction boxes and sensor enclosures where the heat load is modest.

The unit is available in IP 54 with a standard filter and in IP 55 with a fluted filter, both with NEMA type 12 per UL 50, and the DC version covered here runs on 12, 24 or 48 V, which makes it easy to power from a machine or a battery system. Compared with a cooling unit, a filterfan has no refrigerant circuit and very low power consumption, but it can only cool to the ambient temperature and is only suitable where the outside air is cooler than the allowed enclosure temperature.

Technical specifications

Parameter	12 V DC	24 V DC	48 V DC
Rated voltage (DC)	12 V	24 V	48 V
Article no., IP 54	11622851055	11622801055	11622701055
Article no., IP 55	11622853055	11622803055	11622703055
Current consumption	0.42 A	0.21 A	0.1 A

Parameter	Specification
Unimpeded air flow	IP 54: 61 m³/h; IP 55: 56 m³/h
Air flow with exhaust filter	IP 54: 44 m³/h; IP 55: 40 m³/h
Power consumption / noise level	5 W; 44 dB(A) to EN ISO 3741
Weight / connection	0.44 kg; 2-core cable, 310 mm; fuse 6 A
System of protection	IP 54 with standard filter and IP 55 with fluted filter, both NEMA type 12 per UL 50
Filtration efficiency / mat class	IP 54: 88 %; IP 55: 91 %; class G4 to EN 779
Duty cycle / bearing	100 %; ball bearing
Service life L10 at +40 °C	62,500 h
Temperature range	-40 to +55 °C
Housing	Injection-moulded thermoplastic, self-extinguishing UL 94 V-0; the IP 55 version is additionally UV-resistant; RAL 7035

Accessories and sizing

The sheet lists the exhaust filter in grey (11720001055, single piece) and black (11720001050), a 42-piece packing of exhaust filters for faster assembly (11720001411), spare filter mats in IP 54 (18611600030) and IP 55 (18611600034), a thermostat (17121000000), a hygrostat (17207000000) and a stainless steel rain hood (18102000014). The airflow in combination with an exhaust filter is lower, 44 m³/h in IP 54 and 40 m³/h in IP 55, and that is the figure to use when sizing the installation.

The pages for the PF family also list AC versions on 230 V and 115 V with clamp connection, for example 11622101055 and 11622151055, with their own product sheet, and a MEK version with a mounting extension for 3 to 5 mm wall thickness.

Selection and what to confirm before ordering

A filterfan is sized from the heat that must be removed and the permissible temperature rise over ambient. As a general engineering relation, the required airflow in m³/h is roughly 3.1 times the heat loss in watts divided by the temperature rise in kelvin, so 20 W of loss and a 10 K rise needs about 6 m³/h before accounting for filter and exhaust resistance. Compare the result with the in-combination airflow above and keep a reserve. Use the IP 55 version where jets of dust or water may reach the filter face, and check the temperature range of the site: the cabinet can never be cooler than the air outside.

Confirm the voltage (12, 24 or 48 V DC for this sheet), protection class, whether an exhaust filter is needed, and whether the wall thickness requires the MEK version. Cut-out compatibility with installation size 2 of the third generation is stated by the manufacturer.

How the Pfannenberg PF 22.000 works

The fan draws outside air through a filter mat and blows it into the enclosure. The warm air inside is pushed out through a second filter. The air flow carries heat out of the cabinet without a refrigerant circuit.

Where the PF 22.000 is used

Small control boxes
Junction boxes
Sensor enclosures
Battery powered systems
Machine mounted cabinets

Selection checklist for the PF 22.000

Supply voltage
Heat load
Ambient air temperature
Air flow needed
Filter type
Exhaust filter
Cut-out size
Noise limit

Installation, commissioning and maintenance notes for the PF 22.000

Clip the filterfan into the cut-out and fit an exhaust filter at a separate opening. Wire the two-core cable to the DC supply. Check the filter mat and clean or replace it at regular intervals.

Requesting a quotation for the Pfannenberg PF 22.000

Please send the supply voltage, the enclosure size and the ambient temperature. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

PF 22.000 device type

It is an installation size 2 filterfan.

PF 22.000 maker

It is made by Pfannenberg.

PF 22.000 mounting

It clips into a cut-out in the enclosure wall.

PF 22.000 exhaust filter

The exhaust filter is the PFA 20.000.

PF 22.000 air flow

Free air flow is up to 61 m3/h on DC.

PF 22.000 air flow with exhaust filter

Air flow with an exhaust filter is 44 m3/h.

PF 22.000 supply voltages

The DC version runs on 12, 24 or 48 V.

PF 22.000 current

Current is 0.42 A at 12 V, 0.21 A at 24 V and 0.1 A at 48 V.

PF 22.000 power consumption

Power consumption is 5 W.

PF 22.000 noise level

The noise level is 44 dB(A).

PF 22.000 weight

It weighs 0.44 kg.

PF 22.000 connection

It has a two-core cable of 310 mm.

PF 22.000 fuse

The fuse is 6 A.

PF 22.000 filter variants

It comes with a standard filter or a fluted filter.

PF 22.000 duty cycle

The duty cycle is 100 percent.

PF 22.000 bearing

The fan has a ball bearing.

PF 22.000 service life

Service life is 62,500 hours at 40 degrees C.

PF 22.000 temperature range

The temperature range is minus 40 to plus 55 degrees C.

PF 22.000 housing

The housing is injection-moulded thermoplastic.

PF 22.000 colour

The colour is RAL 7035.

PF 22.000 limits

It can only cool to the ambient temperature.

PF 22.000 accessories

Accessories include a thermostat, a hygrostat and spare filter mats.

Filterfan records for the PF 22.000

Record the supply voltage, the filter type and the date of each filter change.

Choosing the right PF 22.000 voltage

Choose the 12, 24 or 48 V version to match the supply on site.

Documents and quotation

The Pfannenberg PF 22.000 with cable and PFA 20.000 product sheet is attached to this page and is the manufacturer’s own document, not a Seven Star summary. It also lists the airflow and cooling-capacity curves. Similar items are in Cooling.

State the DC voltage, the IP class and the quantity of exhaust filters. Seven Star LLC, an independent supplier in Muscat, quotes the PF 22.000 and PFA 20.000 against your application data; send the enclosure size, ambient temperature, supply voltage and quantity so the correct variant and article number can be confirmed before an offer is issued.

Pfannenberg signaling range

The signaling range covers PATROL and PYRA combined sounders and flashing lights, PROTECT sounders for hazardous areas, and INTENSE modular signal towers. PATROL PA X units are offered from 105 dB(A) to 122 dB(A), and the PRO 10-Ex sounder is specified for zone 2 and zone 22 explosive atmospheres with Ex ec and Ex tc protection.

Requesting a quote for Pfannenberg devices

Send the article number or the full device designation, such as PA X 1-05, together with the supply voltage, lens colour, housing colour and any approval the project requires, for example EN 54-3 or an Ex certificate. Pfannenberg approvals apply to specific versions, so the exact article number is needed to confirm them.
