Pfannenberg PA X 1-05 PATROL Sounder Beacon

Name: Pfannenberg PA X 1-05 PATROL Sounder Beacon – Datasheet & Quote
Brand: Pfannenberg
SKU: PA X 1-05

A compact fire-alarm sounder and beacon for harsh locations

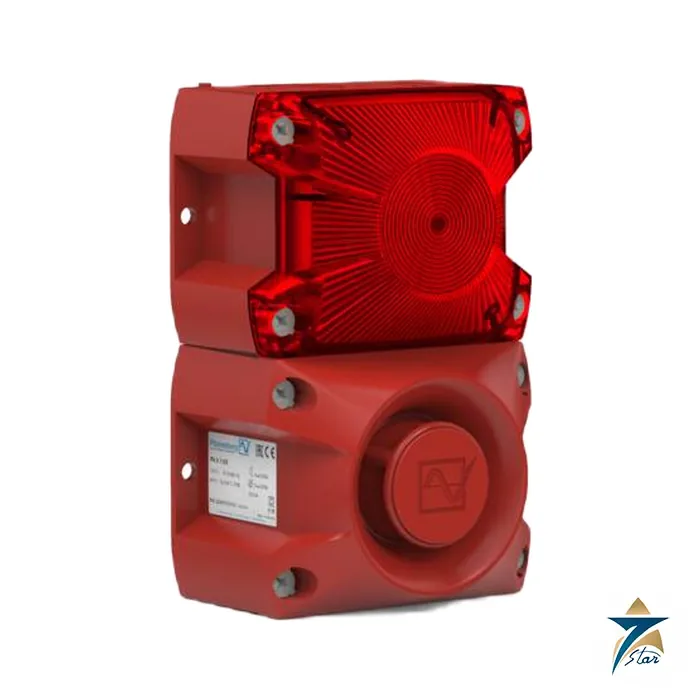

The Pfannenberg PA X 1-05 is the smallest PATROL flashing sounder: a combined sounder and xenon flashing light that delivers up to 105 dB(A) and 5 J of flash energy in an impact-proof IP66 housing. Pfannenberg describes PATROL as its newer generation of sounder and flashing-light combinations, with the sounder and the light pre-wired from the factory and a design in which incorrect installation is virtually impossible. It operates from -40 °C to +55 °C, which suits outdoor and industrial installations as well as buildings.

Approvals depend on the version. Pfannenberg marks the 24 V DC versions with clear or red lens (housing red or grey) as having EN 54-3 and EN 54-23 approval, and lists VdS, UL, CNBOP, DNV, MED, MER and EAC documents in the download section of the product page. Always confirm that the article number you order is the approved version.

Technical specifications

Parameter	Specification
Manufacturer	Pfannenberg
Series / model	PATROL PA X 1-05
Function	Sounder with xenon flashing light, pre-wired
Rated voltage	230 V AC (187 to 255 V), 115 V AC (90 to 135 V), 24 V DC (18 to 30 V); sheet also lists 40 to 60 V, 18 to 30 V and 12 to 15 V DC ranges
Nominal current	65-70 mA at 230 V AC; 110-130 mA at 115 V AC; 315-365 mA at 24 V DC
Sound pressure level	105 dB(A); 104 dB(A) at DIN tone
Sound level reduction	Maximum -12 dB via potentiometer
Alarm tones	80 tones; 4 externally selectable
Flash energy and rate	5 J at 1 Hz = 60 flashes/min
Light intensity (DIN 5037, clear lens)	50 cd; maximum viewing distance 164 m
Operating temperature	-40 °C to +55 °C
Protection	IP66, IK08, protection class II, NEMA 4/4X noted on the product page
Light source life	Light emission still 70% after 8,000,000 flashes
Material	Sounder PC/ABS blend (RAL 3000 flame red, RAL 7035 light grey, RAL 9003 signal white); lens polycarbonate
Cable entry	3 x M20 knock-outs on the side, 1 on the back; grommet for 6 to 13 mm cable; terminals 2.5 mm2
Weight	AC 725 g; DC 560 g

Ordering code and article numbers

The article numbers in Pfannenberg’s ordering table follow a readable pattern. For the PA X 1-05 the base is 23311, followed by a voltage group (10 for 230 V AC, 15 for 115 V AC, 80 for 24 V DC), a lens digit (1 clear, 3 yellow, 4 amber, 5 red) and a housing suffix (000 red housing, 055 grey housing). Verify the final number against the product sheet.

Lens	230 V AC	115 V AC	24 V DC
Clear	23311101000	23311151000	23311801000 (EN 54-3 and EN 54-23)
Yellow	23311103000	23311153000	23311803000
Amber	23311104000	23311154000	23311804000
Red	23311105000	23311155000	23311805000 (EN 54-3 and EN 54-23)

Grey housing versions use the same numbers ending 055. Accessories listed: enclosure fitting 28300000003, surface gasket 28300000004, tamper-proof sealing 28300000002 and a panel mounting kit.

Selection notes

Pick the PA X 1-05 for corridors, plant rooms and small process areas where a compact unit is enough. Use the larger PA X 5, PA X 10 and PA X 20 versions where higher sound output or longer viewing distance is needed. Pfannenberg provides the Pfannenberg Sizing Software and a 3D coverage tool to determine how many devices an area needs, so use them rather than assuming one device per room.

Documents and quotation

The attached Pfannenberg product sheet covers the PA X 1-05, PA X 5-05 and PA X 5-10. Confirm the final article number, voltage, lens colour, housing colour, tone and approval requirement before ordering, because the approvals apply to specific versions. For a quotation, send the article number or the full version, quantity, supply voltage and the project specification. Browse more Fire & Gas Detectors on this site.

Pfannenberg signaling range

The signaling range covers PATROL and PYRA combined sounders and flashing lights, PROTECT sounders for hazardous areas, and INTENSE modular signal towers. PATROL PA X units are offered from 105 dB(A) to 122 dB(A), and the PRO 10-Ex sounder is specified for zone 2 and zone 22 explosive atmospheres with Ex ec and Ex tc protection.

Requesting a quote for Pfannenberg devices

Send the article number or the full device designation, such as PA X 1-05, together with the supply voltage, lens colour, housing colour and any approval the project requires, for example EN 54-3 or an Ex certificate. Pfannenberg approvals apply to specific versions, so the exact article number is needed to confirm them.
