Brand: Pfannenberg

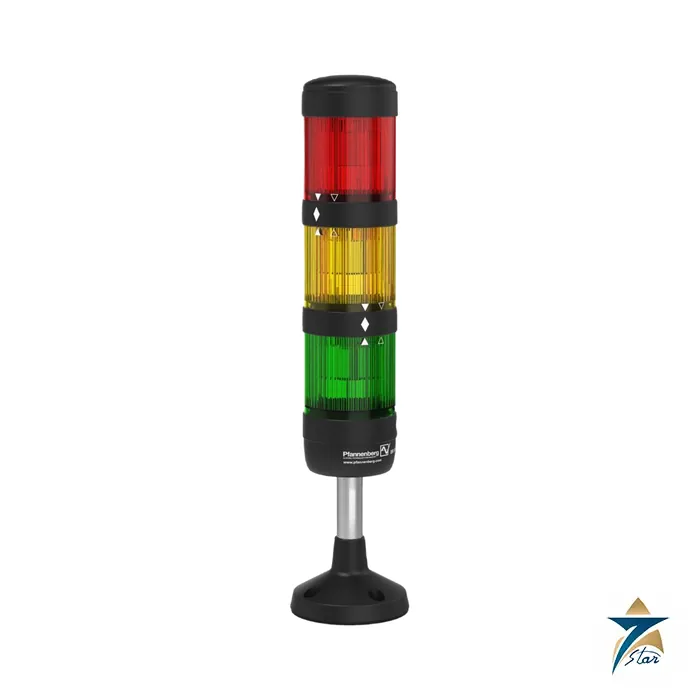

Pfannenberg INTENSE BR 50 Modular LED Signal Tower
Description
A slim modular signal tower for machine and process status
The Pfannenberg INTENSE BR 50 is a modular signal tower with a diameter of only 54 mm. Pfannenberg describes it as ultra bright, with up to five modules combined in any order: continuous or blinking LED light modules, xenon flashing light modules or an audible module. The standard LED modules supply continuous light; replaceable LEDs determine whether a module shines continuously or blinks. Modules come as fully coloured or crystal-clear versions with coloured LEDs.
It mounts on a tubular stand with plinth, on a tube, on a bracket or directly, with a ready-made M12 connector variant available. A separate monitored-LED module supports sensitive applications where a malfunction must be reported to an external safety system, and an IO-Link module integrates the tower into IO-Link networks. The tower is for indoor and outdoor use with IP54 protection (IP65 optional) from -25 °C to +50 °C.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Pfannenberg |
| Series / model | INTENSE BR 50 signal tower |
| Diameter | 54 mm |
| Modules | Up to 5 (customisable order and colour); base and end module 1 each |
| Operating temperature | -25 °C to +50 °C |
| Protection (EN 60529) | IP54; IP65 optional |
| Material | Lens polycarbonate (UV-resistant); base ABS |
| LED module supply | 10-30 V AC/DC (24 V) or 220-240 V AC |
| Standard LED module light intensity | Yellow 27 cd, amber 15 cd, red 5 cd, green 9 cd, blue 3 cd, crystal-clear white 23 cd |
| Flashing light module | 24 V AC/DC: 1 J, about 1 Hz; 230 V AC: 0.6 J; light emission still 70% after 8 million flashes |
| Sounder module | 24 V DC: 96 dB(A), reducible by 20 dB, 32 tones; 230 V AC: 87 dB(A), reducible by 10 dB, 10 tones |
| Monitored LED module | 2 x 8 LED, 24 V DC, max. 3 modules; alarm output max. 230 V / 80 mA |
| IO-Link module | IEC 61131-9, revision 1.1.4; total output current 1300 mA |
| Approvals shown | UL; I/O-Link option |
Article numbers for building a tower
| Item | Article number |
|---|---|
| Base / end module | 28250010000 |
| Easy module, continuous light, fully coloured red | 28250376055 |
| Easy module, continuous light, fully coloured green | 28250376066 |
| Easy module, continuous light, fully coloured yellow | 28250376033 |
| Flashing light module, red, 24 V AC/DC | 28250078050 |
| Sounder module, 24 V DC | 28250818000 |
| Sounder module, 230 V AC | 28250081000 |
| IO-Link module M12 incl. base | 28250988000 |
| Pre-configured 3-stage (green, yellow, red), stand 100 mm, IP65 | 22118300009 |
Pre-configured towers listed by Pfannenberg also include a 2-stage green-red tower (2211820000), a 3-stage green-red-blue tower (22118300010) and a direct-mounted 3-stage tower (22138300002). Article numbers are as printed in the sheet. The sheet also gives a worked ordering example for a five-stage tower, with the mounting stand (100 mm) and the seal as separate items.
Configuration notes
Define the stack from the bottom up: base module, sounder or flashing module as needed, then the continuous light modules, then the end module. Choose 24 V or 230 V modules consistently. Select the LEDs for the signalling mode and the supply voltage, and remember that the LEDs are only intended for BR 50 modules. Confirm the mounting method, IP rating and any monitoring requirement before ordering.
Documents and quotation
The attached Pfannenberg product sheet covers the INTENSE BR 50. Confirm the final article number, voltage, lens colour, housing colour, tone and approval requirement before ordering, because the approvals apply to specific versions. For a quotation, send the article number or the full version, quantity, supply voltage and the project specification. Browse more Fire & Gas Detectors on this site.
Datasheets & Documents
- Datasheet Pfannenberg INTENSE BR 50 signal tower product sheet (EN) Download
Reviews (0)
About brand
Pfannenberg is a Hamburg-based family company that makes signaling devices and thermal management products for industrial use. Otto Pfannenberg founded the company in 1954, and its history includes the invention of the filter-fan in 1958 and of the electronic flashing beacon in 1962.
Pfannenberg signaling range
The signaling range covers PATROL and PYRA combined sounders and flashing lights, PROTECT sounders for hazardous areas, and INTENSE modular signal towers. PATROL PA X units are offered from 105 dB(A) to 122 dB(A), and the PRO 10-Ex sounder is specified for zone 2 and zone 22 explosive atmospheres with Ex ec and Ex tc protection.
Requesting a quote for Pfannenberg devices
Send the article number or the full device designation, such as PA X 1-05, together with the supply voltage, lens colour, housing colour and any approval the project requires, for example EN 54-3 or an Ex certificate. Pfannenberg approvals apply to specific versions, so the exact article number is needed to confirm them.
Related products
Frequently Asked Questions
What is the Pfannenberg INTENSE BR 50?
A slim modular signal tower, 54 mm in diameter, with up to five LED, flashing or audible modules.
What protection class does it have?
IP54, with IP65 available as an option.
What voltages are offered?
LED modules for 10 to 30 V AC/DC or 220 to 240 V AC; sounder modules for 24 V DC or 230 V AC.
Can it be connected to IO-Link?
Yes, with a separate IO-Link module that can be combined with LED, flash and sounder modules.
How is a tower mounted?
On a tubular stand with plinth, on a tube, on a bracket or directly, with an M12 connector variant.
