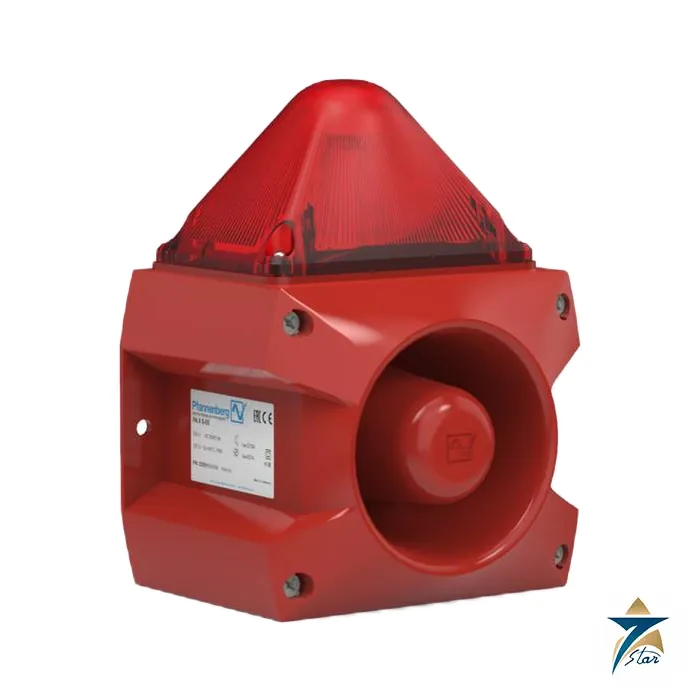

Pfannenberg PA X 5-05 PATROL Flashing Sounder 107 dB(A)

A mid-range PATROL sounder and flashing light with 107 dB(A) output

The Pfannenberg PA X 5-05 and PA X 5-10 are PATROL flashing sounders with a higher output than the PA X 1-05: up to 107 dB(A) with 5 J (5-05) or 10 J (5-10) of xenon flash energy. They share the PATROL concept of a factory pre-wired sounder and light in an impact-proof housing with IP66 protection, and a mounting design in which installation errors are hard to make. The 5-10 reaches a maximum viewing distance of 283 m with a clear lens, compared with 173 m for the 5-05.

On the product page Pfannenberg lists UL approval, EAC, EAC 043/2017 fire alarm, and DNV, MED and MER certificates for the family. The EN 54 approval marked on the PA X 1-05 is not marked for the PA X 5 in the product sheet, so do not assume it carries across; if an EN 54 sounder is specified, check the approval on the exact article number.

Technical specifications

Common data: operating range 187-255 V AC, 90-135 V AC, 18-30 V DC (further DC ranges 40-60 V and 12-15 V); operating temperature -40 °C to +55 °C; relative humidity 90%; IP66; protection class II; PC/ABS blend sounder housing in RAL 3000 or RAL 7035 with a polycarbonate lens; 3 x M20 knock-outs on the side and one on the back; light emission still 70% after 8,000,000 flashes.

Ordering code and article numbers

The PA X 5-05 base number is 23351 and follows the same pattern as the PA X 1-05: voltage group (10 for 230 V AC, 15 for 115 V AC, 80 for 24 V DC), lens digit (1 clear, 3 yellow, 4 amber, 5 red) and housing suffix (000 red, 055 grey).

The listed accessories are the enclosure fitting 28300000003, the surface gasket 28300000005 (PA X 5), the tamper-proof sealing 28300000002 and a panel mounting kit. Confirm the PA X 5-10 article numbers on the sheet.

Choosing between PA X 1, 5, 10 and 20

Select the sound output and flash energy from the room size and ambient noise. The PA X 1-05 gives 105 dB(A), the PA X 5 107 dB(A), the PA X 10 117 dB(A) and the PA X 20 122 dB(A). Visual coverage depends on lens colour, and Pfannenberg gives the covered volume for each colour and alarm level in its 3D coverage tool.

Documents and quotation

The attached Pfannenberg product sheet covers the PA X 1-05, PA X 5-05 and PA X 5-10. Confirm the final article number, voltage, lens colour, housing colour, tone and approval requirement before ordering, because the approvals apply to specific versions. For a quotation, send the article number or the full version, quantity, supply voltage and the project specification. Browse more Fire & Gas Detectors on this site.
