GYS TITAN 400 DC TIG Welder 013520

Name: GYS TITAN 400 DC TIG Welder 013520 | Seven Star LLC
Brand: GYS
SKU: 013520

400 A DC TIG power source for pipework and stainless fabrication

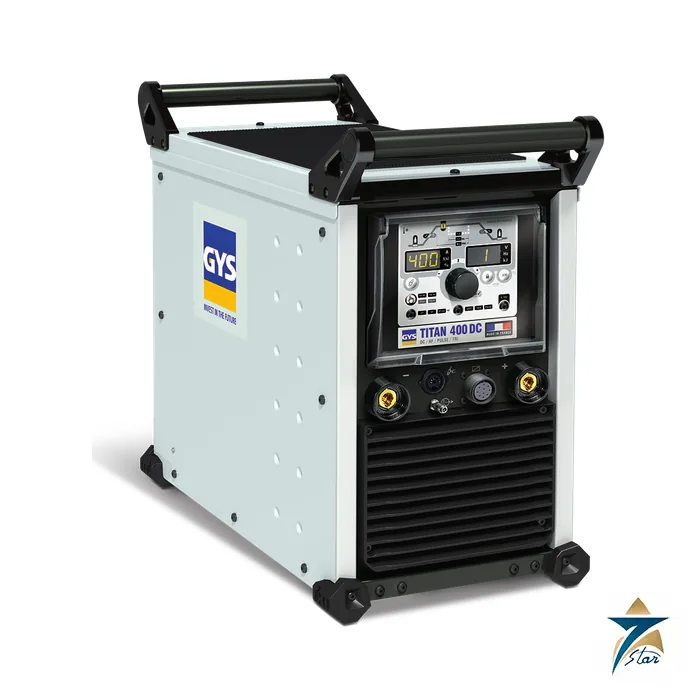

The GYS TITAN 400 DC (reference 013520) is a three-phase DC TIG and MMA inverter with high-frequency arc ignition. GYS designed it for demanding TIG work on high-alloy metals, citing pipework, tubular construction and stainless steel plate fabrication as typical uses. Its duty cycle of 400 A at 60% and 360 A at 100% supports long welds on thick sections, and it also welds coated rutile, basic and cellulosic electrodes up to 6 mm diameter.

The interface is built around a large central knob that can be used with welding gloves, with all TIG parameters reachable from one control. The keypad can be locked to prevent unwanted changes, and the cooling fan is managed to reduce noise, dust intake and idle consumption (35 W off arc).

Technical specifications

Parameter	Specification
Manufacturer	GYS
Model / reference	TITAN 400 DC / 013520 (supplied without accessories)
Mains supply	400 V three-phase, 50/60 Hz
Mains fuse	32 A
TIG current range	3 A to 400 A
MMA current range	5 A to 400 A; electrodes up to 6 mm
Pulse frequency	0.1 Hz to 2500 Hz
Duty cycle at 40 °C (EN 60974-1)	400 A at 60%; 360 A at 100%
Open circuit voltage	85 V
Welding cable section	70/95 mm²
Idle power consumption	35 W
Dimensions	75 x 30 x 54 cm
Weight	40 kg
Protection class	IP23
Generator compatibility	30 kVA (+/-15%)

Welding functions

In TIG, the machine offers continuous DC and DC pulse to reduce distortion. Three special modes are included: SPOT for traditional tacking of thin sheet, TACK for very precise, oxide-free tack points that disappear in the weld bead, and E-TIG, which holds bead width and penetration constant regardless of torch position by controlling welding energy. Trigger modes are 2T, 4T and 4T LOG, and the machine detects trigger, double-button and potentiometer torches automatically. MMA pulse helps vertical-up welding by limiting sagging.

For procedure records, current and voltage are displayed during and after welding for WPS and PQR use, a calibration mode corrects for cable voltage drop, and ENERGY mode calculates heat input according to EN 1011-1, ISO/TR 18491 and QW-409. The Connect 5 function lets an automation controller trigger five stored programs. The chassis is reinforced, has rubber pads, two steel handles and four lifting rings.

Accessories and configuration

Accessory	Reference
WCU 1kW C cooling unit (1000 W, 5.5 l)	013537
ABITIG liquid-cooled torch, 450 W, 8 m, trigger	037359
ABITIG liquid-cooled torch, 8 m, double button	037366
RC-FA1 foot pedal	045682
RC-HA1 manual remote control	045675
Trolley 10m³	037328
Filter	046580

For pipe and heavy stainless work near the upper current range, a water-cooled torch with the WCU cooling unit is the usual configuration. If aluminium must also be welded, the AC/DC GYS TITANIUM 400 is the alternative in the same power class. The datasheet dates from 2018, so current availability is confirmed at quotation.

Documents and quotation

The attached GYS datasheet lists all functions, accessory references and the technical table. Please state the torch, cooling, remote control and cable lengths required, since the power source is supplied without accessories. See other TIG welding machines.
