400 A AC/DC TIG inverter with Wave OS control

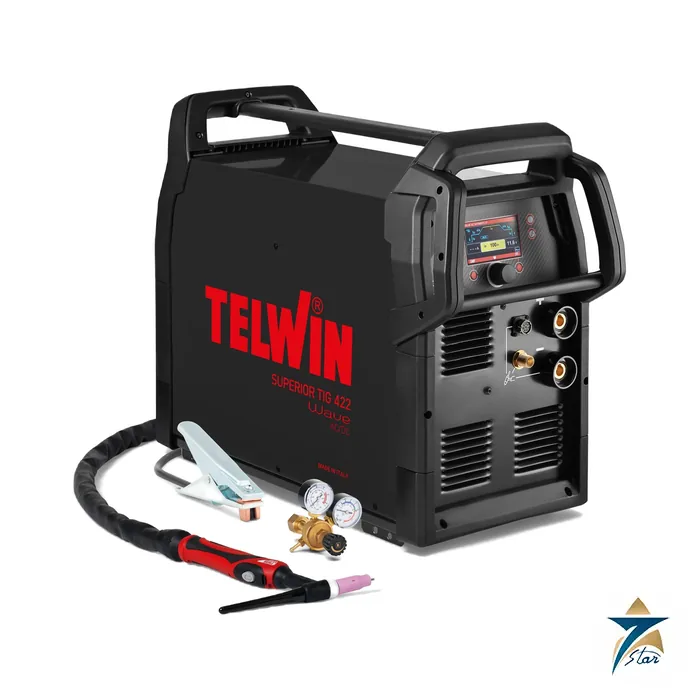

The Telwin Superior TIG 422 Wave AC/DC (code 816186) is a three-phase inverter for TIG AC/DC and MMA welding. Telwin lists steel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys as weldable materials. The machine runs Telwin’s Wave OS operating system: an EASY mode sets parameters automatically from material and thickness, while the EXPERT or PRO environment opens every parameter of the TIG cycle for custom programs that can be saved, recalled and exported via USB.

For TIG, pulse and Easy Pulse modes reduce distortion on thin parts, and more than ten TIG modes are available in 2-stroke, 4-stroke and bi-level operation. THINSPOT (DC) makes clean spot welds on very thin sheet, MIX AC-DC heats the part before AC welding, and three AC waveforms (sinusoidal, square, optimised) can be chosen to suit the job. Arc starting is HF or LIFT at an optimised minimum current.

Technical specifications

Parameter	Specification
Manufacturer	Telwin
Model / code	Superior TIG 422 Wave AC/DC + ACC. / 816186
Mains voltage	3-phase 230 / 400 V, 50/60 Hz (automatic detection)
Current range DC / AC	2-400 A / 3-400 A
Max. current to EN 60974-1	400 A at 40% (AC and DC)
Current at 60% / 100%	300 A / 250 A (AC and DC)
Absorbed current at 60% / max.	21.3 A / 32 A
Absorbed power at 60% / max.	11.5 kW / 17.3 kW
MMA output voltage range	10-40 V
Max. no-load voltage	67 V
Efficiency	83.5%
Electrode diameter	1.6-6 mm
Supply cable	2.5 m
Standards	EN 60974-1, -3, -10
Protection degree	IP23
Dimensions	71 x 32 x 54 cm
Weight	46 kg

MMA functions, protection and build

In MMA, the machine works with direct or pulsed current; MMA Pulse is aimed at basic electrodes and positional welding. Hot start and arc force are adjustable, anti-stick protection is standard, and a VRD device limits the open-circuit voltage. The housing uses a dedicated air tunnel so that cooling air does not pass over the electronics, protecting them from dust and dirt, and the modular design speeds up servicing. Protections cover temperature, over- and undervoltage, internal dirt, overcurrent, phase failure and coolant.

The machine recognises a connected cooling unit automatically, accepts a remote control and works with Telwin PRO torches. A water-cooled version with trolley is listed by Telwin under code 816187.

Applications and selection

A 400 A AC/DC TIG source is typically chosen for aluminium fabrication, food and pharmaceutical stainless work and maintenance shops that handle a wide range of thicknesses. On the 400 V supply, the machine needs a circuit sized for 32 A maximum input current. For continuous welding above about 200 A, a water-cooled torch is advisable, so consider the cooled version or add a cooling unit. Data export over USB helps when weld records must be kept for quality systems.

Documents and quotation

The attached document is Telwin’s multilingual instruction manual for this machine, with safety, installation and operating information. For a quotation, state whether the gas-cooled 816186 or a water-cooled set is needed, the torch length, remote control and site supply. See all TIG welding machines.
