Lorch V 30 AC/DC TIG Welding Machine

Name: Lorch V 30 AC/DC TIG Welding Machine | Seven Star LLC
Brand: Lorch
SKU: V 30 AC/DC

Mobile AC/DC TIG system for aluminium and steel fabrication

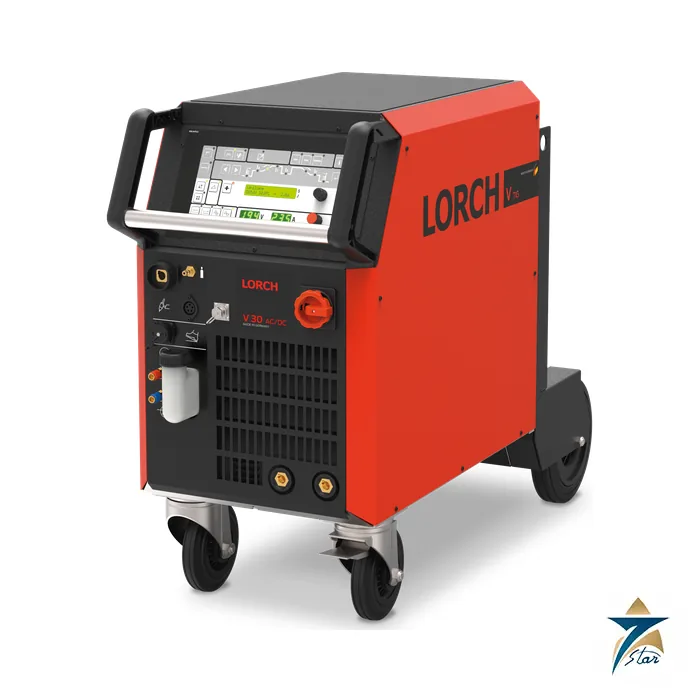

The Lorch V 30 AC/DC is a three-phase TIG welding machine from the Lorch V series, built as a mobile compact system on wheels. The AC/DC version welds aluminium with alternating current and steel, stainless steel and other metals with direct current; MMA welding with electrodes up to 6 mm is also standard. With a 300 A maximum and 250 A at 100% duty cycle, it sits in the middle of the V series, between the V 27 and the V 40.

Lorch uses its “3 steps to weld” operating concept on the V series: the user selects the process and parameters through illuminated symbols that follow the welding sequence, reads current and voltage on a digital display and sets the current infinitely. A pulse function, a remote control connection and the Tiptronic job memory for 100 welding tasks are included in the standard control.

Technical specifications

Parameter	Specification
Manufacturer	Lorch
Model	V 30 AC/DC (mobile compact system)
TIG welding range	3 A to 300 A, infinitely variable
MMA welding range	20 A to 250 A
Electrode diameter	1.5 mm to 6.0 mm
Duty cycle TIG DC	250 A at 100%; 300 A at 60%
Duty cycle TIG AC	250 A at 100%; 300 A at 60%
Mains voltage	3~ 400 V, 50/60 Hz, ±15%
Mains fuse / plug	32 A / CEE 32
Dimensions L x W x H	1130 x 450 x 815 mm
Weight	86.4 kg / 93.6 kg (as listed for the two system versions)
Water cooling, filled	14.7 kg
Standard	EN 60974-1
Protection class	IP23S
Insulation class	F
Marking	CE, S

V series models

Model	TIG range	DC duty cycle 100%	Mains fuse
V 24 mobil / V 24	3-240 A	220 A	16 A
V 30 mobil	3-300 A	270 A	16 A
V 27	3-270 A	250 A	16 A
V 30	3-300 A	250 A	32 A
V 40	3-400 A	360 A	32 A
V 50	3-500 A	380 A	32 A

Each model is offered as a DC system or an AC/DC system.

Selecting between the V 30 and its neighbours

The wheeled V 30 suits workshops that weld aluminium and stainless steel at medium to high currents, for example tanks, frames and pipework, and need a water-cooled torch for long welds. The V 30 mobil delivers the same maximum current in a lighter portable housing on a 16 A supply, which is useful for site work. Where currents above 300 A or thicker aluminium are common, the V 40 or V 50 provide more continuous output.

In AC TIG welding, the balance between electrode-positive and electrode-negative time controls how much oxide is removed from aluminium and how much heat goes into the work, so an AC/DC machine with stored jobs helps keep these settings consistent between welders and shifts. For steel-only work, the DC system is the simpler choice.

Before installation, confirm that a 32 A three-phase socket is available and that the torch rating matches the planned duty cycle.

Documents and quotation

The attached Lorch datasheet covers all V series models with process table, control features and technical data. For a quotation, specify DC or AC/DC, torch type and length, remote control requirements and site voltage. More options are listed under TIG welding machines.
