Brand: Böhler Welding

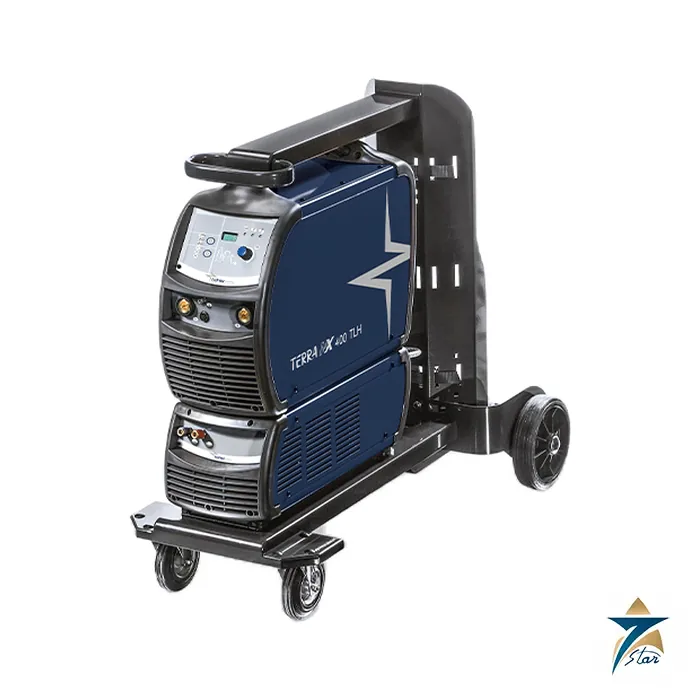

Böhler Welding TERRA NX 400 TLH DC TIG Welding Machine

Name: Böhler TERRA NX 400 TLH DC TIG Welding Machine – Datasheet
Brand: Böhler Welding
SKU: TERRA NX 400 TLH

Description

High-current DC TIG with four Böhler processes

The Böhler Welding TERRA NX 400 TLH is a three-phase inverter machine for TIG DC welding with high-frequency ignition. Böhler Welding highlights a fully digital control panel with LED display, four proprietary TIG DC processes, DcDrive, DcPulse, FastPulse and EasyArc, and high welding power. The adjustment range is 3 to 400 A, which suits thick-wall pipe, boiler and pressure-vessel root and fill work where a high duty cycle matters.

The main TIG functions named in the sheet are Easy Joining, Spot Welding and Pulse Slope. Air-cooled and liquid-cooled TIG torches in the ST series are listed with the machine.

Technical specifications

Parameter	Specification
Manufacturer	Böhler Welding (voestalpine)
Model	TERRA NX 400 TLH
Application	TIG DC HF welding, inverter technology, three-phase supply
Inverter technology	Inverter ThreeLevel by Böhler Welding
Communication	CANBUS digital communication, 500 Kbs
TIG DC processes	DcDrive, DcPulse, FastPulse, EasyArc
Main TIG functions	Easy Joining, Spot Welding, Pulse Slope
User panel	LED-based; parameters shown digitally in A and V
Power supply (50/60 Hz)	3 x 400 V +/- 15 %
Maximum input power	18.6 kVA
Maximum input current	13.4 A
Efficiency	88 %
Power factor / cos phi	0.72 / 0.99
Adjustment range	3 to 400 A
Open circuit voltage	61 V DC
Slow blow line fuse	25 A
Power supply cable	4 x 4 mm2, 5 m
Duty cycle at 40 deg C	50 % at 400 A; 60 % at 380 A; 100 % at 340 A
Duty cycle at 25 deg C	80 % at 400 A; 100 % at 360 A
Protection class / insulation class	IP23S / H
Dimensions / weight	620 x 240 x 460 mm / 22.5 kg
Cooling unit	WU 230: 660 x 240 x 220 mm, 12.0 kg, 1.0 kW, 3.0 l coolant, 1 x 400 V
Air-cooled torches	ST 2200 and ST 2200 FX (all versions): 180 A at 35 %, electrode 0.5 to 4.0 mm, cable 4 to 8 m
Liquid-cooled torches	ST 4000 and ST 4000 FX (all versions): 350 A at 100 %, electrode 0.5 to 4.0 mm, cable 4 to 8 m
Trolleys	GT 150 / GT 350 / GT 400
Validation program	Included

Torch and cooling choice

For manual TIG work the data sheet lists the air-cooled ST 2200 torch, rated 180 A at 35 % duty, and the liquid-cooled ST 4000, rated 350 A at 100 % duty. In both families the Standard and U/D (up/down) variants are available, as well as FX versions. For high-current work above the air-cooled rating, the liquid-cooled torch with the WU 230 cooling unit is the intended pairing. The machine itself is rated up to 100 % at 340 A at 40 degrees C, so the torch and not the power source often sets the practical duty limit.

Supply and site notes

A 25 A slow blow fuse and a 4 x 4 mm2 supply cable of 5 m are listed, with a maximum input current of 13.4 A. The data sheet gives a 0.99 cos phi value and 88 % efficiency. As with any DC TIG machine, shielding gas, tungsten type and diameter, and filler selection come from the welding procedure rather than the power source.

Documents and quotation

The attached Böhler Welding technical data sheet lists the equipment options, technical features and technical data for the TERRA NX 400 TLH. For a quotation please send the application and material, the wire or electrode type and diameter, the mains supply available on site, the cooling method and torch you need, and the quantity. Related machines are listed under TIG Welding Machines.

Datasheets & Documents

Datasheet Böhler Welding TERRA NX 400 TLH technical data sheet (EN) Download
