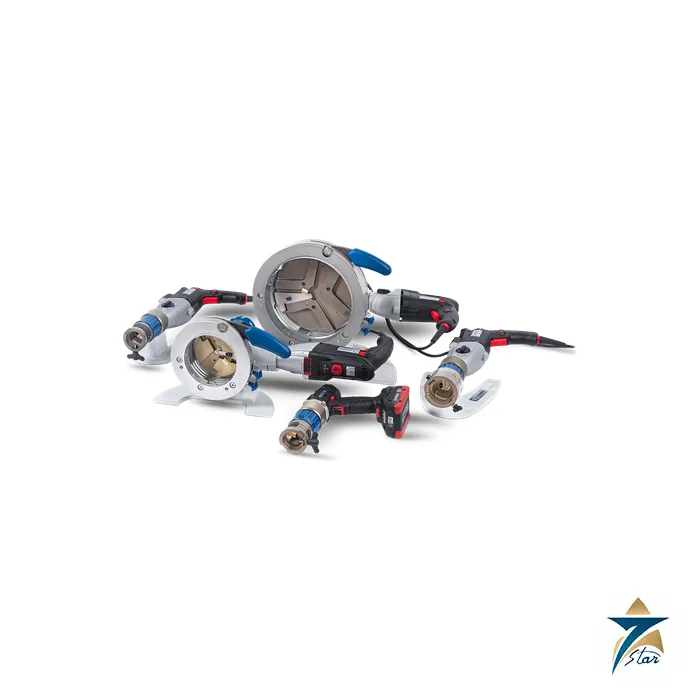

Orbitalum RPG 4.5 Tube Squaring and Pipe Facing Machine

Overview

The Orbitalum RPG 4.5 is a portable tube squaring machine, also called a pipe end facing machine, that machines the end of a tube perfectly flat, right-angled and burr-free before welding. It processes pipes from 12.7 to 114.3 mm (0.5 to 4.5 inch) outside diameter with walls up to 3.0 mm. Orbitalum Tools explains the reasoning clearly: in manual welding, good end preparation is desirable for economic reasons, but in automated orbital welding it is required for technical reasons, because the weld head cannot compensate for an uneven or out-of-square joint.

Seven Star LLC supplies the Orbitalum RPG 4.5 to stainless piping contractors and plant maintenance teams in Oman and the GCC, with engineering support in Muscat. The official datasheet we provide covers the whole RPG family, namely the RPG 3.0 (also in a battery version), RPG 4.5, RPG 4.5 S and RPG 8.6, so this page focuses on the RPG 4.5 while noting where its siblings fit.

Working Principle

A tube squaring machine works like a small lathe that comes to the pipe. In general terms, the tube is gripped in a clamping collar sized to its outside diameter, and a rotating tool holder carrying a cutting insert is fed axially against the tube end. As the tool turns, it removes a thin layer of material until the whole face is flat and square to the tube axis. On the Orbitalum RPG 4.5 the feed has a millimetre graduation so the operator can control exactly how much material is taken off, and the speed-controlled electric motor runs from 8 to 52 rpm.

The cutting tool is the multifunctional tool MFW, which has two cutting edges and a high-performance, wear-protective coating, and Orbitalum states it can be used with all machines of the RPG series. Orbitalum states that pipes of unalloyed, low-alloyed and high-alloyed steels and aluminium can be processed rapidly, economically and with high precision, giving a very high surface finish. With special tool holders the RPG 4.5 can also bevel the tube end at 20, 30, 35 or 45 degrees, which is useful when thicker walls need a weld preparation rather than a square butt.

Engineering Design of the Orbitalum RPG 4.5

The Orbitalum RPG 4.5 measures 460 × 260 × 230 mm with the drive fitted and has a machine weight of 10.5 kg, light enough to be carried to the work and used safely on site. It uses symmetrical, exchangeable clamping collars made of special steel; a click mechanism allows collars to be changed quickly and without tools, so switching from one tube size to another takes little more time than changing the pipe. The clamping length for the RPG 4.5 is 24.9 mm. Orbitalum lists a wide catalogue of collar sizes for this model, from 12.00 mm up to 114.30 mm, including common inch tube sizes such as 12.70, 19.05, 25.40, 38.10, 50.80, 63.50, 76.20, 101.60 and 114.30 mm.

The drive is rated 1,100 W, double-insulated to protection class II, and available in 230 V and 110 V versions. Machine and accessories come in a robust hard-sided transport case together with the WH tool holder, an overload fuse, a tool key set and operating instructions with spare parts list. Clamping collars are ordered separately for the tube sizes you use.

Key Features

The manufacturer lists these advantages for the Orbitalum RPG 4.5 and the RPG family:

• Produces a tube squaring surface with a very high surface finish, burr-free and right-angled.
• Pipe outside diameter range of 12.7 to 114.3 mm and maximum wall thickness of 3.0 mm.
• Quick change system for tools, clamping collars and pipes, with tool-free collar change.
• Suitable for machining thin-walled stainless steel tube (V4A grade).
• Multifunctional MFW tool with two cutting edges and a high-performance coating.
• Speed-controlled 1,100 W electric motor running from 8 to 52 rpm.
• Feed with millimetre graduation for an optimum, repeatable result.
• Beveling possible with optional WH12 tool holders, supplied in a hard-sided case.

Industrial Applications

Orbitalum names pipe and plant builders for high-purity gas, electronics, pharmaceuticals, food processing, beverages, solar and chemical industries as the main users of the RPG range. For fabricators in Oman and the GCC, the Orbitalum RPG 4.5 is a natural companion to orbital welding of stainless process lines on pharmaceutical and food projects, hygienic piping in dairy and beverage plants, and high-purity gas and instrument headers on petrochemical, power and desalination sites around Sohar, Duqm and Salalah.

Facing every tube end before orbital welding removes the variation left by a saw cut and improves fit-up, which reduces repairs and rejected welds. Seven Star LLC supplies the Orbitalum RPG 4.5 with clamping collars and tool holders from Muscat. Customers equipping a full welding cell also consider the Lincoln Electric Power Wave S500, the ESAB Rebel EMP 285ic and the LongTeng EL8, and the rest of our end-preparation range is in the pipe cutting and bevelling machines category.

Technical Specifications

Values for the Orbitalum RPG 4.5 below come from the manufacturer family datasheet:

Where the RPG 4.5 Sits in the Range

The RPG 3.0 and RPG 3.0 battery cover 6.0 to 77.0 mm, the RPG 4.5 S covers the same 12.7 to 114.3 mm range with a universal vice clamp instead of size-specific collars (beveling is not recommended on it), and the RPG 8.6 handles 50.8 to 219.1 mm with walls to 3.6 mm. The Orbitalum RPG 4.5 is the balanced choice for most hygienic and instrument tube work up to 4.5 inch.

Call To Action

To request a quotation for the Orbitalum RPG 4.5, send Seven Star LLC your list of tube outside diameters, wall thicknesses, materials, voltage and delivery location in Oman or the GCC. Our Muscat team will confirm the clamping collars and tool holders you need, share the official family datasheet and arrange supply and support.
