GBC SUPERMAXI 4_16 Portable Pipe Beveling Machine
An ID-locking pipe beveler for 4 to 12.75 in pipe

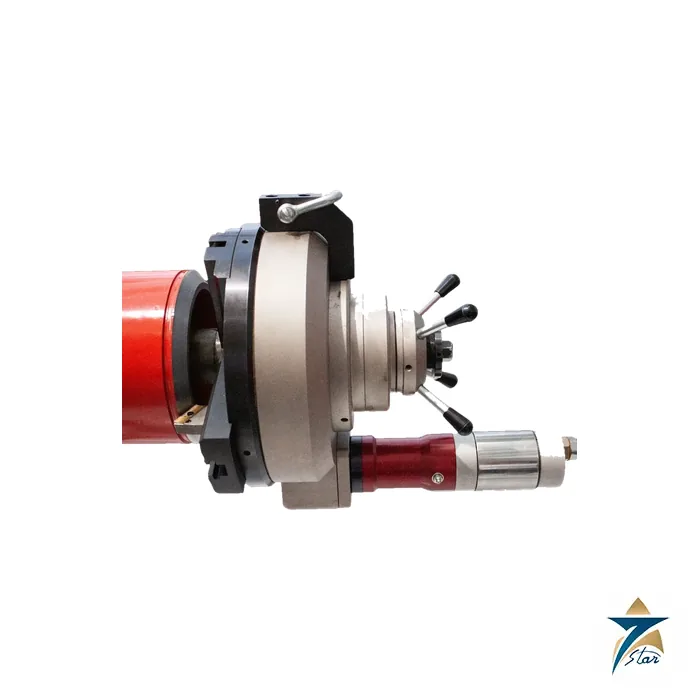

The GBC SUPERMAXI 4_16 is a portable pipe beveling machine from G.B.C. Industrial Tools, designed for piping work and welding workshops that process pipelines, boilers and fittings. It locks inside the pipe and machines the pipe end, and can be used for facing, external and internal tapering, and external and internal beveling.
GBC lists carbon steel, stainless steel, duplex and Inconel among the materials the machine can process. In standard configuration it locks on inside diameters from 94.5 to 318.5 mm (3.7–12.5 in) and works on outside diameters from 101.6 to 323.85 mm (4–12.75 in). With the optional extension kit, the locking range reaches 418 mm (16.45 in) and the working range 420 mm (16.54 in).
Six-point locking, constant feed and interchangeable tools
The machine uses a locking system with six points of contact, intended to keep it stable and free of vibration during cutting, and a feed system and motors that deliver a constant radial speed so each pass is uniform. The layout is designed so that chips from the previous pass do not affect the following passes. The axial stroke is 50 mm.
The mandrel accepts both standard solid-body tools and wedge-locking tools with interchangeable inserts. GBC offers tools in 8% cobalt, titanium-coated and hard-metal-tipped versions, selected according to the material being machined, for bevels of different shapes and angles.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | G.B.C. Industrial Tools / SUPERMAXI 4_16 |
| Locking range (ID) | 94.5–318.5 mm (3.7–12.5 in) |
| Working range (OD) | 101.6–323.85 mm (4–12.75 in) |
| With optional extension kit | Locking up to 418 mm (16.45 in); working up to 420 mm (16.54 in) |
| Axial stroke | 50 mm (1.97 in) |
| Idle speed | 17 rpm (pneumatic); 14 rpm (electric); 17 rpm (hydraulic) |
| Maximum chuck torque | 1,300 Nm at 6 bar and 1,650 Nm at 8 bar (pneumatic); 692 Nm (electric); 2,200 Nm (hydraulic) |
| Pneumatic motor | 2,100 W (2.85 hp); 1,400 Nl/min (49.43 cfm); 6–8 bar (87–116 psi); 3/4 in air connection |
| Electric motor | 2,200 W; 110/220 V; 50/60 Hz |
| Hydraulic motor | 5,000 W (6.8 hp); 30 l/min oil flow; GBC power pack maximum pressure 130 bar (1,885 psi) |
| Maximum acoustic emission | 75 dB |
| Machine weight | 80 kg (all versions) |
| Dimensions A / C | 330 mm / 365 mm (426 mm / 475 mm with extension kit) |
| Dimension B (length) | 750 mm (pneumatic); 630 mm (electric); 610 mm (hydraulic) |
Choosing the drive and preparing the job
The same machine is built in pneumatic, electric and hydraulic versions, and the choice usually follows the utilities at the work site. The pneumatic version needs 1,400 Nl/min at 6–8 bar through a 3/4 in connection, the electric version runs on 110 or 220 V, and the hydraulic version needs a power pack delivering 30 l/min. The data sheet gives the hydraulic version the highest chuck torque, 2,200 Nm, against 692 Nm for the electric version.
Check the pipe inside diameter against the locking range and the outside diameter against the working range; pipe above 12.75 in OD needs the extension kit, which also increases the machine diameter. At 80 kg, plan how the machine will be lifted and supported while it is positioned in the pipe end.
Tools are specified by bevel angle and shape and by the pipe material, since GBC supplies them in different grades. Wedge-locking tools with interchangeable inserts and solid-body tools fit the same mandrel.
Documents and quotation
The GBC data sheet for the SUPERMAXI 4_16 is available on this page. Browse Pipe Cutting & Bevelling Machines for related weld end preparation equipment.
For a quotation, send the pipe ID, OD and wall thickness, the material, the bevel geometry, the preferred drive and supply, and whether you need the extension kit, a hydraulic power pack or spare tools.
