Gullco KBM-28 Heavy Duty Plate Bevelling Machine

Name: Gullco KBM-28 Plate Bevelling Machine – Brochure & Quote
Brand: Gullco
SKU: KBM-28

Description

Cold-machined plate bevels from 8 to 50 mm thickness

The Gullco KBM-28 is a heavy-duty, portable, self-propelled plate edge beveller that mills weld bevels on the top side of mild steel, stainless steel and aluminium plate from 8 mm (5/16 in) to 50 mm (2 in) thick. Because the bevel is machined with a tooth cutter rather than cut thermally, there is no heat-affected zone, no oxide scale to grind off and no thermal distortion of the plate edge. The bevelling head adjusts to produce bevel angles from 22.5° through 55°, and the machine travels along the plate at up to 2 m per minute.

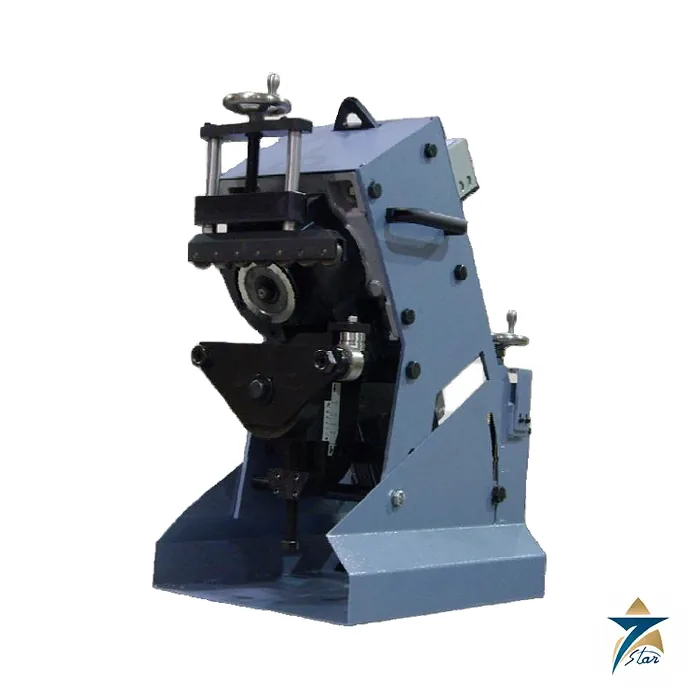

The KBM-28-100 is shown in the photo. For joints that need preparation on both faces, Gullco offers the KBM-28U underside beveller, which bevels the underside of the plate without turning the workpiece over.

Technical specifications

Parameter	Specification
Manufacturer	Gullco
Model	KBM-28 heavy-duty plate bevelling machine (KBM-28-100)
Materials	Mild steel, stainless steel, aluminium plate
Plate thickness	8.0-50.0 mm (5/16-2 in)
Bevel angles	22.5° through 55° (pins for 30° supplied as standard; 22.5°, 37.5°, 45°, 55° and others available)
Max. bevel width at 30°	28.0 mm (1.10 in), on 45 kg/mm² (64,000 psi) material
Max. bevel depth at 30°	24.2 mm (0.95 in), on 45 kg/mm² material
Bevel speed	Up to 200 cm/min (78.7 in/min), depending on bevel depth and supply
Motor	3 HP, 3-phase; 230, 460 or 575 V at 60 Hz, or 380 and 400/415 V at 50 Hz
Weight	444 kg (979 lb) including undercarriage assembly
Compliance	CSA/NRTL (file LR 35006-6) and CE

Maximum recommended bevelling capacity

Bevel angle	45 kg/mm²: width / depth	50 kg/mm²: width / depth	60 kg/mm²: width / depth
22.5°	28 / 26 mm	26 / 24 mm	23 / 21.3 mm
30°	28 / 24.2 mm	25 / 21.6 mm	22.5 / 19.5 mm
37.5°	27 / 21.4 mm	25 / 19.8 mm	21 / 16.7 mm
45°	26 / 18.4 mm	24 / 17 mm	21 / 14.9 mm
55°	25 / 14.3 mm	23 / 13.2 mm	21 / 12 mm

Undercarriages, cutters and accessories

The beveller is mounted on an adjustable undercarriage for height setting; a hydraulic adjustable undercarriage (KBM-28-080) is also offered. Both use Gullco’s self-aligning, spring-loaded caster wheel assembly, which lets the unit propel itself along any length of plate while keeping a uniform bevel and consistent root face. Undercarriages are sold separately.

Standard equipment listed by Gullco is one KBM-28-X1C deep tooth cutter (medium cut), a set of bevel angle pins for 22.5°, 37.5°, 45° and 55°, and a tool kit. Optional items include the KBM-28-X1C medium tooth cutter for a smooth finish, the KBM-28-X1H high tensile cutter, GBM-28 angle bevel pins for other angles, and GBM-28-0.5 and GBM-28-1.0 cutter shims.

Documents and quotation

The attached Gullco KBM-28 brochure contains the specifications and bevelling capacity table. For a quotation, state the supply voltage and frequency, plate materials and thicknesses, bevel angles, undercarriage type and whether the KBM-28U underside unit is needed. Related machines are listed under cutting and bevelling machines.
