Gullco KBM-18 Portable Plate Edge Bevelling Machine

Name: Gullco KBM-18 Plate Edge Bevelling Machine – Manual & Quote
Brand: Gullco
SKU: KBM-18

Description

Portable plate edge bevelling machine for weld joint preparation

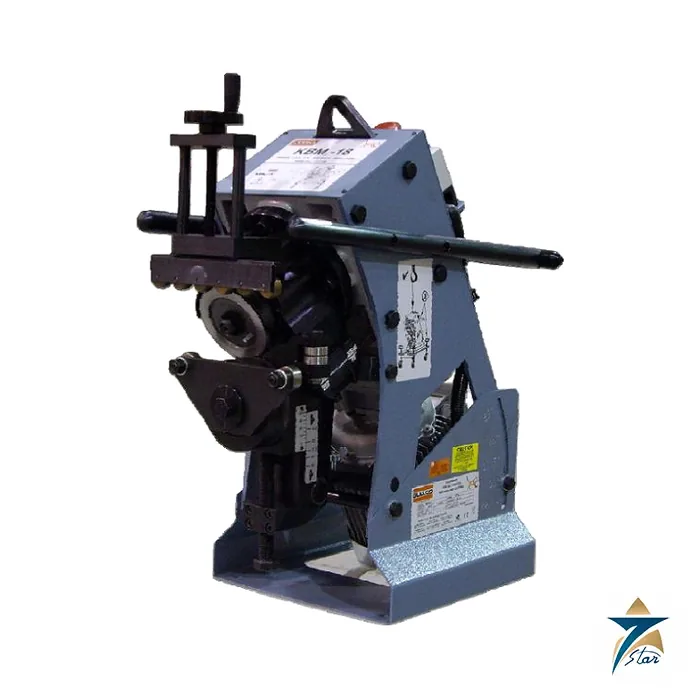

The Gullco KBM-18 is a portable, electrically driven plate edge bevelling machine, a rotary shear that cuts clean machined bevels on the top edge of plate, ready for welding and without the thermal distortion of flame cutting. Gullco designed it for one-man operation on straight or circular plate sections, and the bevel angle can be changed from 22.5 to 55 degrees by swapping the angle bevel pin.

Bevelling is done in multiple passes where the bevel is larger than the machine can take at once. Gullco states the multi-pass capacity at 18 mm bevel width and 15.6 mm depth at 30 degrees on 45 kg/mm2 material. The KBM-18 can be paired with the KBM-18U underside beveller for plate that needs bevels on both sides.

Technical specifications

Parameter	Specification
Manufacturer / model	Gullco / KBM-18 Plate Edge Bevelling Machine (part no. KBM-18-100)
Type	Portable electric rotary-shear plate edge bevelling machine, one-man operation
Bevel angles	22.5, 30, 37.5, 45 and 55 degrees (30 degree pin fitted on delivery)
Maximum bevel width	0.71 in (18 mm) at 30 degrees, material 64,000 lb/in2 (45 kg/mm2), multiple passes
Maximum bevel depth	0.61 in (15.6 mm) at 30 degrees, same material, multiple passes
Minimum plate thickness	1/4 in (6.3 mm); Gullco web page lists 1/4 in to 1 1/2 in (6.0 to 38.1 mm) plate
Bevel speed	Approx. 13 ft/min (4 m/min); top speed varies with bevel depth, voltage and frequency
Motor	2 hp, 3-phase; 230, 460 and 575 V at 60 Hz or 380 and 400/415 V at 50 Hz
Gearbox oil	4 litres (1 US gal) Shell Tivela S 320
Weight without undercarriage	125 kg (275 lb)
Weight with KBM-18-069 undercarriage	153 kg (337 lb)
Weight with KBM-18-080 undercarriage	204 kg (449 lb)
Compliance	CE declaration of conformity in the manual; web page also lists C.S.A./N.R.T.L. file LR 35006-6
Standard equipment	KBM-18-X1C mild steel cutter, set of bevel angle pins, tool kit

Bevelling capacity by angle and material strength

The table gives the maximum recommended multiple-pass bevel width / depth from the operating manual. As tensile strength increases, capacity falls.

Bevel angle	64,000 lb/in2 (45 kg/mm2)	71,000 lb/in2 (50 kg/mm2)	85,000 lb/in2 (60 kg/mm2)
22.5 deg	18.0 mm / 16.7 mm	17.0 mm / 15.7 mm	14.0 mm / 12.9 mm
30 deg	18.0 mm / 15.6 mm	15.0 mm / 13.0 mm	13.0 mm / 11.2 mm
37.5 deg	17.0 mm / 13.5 mm	14.0 mm / 11.1 mm	11.9 mm / 9.5 mm
45 deg	17.0 mm / 12.0 mm	14.0 mm / 9.9 mm	11.9 mm / 8.4 mm
55 deg	15.0 mm / 8.6 mm	14.0 mm / 8.0 mm	11.9 mm / 6.8 mm

Using the machine within its limits

Gullco’s manual advises bevelling conservatively: no more than 70% of the total capacity in a single pass, and no more than 50% on high-tensile steel and stainless steel, with a second pass to reach the finished depth. The machine must be set in accordance with the bevel setting section of the manual before use, and cutter life depends on the material, the bevel depth and how the cutter is sharpened.

The machine can be mounted on an optional height-adjustable, spring-loaded caster undercarriage for self-propelled bevelling along the plate edge, which keeps the bevel and root face uniform, or used on a bench. At 125 to 204 kg depending on the undercarriage, lifting equipment is needed to move it, and the motor supply must match the 3-phase voltage and frequency ordered.

Documents and quotation

The attached Gullco operating instructions and parts list (GD-046, revised September 26, 2019) contain the machine specifications, bevel settings, cutter details and parts breakdowns. Related machines are listed under Pipe Cutting and Bevelling Machines.

For a quotation, state plate material and thickness, bevel angle and size, the motor voltage and frequency, and whether the undercarriage is needed.
