Brand: E.H. Wachs

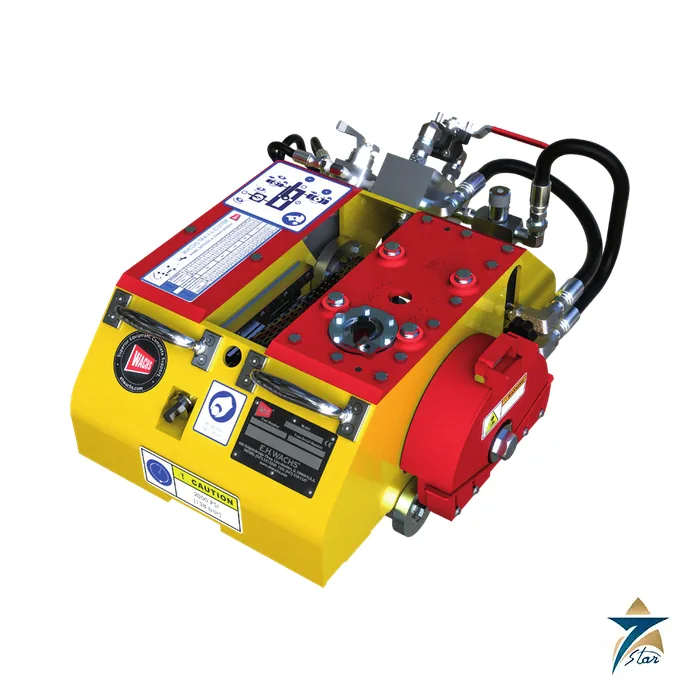

E.H. Wachs Trav-L-Cutter SD Portable Pipe Milling Machine
Description
A chain-driven milling machine that cuts and bevels in one pass
The E.H. Wachs Trav-L-Cutter SD is a portable milling machine that cuts and bevels pipe at the same time on diameters from 6 to 72 in OD (DN150 to DN1800). A tensioned mounting and drive chain holds the machine on the pipe and the machine drives itself around the circumference, which means it accepts any workpiece diameter simply by adjusting the chain length. The Trav-L-Cutter was first introduced by Wachs in 1949; the SD (Super Duty) is its fourth generation.
The SD keeps the external shape of the earlier model but has new internals: an improved feed drive with finer feed control, a heavy-duty clutch, revised chain sprockets, and a redesigned spindle gearbox with more oil capacity and cast-in cooling fins, aimed at long duty cycles in hot environments.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | E.H. Wachs / Trav-L-Cutter SD |
| Machine type | Portable chain-mounted pipe milling machine (cut and bevel simultaneously) |
| Capacity | 6 to 72 in OD (153 to 1829 mm; DN150 to DN1800) pipe and large-diameter vessels |
| Models | Model E pneumatic; Model HE hydraulic |
| Cutter drive | Pneumatic: 4 hp governed air motor with worm gearbox. Hydraulic: hydraulic motor with the same gearbox |
| Cutter speed | Pneumatic 35 to 55 rpm; hydraulic 0 to 60 rpm |
| Feed drive | Pneumatic: 3/4 hp air motor via overload clutch, gearbox and chain reduction. Hydraulic: 4 hp hydraulic motor |
| Air requirement | 100 cfm at 90 psi (0.05 m3/s at 6.21 bar) |
| Hydraulic requirement | 13 to 15 gpm at 1,500 psi (49.2 to 56.78 lpm at 103.42 bar); not to exceed 2,000 psi (137.9 bar) |
| Travel speed | 2.25 in (57.2 mm) surface speed per minute maximum; typically 1 in (25.4 mm) per minute on wall 1/2 in (12.7 mm) and under |
| Clearance | 10 to 12 in (254 to 309 mm) radial; 20 in (508 mm) axial |
| Dimensions (L x W x H) | 24 x 20 x 10.75 in (610 x 510 x 280 mm) |
| Weight | Operating 215 lb (97.6 kg); shipping 418 lb (189.6 kg) |
| Blades | Slitting blades for various pipe materials and schedules; bevel cutters at 37.5 and 30 degrees |
| Manufacturer warranty | 12 months from purchase against defects in materials and workmanship, per the datasheet |
Controls and standard equipment
Model E and HE have separate controls for cutter on-off and feed on-off, with an interlock that prevents machine feed unless the cutter is turning, plus adjustable feed control. The hydraulic Model HE adds flow control valves, with separate adjustment of spindle speed and cutter speed, and a forward and reverse valve for travel direction. Standard equipment includes the operating manual and tools, mounting and drive chain for workpieces up to 48 in (1219 mm), connecting pins, a steel storage case and a reversible feed motor; the pneumatic version also includes a 6 ft whip hose with oiler.
Choosing the version and accessories
Choose the pneumatic Model E when a 100 cfm compressor is available and the hydraulic Model HE when a power unit delivering 13 to 15 gpm is already on site. Rates fall as wall thickness rises: the datasheet notes that walls over 1/2 in and most alloys call for reduced feed rates, and Wachs offers OEM tooling for heavy-wall and high-alloy materials.
Larger diameters than 48 in need additional chain sections, which are optional, as are extra cutter and bevel blades and a guide track with wheels (all pipe sizes up to 72 in) for vertical multi-pass or high-accuracy cuts. Specify the bevel angle needed, 30 or 37.5 degrees, and the pipe schedule so the right blade is chosen.
Documents and quotation
The Trav-L-Cutter SD datasheet is attached to this page. See related machines in Pipe Cutting & Bevelling Machines.
To obtain a quotation list the pipe OD range, wall, material, bevel angle, version (pneumatic or hydraulic) and the air or oil supply on site.
Datasheets & Documents
- Datasheet E.H. Wachs Trav-L-Cutter SD datasheet (DSE-TLC-0721) Download
Reviews (0)
About brand
E.H. Wachs makes portable machine tools for cold cutting and weld preparation of pipe, tube and pressure vessels. The company dates back to 1883, works from Lincolnshire, Illinois, and is a division of ITW. It is best known for the Trav-L-Cutter pipe cutter and for its Guillotine reciprocating pipe saws. Seven Star LLC, an independent supplier in Muscat, lists E.H. Wachs machines for contractors and plant owners who need precise end preparation on site.
E.H. Wachs product groups

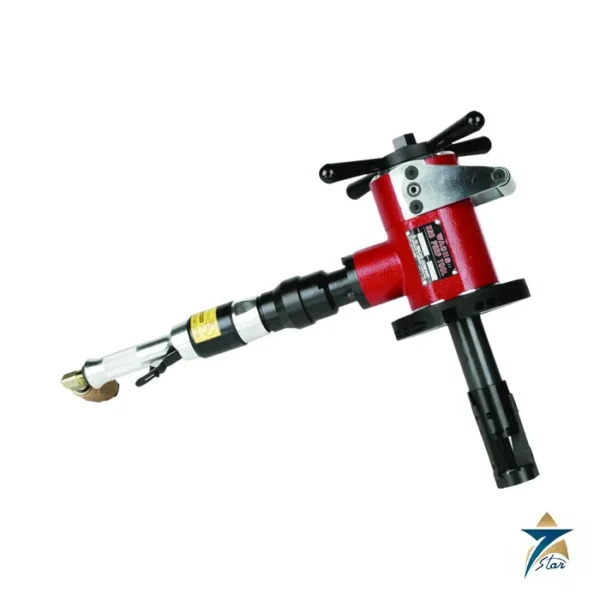

The catalogue covers handheld ID-mount bevellers such as the SDB series, the EP 424 end prep machine with AutoFeed, split frames from the small SDSF through DynaPrep MDSF to the large LDSF, Trav-L-Cutter chain-mounted milling machines, Guillotine pipe saws, flange facers, casing cutters and hydraulic power units. Many machines are also offered as rentals.
Ordering Wachs machines: what we need
State the model and drive (air, hydraulic or electric), the pipe diameter and wall thickness range, the material, and the weld preparation you need, such as bevel angle, compound bevel, J-prep or counterbore. Tooling is profile-specific, so give the bevel drawing or the Wachs tooling part number.
Related products
Frequently Asked Questions
What pipe sizes does the Trav-L-Cutter SD handle?
6 to 72 in OD (DN150 to DN1800); the chain length is adjusted to the diameter, with chain for up to 48 in supplied as standard.
What bevel angles are offered?
Standard bevel cutters are 30 and 37.5 degrees, and slitting blades are available for different pipe materials.
How is it powered?
Model E uses a 4 hp air motor at 100 cfm and 90 psi; Model HE uses hydraulics at 13 to 15 gpm and 1,500 psi.
Can it run vertically?
Yes, it is designed to operate horizontally, vertically or anywhere in between.
How much does it weigh?
215 lb (97.6 kg) operating and 418 lb (189.6 kg) shipping weight.
