GBC HYPERCUTTER Large-Diameter Pipe Cutting and Beveling Machine
Description
Clamshell cold cutting and beveling machine for 60 to 100 inch pipe

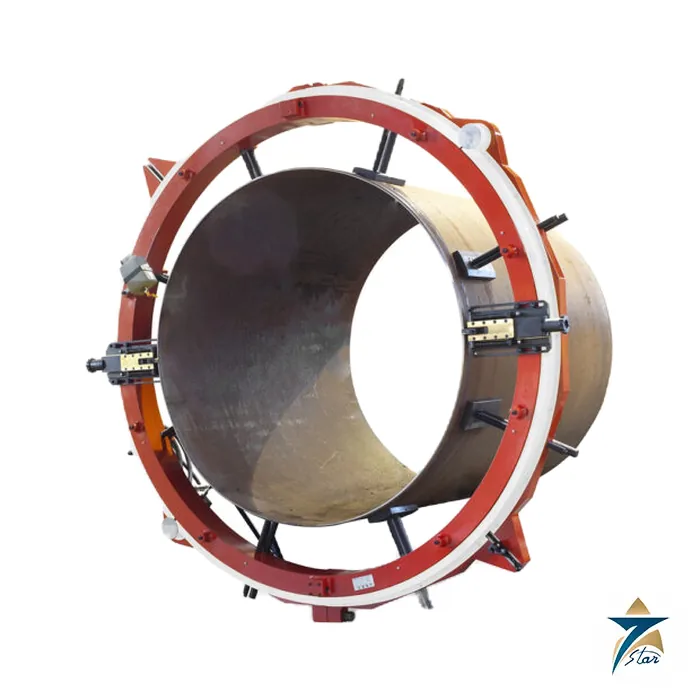

The GBC HYPERCUTTER is the largest-diameter pipe cutting and beveling machine in the GBC range, built for cold cutting, beveling, facing and counterboring of pipes from 1524 mm to 2540 mm (60 to 100 in) outside diameter. It is supplied only in a hydraulic version, driven by a 15 kW hydraulic motor, and is intended for heavy-duty work in the workshop as well as on pipelines.
The machine body is a clamshell frame that opens, so it can be installed at any point along a pipeline rather than only at a free end. It clamps with eight independent adjustable pads with wide contact plates, and the locking jaws are engraved with a linear scale for the pipe diameters they cover, which speeds up positioning.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | GBC / HYPERCUTTER (HC60-80 and HC80-100) |
| Type | Hydraulic clamshell pipe cold cutting and beveling machine for very large diameters |
| Functions | Pipe cold cutting, beveling, facing, counterboring |
| Pipe range, HC60-80 | 1524 – 2032 mm (60 – 80 in) OD |
| Pipe range, HC80-100 | 2032 – 2540 mm (80 – 100 in) OD |
| Materials | Carbon steel, stainless steel, duplex, Inconel, others |
| Locking system | 8 independently adjustable pads with wide contact plates |
| Toolholder stroke | 110 mm (4.33 in) |
| Radial feeding pitch | 0.125 mm (0.005 in) |
| Power | Hydraulic only; motor 15 kW (20.4 hp) |
| Maximum power pack pressure | 160 bar (2320.6 psi) |
| Oil flow | 66 l/min (2.33 cfm) |
| Idle speed | 7 rpm (HC60-80); 5 rpm (HC80-100) |
| Maximum ring torque | 20,000 Nm (HC60-80); 28,000 Nm (HC80-100) |
| Machine weight | 2395 kg (HC60-80); 2689 kg (HC80-100) |
Models and overall dimensions
The data sheet lists two models, HC60-80 and HC80-100, with the following dimensions in millimetres (dimension letters refer to the drawing in the data sheet).
| Model | Supply | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| HC60-80 | Hydraulic | 485 | 245.5 | 1395.25 | 2790.5 | 1290.25 | 2580.5 | 2220 |
| HC80-100 | Hydraulic | 485 | 245.5 | 1670 | 3340 | 1534 | 3068 | 2688 |
Tooling, tracking and field use
The toolholders carry a copying system that follows the pipe outside profile, which compensates for the bevel offset on out-of-round pipes, and an automatic feed advances the operation. GBC offers a wide range of tools for cutting and for standard or compound bevels, for all common materials, and states that tools can be designed to customer specifications.
With a machine weight of 2.4 to 2.7 tonnes, planning for lifting, support and a hydraulic power pack delivering 66 l/min at up to 160 bar is part of any job. On site, check the ground and lifting arrangement, the power pack supply, and the pipe ovality before choosing the model and clamping range.
Documents and quotation
The attached GBC data sheet for the HYPERCUTTER is bilingual (Italian and English). Smaller pipe machines are listed under Pipe Cutting and Bevelling Machines, for example the GBC SUPERMAXI 4_16.
For a quotation, give the pipe outside diameter and wall thickness, material, bevel geometry, and whether a hydraulic power pack is needed with the machine.
Datasheets & Documents
- Data sheet GBC HYPERCUTTER data sheet (IT/EN) Download
Reviews (0)
About brand
G.B.C. Industrial Tools is an Italian manufacturer of machines for cutting and beveling metal pipes and plates, founded in 1981 by Bruno Giottoli. Since 2016 its operations have been centralised in a facility in Cazzago San Martino, near Brescia, where the machines are designed and built. Seven Star LLC, an independent supplier in Muscat, lists GBC portable pipe beveling and pipe cutting machines, including the SUPERMAXI 4_16, and sources GBC equipment for piping and fabrication work.
