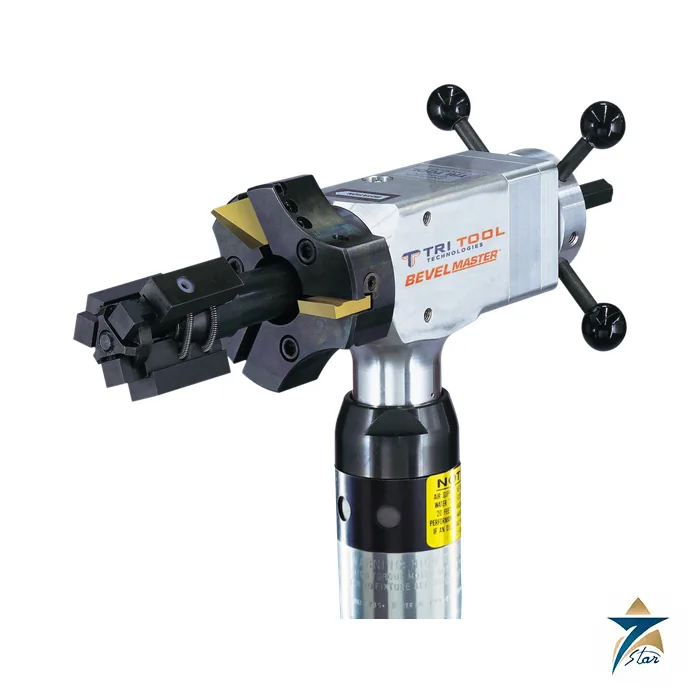

Tri Tool 204B BEVELMASTER Pipe Beveler

Name: Tri Tool 204B BEVELMASTER Pipe Beveler | Seven Star LLC
Brand: Tri Tool
SKU: 204B

The Tri Tool 204B BEVELMASTER is the small-bore member of Tri Tool’s ID-mounted 200 series. It bevels, faces and counterbores the ends of pipe and tubing before welding, and clamps inside bores from 31.8 mm (1.25 in) up to 110.0 mm (4.33 in). Weighing about 8.1 kg (18 lb), it suits tight boiler, skid and process piping work where a single fitter has to carry and set the tool.

Small-bore end prep that one fitter can carry

The lathe reacts its own cutting torque through the mandrel, so nothing has to be braced against the pipe run. A manually actuated draw rod pushes the mandrel ramps and jaw blocks outwards, which centres the head in the bore and aligns it with the pipe axis. Tri Tool hardens the mandrel shaft head to Rc 50, uses tapered mandrel and spindle bearings, and fits a shaft seal that keeps coolant out of the gearing. The heat-treated mounting blocks are designed for long life and a secure grip.

As standard the system ships with the 204B sub-assembly, a 4 in diameter head kit with cam, the air motor, mandrel assembly, jaw block set, wrench kit, carrying case and operator’s manual. All wrenches needed to run it are included; tool bits are ordered for the required profile.

Technical specifications

Parameter	Specification
Manufacturer / model	Tri Tool / 204B (Air) BEVELMASTER
Mounting range (ID)	31.8–110.0 mm (1.25–4.33 in)
Pipe range	1-1/4 in through 4 in, all schedules (some schedules may need optional equipment)
Tube capacity, standard mandrel	Up to 13.5 mm (0.531 in) wall, max. OD 114.3 mm (4.50 in), min. ID 31.7 mm (1.25 in)
Counterbore ID range	38.1–110.2 mm (1.50–4.33 in)
Weight	8.1 kg (18.0 lb)
Cutting head speed	162 rpm max.; 82 rpm at max. HP; 20–100 rpm functional range
Pneumatic motor	325 rpm free speed; 162 rpm at max. HP; gear-driven final drive
Air requirement	26 L/s (55 cfm) at 621 kPa (90 psi), through an FRL
Feed	In-line manual feed handle, 2.5 mm (0.100 in) per turn; 38.1 mm (1.50 in) max. head travel
Speed control	On/off safety lever valve and twist-type air flow valve
Envelope drawing	77-1557

Materials, speeds and accessories

Mild steel, chrome steels up to Rc 35, stainless steel, copper-nickel and aluminium can be machined within the size and wall limits above. Inconel and some other high-temperature alloys may need special procedures that depend on wall thickness and the end preparation; Tri Tool advises on these. As a guide, the specification gives 21 rpm at 4.50 in and 76 rpm at 1.25 in for 300 surface inches per minute.

Optional items include reduced-diameter mandrels for 25.4–31.8 mm and 15.5–25.4 mm bores, a flange facer kit, an elbow mandrel kit with pointer, a small-elbow mandrel and the Air Caddy FRL. The air supply must pass through a filter, regulator and lubricator to protect the air motor warranty. Tri Tool also lists an electric 204BE version with its own specification.

Documents and quotation

The Tri Tool 204B technical specification is attached to this page. For larger pipe see the Tri Tool 208B BEVELMASTER, or browse Pipe Cutting & Bevelling Machines.

For a quotation, send the pipe or tube sizes and wall thicknesses, material, required bevel or counterbore profile, drive type and any mandrel or flange-facing options.

Tri Tool designs portable precision machine tools for weld end preparation and on-site machining, and its history goes back to 1972, when the company was co-founded by Dr. George J. Wernette. It works from Rancho Cordova, California. Seven Star LLC, an independent supplier in Muscat, lists the Tri Tool 208B BEVELMASTER pipe beveling machine and sources Tri Tool equipment for piping contractors. Tri Tool product groups The catalogue covers pipe beveling machines, pipe facing tools including offshore versions, tube facing and squaring tools, tube severing tools, heat exchanger tube facing tools, hydraulic power units and Walhonde line-up clamps. Alongside the standard machines the company offers custom-engineered tools, field machining services and equipment rentals, with applications in power generation, oil and gas, aerospace and government work. Ordering Tri Tool machines: what we need State the model and the drive (air, hydraulic or electric), the pipe size and schedule range, the material and the end preparation you need, such as bevel, compound bevel, facing or counterbore. Tool bits are profile-specific, so give the bevel angle and land, or the Tri Tool part number.
