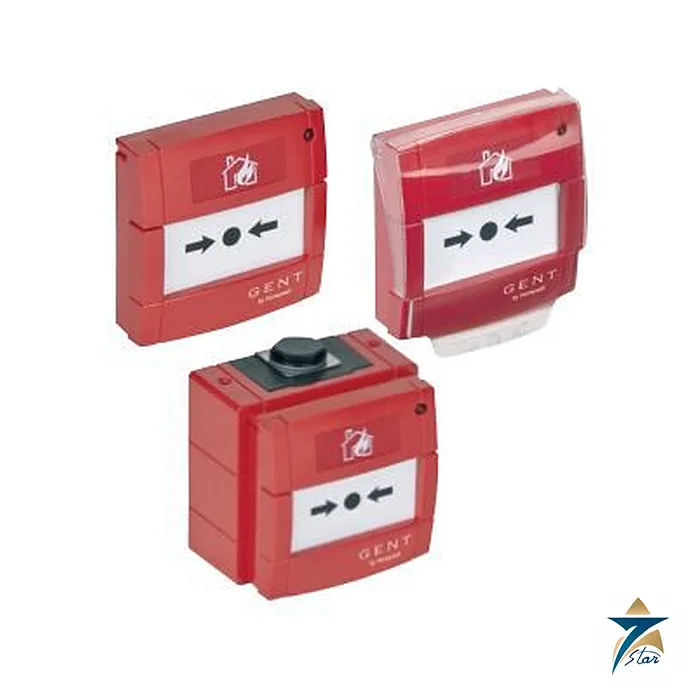

Gent XENS-850 Conventional Manual Call Point Range

Name: Gent XENS-850 Conventional Manual Call Point – Datasheet & Quote
Brand: Gent
SKU: XENS-850

Description

Manual alarm interface for conventional fire panels

The Gent XENS-850 belongs to the Honeywell Gent range of conventional manual call points, which give a manual alarm interface to conventional fire alarm control panels. All units are supplied in the standard red colour and are available for semi-flush or surface mounting. Each call point carries a 470 ohm resistor and a normally open contact, and is supplied complete with glass.

Both break glass and resettable operating elements can be used in the standard unit; a yellow strip on the element becomes visible when it has been activated. A hinged transparent cover can be added to protect the element against accidental operation, and a specialist test key inserted into the bottom of the unit lowers the glass and releases the micro-switch, so a full functional test is possible without breaking glass. The datasheet states full compliance with EN54 Part 11.

Technical specifications

Specification from the Honeywell Gent conventional manual call point datasheet (GEN128, 01/2017). Standard and weatherproof variants are shown side by side.

Parameter	Specification
Standard	EN54 Part 11
Contact and resistor	470 ohm resistor and normally open contact, supplied with glass
Resistive and clean connections	Supported, per datasheet key features
Weight	Standard 180 g (130 g semi-flush); weatherproof 240 g
Current rating	2 A (switching only), both variants
Operating voltage	30 VDC maximum, both variants
Operating temperature	Standard -10 to +55 deg C; weatherproof -30 to +70 deg C
Relative humidity	Standard 93 percent plus or minus 3 non-condensing; weatherproof 0 to 95 percent non-condensing
Ingress protection	Standard IP24D; weatherproof IP67
XENS-850	Flush MCP, 470 ohm, glass
XENS-805	Surface MCP, 470 ohm, resettable
XENS-829	Weatherproof MCP, 470 ohm resistor, glass
XENS-807	Key operated, surface mounted, with backbox
XENS-801	Change over contact MCP
Accessories	XENS-891 spare glasses (10); XENS-890 resettable element (10); XENS-892 hinged protective cover (10); XENS-895 surface backbox (10); XENS-893 replacement keys for XENS-807 (10); XENS-899 test keys (10)

Selecting the right call point code

Choose the XENS-850 where a flush finish is wanted and the standard glass element suits the site. The XENS-805 surface unit with a resettable element saves replacement glass on sites with frequent testing, while the XENS-829 weatherproof unit is rated IP67 for outdoor or washdown areas. For controlled-access areas the XENS-807 is key operated, and the XENS-801 provides a change over contact for panels or interfaces that need it.

All codes are intended for conventional radial circuits and carry the 470 ohm resistor, so the panel zone must be configured for that end-of-line value. They can be used with the Gent Xenex conventional range and with other conventional panels that accept a 470 ohm alarm resistor.

Status and points to confirm

Honeywell’s UK product page titled Gent manual call point currently shows a Discontinued notice. Treat the XENS range as a legacy line for new designs, confirm availability of each code at quotation, and state the exact code from the call point label when you send an RFQ. For other fire alarm devices see the fire and gas detector category.

Documents and quotation

The datasheet for the conventional manual call points can be downloaded on this page. Seven Star LLC is an independent supplier in Muscat, and quotations are checked against the manufacturer order codes. Please list the code, mounting type and quantity in your RFQ.
