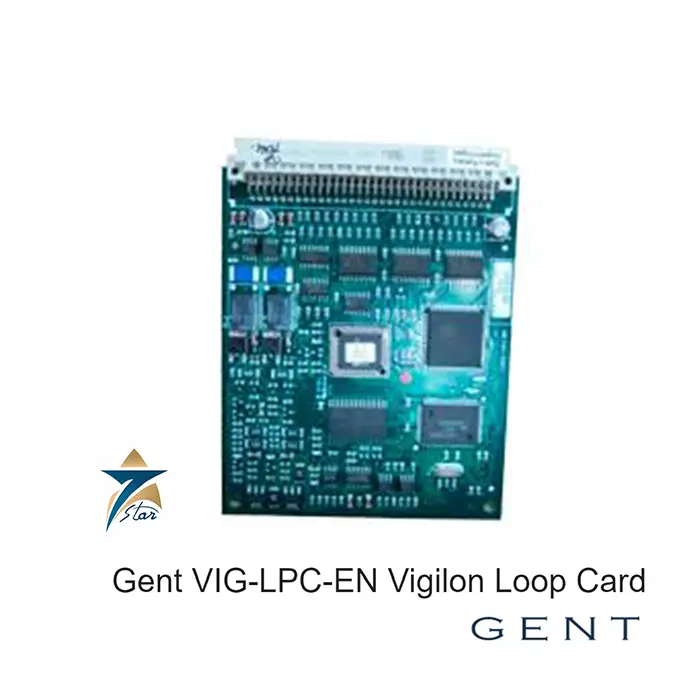

Gent VIG-LPC-EN Vigilon Loop Card

Overview

The Gent VIG-LPC-EN Vigilon Loop Card is an additional or replacement loop card engineered for the Gent Vigilon family of addressable fire alarm control panels. This module allows the connection of an extra loop circuit to an existing panel — provided the panel has available slot capacity. In modern EN54-compliant versions of Vigilon systems, the VIG-LPC-EN delivers improved loop performance and extended device support compared to legacy loop cards.

The card is fully designed to meet EN54-23 specifications, enabling compatibility with certified visual alarm devices (VADs) and supporting enhanced alarm current and loop length for large installations. Gent Vigilon systems with this loop card can support up to 100 EN54-23 visual alarm devices on a single loop, and extended loop runs of up to 2 km depending on installation conditions and device distribution.

Key Features & Technical Highlights

• EN54-23 Compliance: Designed for use in EN54 fire safety systems with visual alarm device compatibility.

• Extended Device Support: Increased loop current (up to ~800 mA with appropriate devices) and support for more alarm devices per loop.

• Enhanced Loop Length: Supports longer addressable device loops — typically up to 2 km of cable under standard conditions.

• Compatibility: Used in Vigilon Plus panels (VIGPLUS-24 and VIGPLUS-72); the Compact Plus panel uses the separate COMPACT-LPC-EN card.

This loop card is ideal for large fire alarm installations where expanded addressable device networks and extended loop lengths are required.

Industrial Applications

The Gent VIG-LPC-EN Loop Card is widely used in fire alarm and safety systems across industrial and commercial environments requiring scalable addressable loops, including:

• Commercial buildings and facilities with large device counts

• Industrial complexes where extended loop lengths improve coverage

• Hospitals and high-occupancy structures needing EN54-certified fire alarm components

• Data centers and infrastructure installations demanding reliable fire detection and alarm expansion.

By providing additional loop capacity, the VIG-LPC-EN supports flexible system expansion and upgraded fire detection capabilities.

Installation & Integration

The Gent VIG-LPC-EN loop card is installed directly onto the Vigilon fire alarm control panel’s board, using standard expansion slots provided by the panel architecture. It communicates with the main controller and other loop cards to manage loop devices, alarms, and diagnostics. Proper commissioning includes ensuring firmware compatibility with the host panel and adherence to loop load guidelines from Gent’s system documentation.

Request a Quote for Gent VIG-LPC-EN Vigilon Loop Card

Request a quote for the Gent VIG-LPC-EN Vigilon Loop Card to expand and enhance your addressable fire alarm control panel system. Contact Seven Star LLC for pricing, availability, and integration support.

Technical Specifications

Technical Overview

The Gent VIG-LPC-EN is an addressable loop driver card for the Gent (by Honeywell) Vigilon fire alarm control panel range, used to drive one analogue-addressable detection loop and expand a panel’s overall device capacity. Per Gent’s product documentation as reproduced by authorized UK fire-and-security distributors, the VIG-LPC-EN is compatible with the Vigilon Plus panel range, specifically the VIGPLUS-24 and VIGPLUS-72 control panels, with one loop card required per detection loop the panel supports.

Each loop driven by the VIG-LPC-EN card supports a maximum loop cable length of up to 2 km, extendable further using Gent’s own loop-load design calculation tool, with a loop current of up to 800 mA when used with the new range of alarm devices (400 mA per loop with older S-Quad or S-Cubed alarm devices). A key capability of this loop card version is support for up to 100 EN54-23-compliant sensor-sounder-strobe visual alarm devices (VADs) on a single 2 km loop, reflecting the growing use of visual alarm devices alongside audible sounders in modern fire alarm system design to meet accessibility and noise-sensitive-environment requirements. The card includes enhanced loop diagnostics tooling to assist commissioning engineers in verifying loop health and device response during system testing. Seven Star LLC notes that the specific loop communication protocol used by the card was not confirmed from an independently accessible manufacturer datasheet during this review, and recommends confirming full panel firmware and protocol compatibility with Seven Star LLC before ordering a replacement or expansion card for an existing Vigilon system.

Applications

The VIG-LPC-EN is used in commercial and industrial addressable fire detection and alarm systems built on the Gent Vigilon platform, particularly installations incorporating EN54-23 visual alarm devices at scale, such as large commercial buildings, hospitals, and industrial facilities where accessible fire alarm notification (visual as well as audible) is required across extensive loop coverage.

VIG-LPC-EN Loop Capacity: When 800 mA and 2 km Actually Apply

Honeywell Gent designed the VIG-LPC-EN to carry a heavier alarm load than the earlier VIG-LPC card, chiefly so that EN54-23 visual alarm devices can be loop powered. The headline figures are 800 mA alarm current, 2 km of loop and up to 200 devices, of which as many as 100 may be S-Quad sensor-sounder-VADs. The manufacturer describes this as twice the alarm power of the previous card with no loss of standby. The older VIG-LPC is limited to loops under 1 km and under 400 mA.

Those maximum values come with conditions. The 800 mA alarm load is available only when the loop is populated with the new range of alarm devices; if any of the older S-Quad or S-Cubed alarm devices are present, the limit falls back to 400 mA per loop. The 2 km length assumes 1.5 mm² cable and depends on how many sounders and VADs are fitted and where they sit along the loop. Honeywell states that in some layouts the card will support fewer devices or less than 2 km.

For that reason the loop should be checked with the Honeywell Gent Battery Standby and Loop Load Calculator Tool before cable sizes are fixed; the Vigilon Plus specification quotes 2.5 km with 2.5 mm² cable. During commissioning the card measures the resistance of each loop when devices are allocated and shows it on the panel, raising a fault if it exceeds a safe limit, which gives the engineer a recorded verification of loop length.

VIG-LPC-EN Panel and Device Compatibility for Upgrades

VIG-LPC-EN is the order code for the Vigilon Plus loop card and is the card used in VIGPLUS-24 and VIGPLUS-72 panels, which hold up to four and six loops respectively. The Compact Plus panel uses a different part, COMPACT-LPC-EN. Honeywell also positions the card as an upgrade for existing EN54 Vigilon 4 and 6 loop installations, where the loop diagnostics function needs panel software above V4.51. Because the new card software is not produced in BS protocol, it cannot be used in 3400 panels or in BS-protocol Vigilon and 34000 export panels.

On the device side, the Honeywell Gent documentation contains a device-by-device compatibility matrix by year of manufacture. It covers S-Quad sensors, sensor sounders and sensor sounders with EN54-23 VAD, S-Cubed sounders, 34000 and 3400 series devices, manual call points and loop or mains powered interfaces. For a retrofit, the installed device list should be checked line by line against that matrix, remembering that older alarm devices hold the loop to 400 mA. Host panels are specified for 0 to 45 °C.

Why Seven Star LLC

Seven Star LLC supplies genuine Gent Vigilon fire alarm system components to customers across Oman and the GCC, and helps confirm the correct loop card version and panel compatibility for expanding or maintaining an existing Vigilon fire detection system before order confirmation.

Request a Quote for Gent VIG-LPC-EN Vigilon Loop Card

Contact Seven Star LLC to request a quotation for the Gent VIG-LPC-EN Vigilon loop card. Our team can help confirm panel compatibility and loop configuration for your fire alarm system, and support reliable delivery across Oman and the wider GCC region.

Ordering Notes

When requesting a quotation, please confirm your existing Vigilon panel model (VIGPLUS-24 or VIGPLUS-72), current firmware version, and the number of loops requiring cards, so Seven Star LLC can confirm full compatibility before shipment, particularly important for fire alarm systems where a single incompatible card could affect life-safety system certification.

Compliance and Certification Value

Maintaining a fire alarm system with genuine, manufacturer-approved loop cards is important not only for reliable operation but for the system’s ongoing life-safety certification, since fire authorities and insurers typically require documented use of approved components across the full fire detection and alarm installation.Seven Star LLC supplies this item on request with the manufacturer documentation, and availability and lead time are confirmed at quotation.
