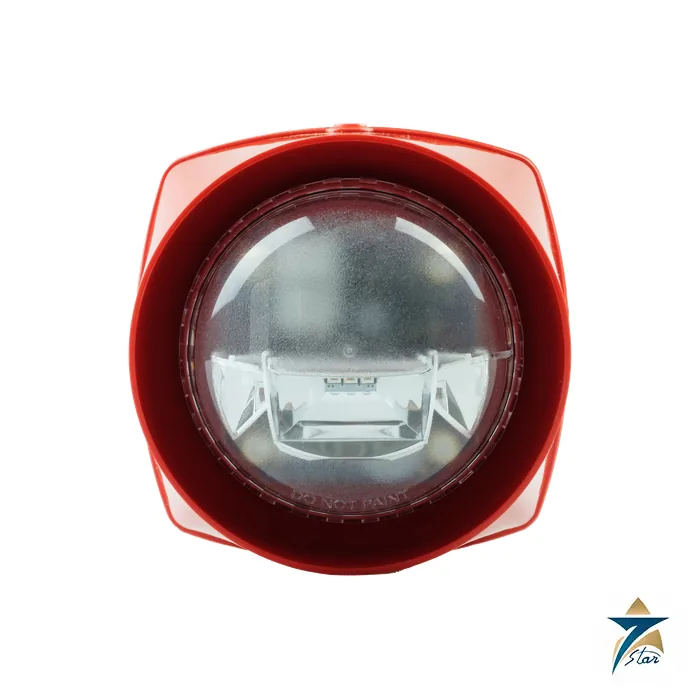

Gent S-Cubed Loop-Powered Sounder and EN54-23 Visual Alarm Device

Overview

The Gent S-Cubed is a range of loop powered alarm sounders, voice sounders and EN54-23 visual alarm devices (VADs) for Honeywell Gent Vigilon fire alarm systems. Honeywell Gent summarises the concept in one line: sound, speech and an EN54-23 visual alarm in one device. Because the devices draw their power and commands from the Vigilon detection loop, a building can be fitted with tone, voice and visual warnings without separate sounder circuits, and the panel can give a differentiated combination of audible and visual alarms for alert and general evacuation stages.

Seven Star LLC supplies the Gent S-Cubed range in Oman and the GCC, with engineering support in Muscat. Contractors use these devices on new Vigilon installations and when existing conventional sounders are replaced during building upgrades, while consultants specify the VAD versions where people with hearing impairment, high ambient noise or ear protection mean an audible signal alone is not enough.

Operating Principle

Each Gent S-Cubed device has its own address on the Vigilon loop. When the panel processes a fire event, it sends the alarm command over the loop, and every sounder in the selected area starts its tone or message in synchronisation with S-Quad sensor sounders on the same system. Voice versions store four standard phrases and a bell tone: an alert message, two evacuation messages in female and male voices, and a test message. Voice and tone modes can be configured freely within the same sounder, so a two stage strategy can play an alert message in one sector while another sector is evacuated.

The visual alarm devices flash at 0.5 Hz and are certified to EN54-23, the European standard that defines light output in terms of coverage volume rather than candela. Gent S-Cubed VADs have adjustable light coverage, so the designer can match the visual coverage to the sounder output and room size. The panel actively monitors the sounder and VAD circuits in the background, and the volume can be adjusted from the commissioning tool, from the panel, or with the HandiLink infrared remote control at a distance of up to 3 m.

Engineering Design of the Gent S-Cubed

A standard Gent S-Cubed sounder produces 103 dB(A) ±3 dB(A) at 1 m and weighs about 0.3 kg. The standard range is rated IP21 for indoor use, and the environmentally protected EP range is rated IP66 for car parks, plant rooms, covered loading bays and other damp or dusty spaces. Devices are offered with red or white bodies, and VAD versions come in red or white flash colours with high, medium and low power settings that trade light coverage against loop load.

Very low power consumption is the design point that matters most to system designers. According to Honeywell Gent, each loop can support up to 200 voice sounders, 100 VAD-only devices and up to 70 combined sounder VADs, depending on power setting and loop load. The non-EP sounders mount on either a shallow or a standard base, and the S-Cubed range carries LPCB approval to EN54-3, EN54-23 and EN54-17.

Key Features

The Honeywell Gent data sheet highlights the following Gent S-Cubed features:

• Sound, speech and an EN54-23 visual alarm can be combined in one loop powered device.
• Low power consumption allows more sounders and VADs on a Vigilon loop than conventional circuit designs.
• Four standard voice messages and a bell tone are available as standard on voice versions.
• EN54-23 VADs have adjustable light coverage to match the sounder output and room geometry.
• The environmentally protected EP range is rated IP66 for harsher indoor and sheltered outdoor areas.
• Sounder and VAD circuits are actively monitored in the background by the panel.
• Volume can be adjusted from the commissioning tool, the panel, or the HandiLink infrared remote control.
• Integral short circuit isolation is approved to EN54-17.

Industrial Applications

Gent S-Cubed devices are common in hotels, hospitals, schools, offices and shopping centres where voice messages reduce confusion during evacuation and VADs support accessibility requirements. In Oman, they fit commercial and hospitality projects in Muscat, government and education buildings, and the workshops, warehouses and control buildings of industrial sites in the Sohar and Salalah free zones. The IP66 EP versions suit basement car parks, chiller plant rooms and covered service yards that see humidity and wash-down.

Seven Star LLC quotes Gent S-Cubed devices together with the panel and detection side of a Vigilon system, including the Gent VIGPLUS-72 Vigilon Plus control panel and the Gent VIG-LPC-EN loop card. For hazardous areas, where a standard indoor sounder is not suitable, the system can signal through an interface to explosion-protected devices such as the MEDC DB3 alarm sounder. We can help choose the Gent S-Cubed power settings that keep the loop within its load budget.

Technical Specifications

The Gent S-Cubed specifications below are taken from the Honeywell Gent S-Cubed data sheet (07/2020).

How to Order

Request a quotation for the Gent S-Cubed range by sending Seven Star LLC your order codes, body and flash colours and quantities, or the alarm device schedule from your fire alarm design. Our instrumentation division will confirm availability and lead time, and the Gent S-Cubed data sheet is available for download on this page. Seven Star LLC supplies Honeywell Gent alarm devices to contractors and facility managers throughout Oman and the GCC, with support from Muscat.
