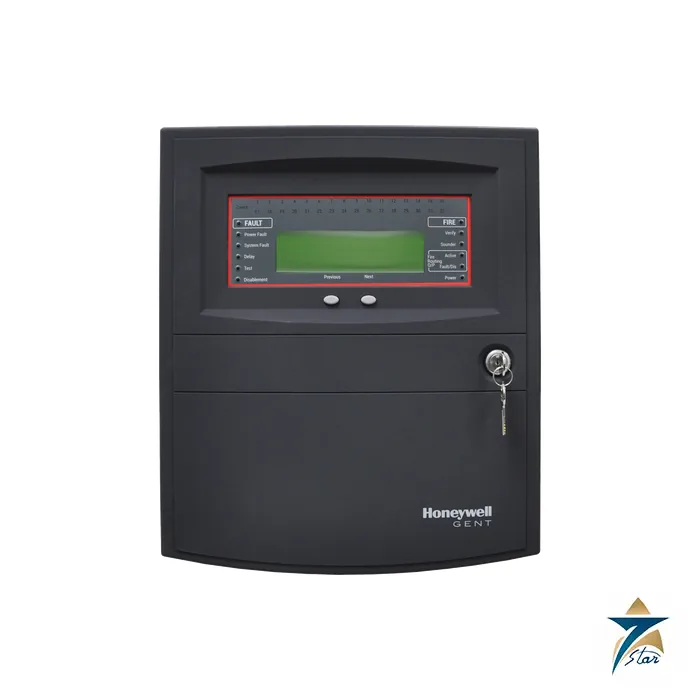

Gent Vigilon Compact Plus 1-2 Loop Fire Alarm Control Panel

Overview

The Gent Vigilon Compact Plus is a one or two loop analogue addressable fire alarm control panel from Honeywell Gent, built for buildings that need the intelligence of the Vigilon platform without the cabinet size of a large multi-loop network panel. Each loop circuit accepts up to 200 addressable devices, so a fully equipped two loop panel can supervise up to 400 sensors, call points, interfaces, sounders and visual alarm devices on a single, compact wall-mounted unit. The Gent Vigilon Compact Plus is designed to EN54-2 and EN54-4 and carries LPCB approval, which makes it a familiar specification item for consultants who work to British and European fire codes.

Seven Star LLC supplies the Gent Vigilon Compact Plus to fire contractors, facility managers and EPC teams in Oman and the GCC, with engineering support in Muscat. Many commercial towers, hospitals, hotels and plant buildings in the Sultanate of Oman already run Vigilon loops, and a compact panel is often the practical choice for a new annex, a remote substation building, a pump house or a smaller site that must still sit on the same Vigilon network as the main panel.

Working Principle

Vigilon is an analogue addressable system: every device on the loop has its own address and reports its status to the panel continuously, rather than simply switching a zone circuit into alarm. The loop processor card in the Gent Vigilon Compact Plus polls each sensor, receives its sensing data, and the panel software combines that information with the processing inside the S-Quad sensors to decide whether a real fire is present. Honeywell Gent describes this split processing as the way Vigilon identifies real fires quickly while reducing the false alarms that disrupt occupied buildings.

All Vigilon devices connect to the same two core loop of the Gent Vigilon Compact Plus, so sounders, visual alarms and interfaces do not need separate sounder circuits or repeater wiring. The loop is wired as a ring, so a single open circuit does not isolate devices, and short circuit isolators in the loop devices limit the effect of a cable fault. With approved 1.5 mm² cable a loop can run up to 2 km with up to 200 devices, and with 2.5 mm² cable the installation instructions allow up to 2.5 km, subject to the loop load calculation.

Engineering Design of the Gent Vigilon Compact Plus

The Gent Vigilon Compact Plus housing measures approximately 403 mm high, 338 mm wide and 101 mm deep and weighs about 8.6 kg without batteries, which makes it easy to mount in a corridor, reception area or electrical room. The panel is rated IP31 for indoor installation and operates from 0 °C to +45 °C. Card slot one carries the first loop processor card; slot two can take a second loop processor card and the optional network card. The network card links up to 31 panels in a secure copper loop network with up to 1.2 km between panels, so the compact panel can join larger Vigilon systems.

Operators of the Gent Vigilon Compact Plus work with a back-lit 8 line by 40 character LCD, dedicated LED indicators for fire, fault, disablement, test, delay and FARE status, and a keypad with access levels for users, customers and engineers. Two master alarm circuits, an auxiliary fire relay with two changeover sets and a fault relay are provided, and the relays can be reconfigured to operate on fire, fault or disablement with delays of up to ten minutes. RS232, RS485 and USB ports serve a printer, a repeat indicator panel and the PC commissioning tool.

Key Features

The main points engineers consider when they specify the Gent Vigilon Compact Plus are summarised below from the Honeywell Gent documentation:

• One loop processor card is fitted as standard, and a second loop card can be added to supervise two loop circuits.
• Each loop supports up to 200 addressable devices, including S-Quad sensors, call points, interfaces and S-Cubed sounders.
• The integral EN54-4 power supply works with two 12 V 12 Ah batteries to provide 24 hours standby plus 30 minutes in alarm, subject to loop loading.
• An optional network card connects up to 31 panels on a secure copper loop network for multi-building sites.
• Fire plans can sector the network into evacuate and alert areas and can apply pre-set delays where the fire strategy allows.
• The event log records fire, fault, disablement and warning events, with a separate fire log of up to 100 events.
• PC based commissioning tools allow complex cause and effect programming to be configured and stored for the site.
• Loop card diagnostics support status monitoring and fault finding without disconnecting field devices.

Industrial Applications

A typical Gent Vigilon Compact Plus installation in Oman is a medium sized commercial or institutional building: a clinic, a school block, a hotel annex, a mall extension or an office building in Muscat. It also suits industrial support buildings such as control rooms, laboratories, warehouses and workshops in the Sohar and Salalah free zones, where the fire alarm system must interface with HVAC shutdown, door holders, lift recall and suppression panels through loop powered interfaces rather than extra field wiring.

Seven Star LLC works with contractors who are extending an existing Vigilon estate, replacing an older compact panel or building a new system, and we can quote the panel together with loop devices and the Gent VIG-LPC-EN Vigilon loop card. For larger buildings that need more than two loops, the Gent VIGPLUS-72 Vigilon Plus panel is the natural companion on the same network, and the Gent Vigilon Compact Plus can act as a node within that system. Where a site also has hazardous area plant, Vigilon interfaces can monitor field equipment such as the MEDC DB3 explosion-proof alarm sounder through suitable interface units.

Technical Specifications

The Gent Vigilon Compact Plus specifications below are taken from the Honeywell Gent installation instructions; final values depend on the loop configuration and options ordered.

How to Order

To order the Gent Vigilon Compact Plus, send a formal RFQ to Seven Star LLC with the number of loops, network requirements and the device schedule for the building. Our instrumentation division will confirm availability, lead time and compatible loop devices, and you can download the Gent Vigilon Compact Plus installation and operating documents from this page to check wiring and battery calculations before ordering. Seven Star LLC supplies Honeywell Gent fire alarm equipment to contractors and building owners across Oman and the GCC, with technical support from Muscat.
