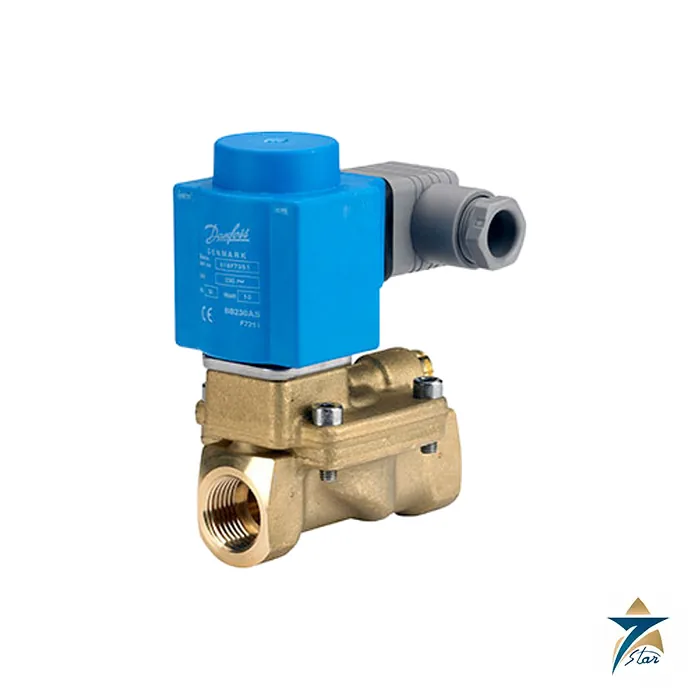

Danfoss EV220B 15-50 Servo-Operated Solenoid Valve
Overview
The Danfoss EV220B 15–50 is a universal servo-operated 2/2-way solenoid valve programme for water, steam, oil, compressed air and neutral gases, in sizes DN 15 to DN 50 with G½ to G2 threaded connections. Danfoss builds the Danfoss EV220B with valve bodies in brass, dezincification-resistant (DZR) brass or stainless steel, with a built-in pilot filter as standard, water-hammer damping and coil enclosures up to IP67, so one valve family covers utility water, plant air, lube oil and many process liquids.
Seven Star LLC supplies the Danfoss EV220B and its coils to plant operators, contractors and OEMs in the Sultanate of Oman and across the GCC, with engineering support in Muscat. We help buyers choose the right body material, seal and coil for each medium and voltage, and keep common sizes available for fast maintenance replacement.
Operating Principle
The Danfoss EV220B is an indirect, servo-operated valve: the coil moves only a small pilot, and the line pressure does the work of opening the main diaphragm. In the normally closed version, with the coil de-energised the armature spring presses the valve plate onto the pilot orifice; pressure builds up above the diaphragm through the equalising orifice and holds the main orifice shut. When the coil is energised, the pilot orifice opens, and because it is larger than the equalising orifice the pressure above the diaphragm falls and the diaphragm lifts clear of the main orifice.
The normally open brass version works the other way round, closing when the coil is energised. Because the valve relies on line pressure, a minimum differential pressure of 0.3 bar is needed to open and hold it open; the maximum opening differential pressure is up to 16 bar depending on size and seal. Closing time can be adjusted by changing the equalising orifice, which is how the Danfoss EV220B limits water hammer in long pipelines.
Engineering Design of the Danfoss EV220B
Internal parts are stainless steel throughout: AISI 430 FR armature and armature stop, AISI 304L armature tube, AISI 301 springs and AISI 316L orifices. Seals, valve plate and diaphragm are available in EPDM for water and drinking water, NBR for oil, water and air, and FKM for oil and air. The stainless steel version uses W.no. 1.4581 for the body, while the DZR brass version uses CuZn36Pb2As for neutral and slightly aggressive liquids.
The valve body and coil are separate, so coils can be changed without opening the pipework. Danfoss lists screw-on BA and clip-on BB, BE, BF, BG, BO, BP and BR coils, with enclosures from IP00 with spade connector up to IP67 with cable plug, terminal box or fixed cable, and power consumption roughly between 8.5 and 17 W depending on type. Dimensions run from 80 mm length and 0.7 kg for DN 15 to 162 mm and 4.8 kg for DN 50, without coil.
Key Features
The Danfoss EV220B programme gives users these practical benefits:
- One valve family handles water, steam, oil, compressed air and neutral gases in DN 15 to DN 50.
- Brass, DZR brass and stainless steel bodies cover neutral, slightly aggressive and aggressive media.
- A built-in pilot filter protects the pilot system from dirt as standard.
- Water-hammer damping and adjustable closing time protect pipework and fittings.
- NC and NO functions are available in the brass version.
- EPDM, NBR and FKM seals match water, oil and air duties at media temperatures from −30 to +120 °C.
- Interchangeable coils up to IP67, including a marine coil design, suit wet and outdoor locations.
- Kv values from 4 to 40 m³/h allow sizing for small dosing lines up to main water feeds.
Industrial Applications
The Danfoss EV220B is used to start and stop flow in water treatment and RO pre-treatment skids, cooling water and make-up lines, irrigation and district cooling plant rooms, compressed air distribution, lube oil and hydraulic auxiliary circuits, washing and cleaning machines and low-pressure steam lines up to 140 °C with EPDM. For water service Danfoss recommends a 50 mesh filter upstream, water hardness of 6–18 °dH and conductivity of 50–800 µS/cm for brass bodies, and exercising the valve at least once every 24 hours; with Gulf groundwater and desalinated water these guidelines often point to the stainless steel or DZR version.
In refrigeration plants the Danfoss EVR 25 solenoid valve remains the choice for refrigerant lines, while the Danfoss EV220B handles the water, brine and air side. Pressure monitoring in the same circuits is often done with the Danfoss MBS 3000 pressure transmitter, and sites standardised on other brands may compare it with the ASCO 8210 Series solenoid valve. Seven Star LLC supplies the Danfoss EV220B across Oman and the GCC.
Technical Specifications
The Danfoss EV220B 15–50 data below are taken from the Danfoss data sheet.
| Parameter | Specification |
|---|---|
| Model | Danfoss EV220B 15–50 servo-operated 2/2-way solenoid valve |
| Sizes / connections | DN 15–50; G½–G2 (ISO 228/1) |
| Body materials | Brass, DZR brass, stainless steel |
| Function | NC and NO (brass); NC (DZR brass, stainless steel) |
| Seals | EPDM, NBR, FKM |
| Opening differential pressure | 0.3 bar min.; up to 16 bar max. (size and seal dependent) |
| Max. working / test pressure | Up to 16 bar / 20 bar |
| Media temperature | EPDM −30 to +120 °C; FKM 0 to +100 °C; NBR −10 to +90 °C |
| Ambient temperature | Up to 80 °C |
| Max. viscosity | 50 cSt |
| Coil enclosure | Up to IP67 |
| Coil power | Approx. 8.5–17 W depending on coil type |
Kv values and indicative weights by size:
| Size | Connection | Kv (m³/h) | Length (mm) | Weight without coil (kg) |
|---|---|---|---|---|
| EV220B 15 | G½ | 4 | 80 | 0.7 |
| EV220B 20 | G¾ | 7.5–8 | 90 | 0.9 |
| EV220B 25 | G1 | 11 | 109 | 1.3 |
| EV220B 32 | G1¼ | 18 | 120 | 2.0 |
| EV220B 40 | G1½ | 24 | 130 | 3.0 |
| EV220B 50 | G2 | 40 | 162 | 4.8 |
How to Order
Tell Seven Star LLC the medium, pipe size, pressure range, temperature, NC or NO function and coil voltage, and we will propose the correct Danfoss EV220B body, seal and coil. Our Muscat office confirms availability for Oman and GCC delivery and sends the official Danfoss EV220B 15–50 data sheet with the quotation.
