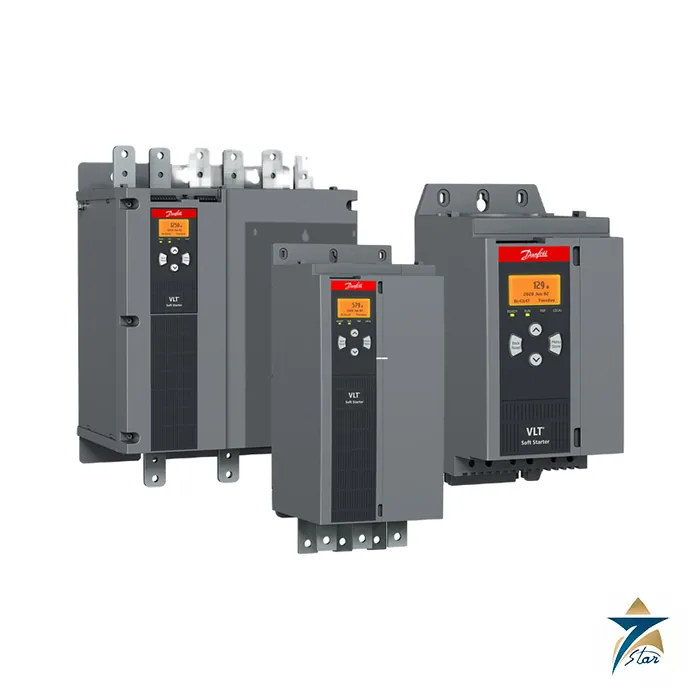

Danfoss VLT Soft Starter MCD 600, 20 to 1250 A

Name: Danfoss VLT Soft Starter MCD 600 – Datasheet & Quote
Brand: Danfoss
SKU: MCD 600

Description

A soft starter that covers 20 A to 1250 A fixed-speed motors

The Danfoss VLT Soft Starter MCD 600 is a soft starter for fixed-speed pumps, fans, compressors and conveyors. A single product family spans 20 to 1250 A full-load current on supplies up to 690 V AC, with a four-line graphical display, built-in timers, an extended simulation mode and communication cards for the main Ethernet and serial fieldbuses.

A built-in bypass contactor in every size is the main route to low losses and low harmonics at full speed. Heat dissipation during run is only about 35 W for the smallest frame and up to roughly 180 W for the largest in the Danfoss data, which keeps cabinet cooling small.

Technical specifications

Parameter	Specification
Series	VLT Soft Starter MCD 600 (type code MCD6-xxxxB-T5 / T7 and MCD6-xxxxC)
Mains voltage	T5: 3 x 200-525 V AC (+/-10 percent); T7: 3 x 380-690 V AC (+/-10 percent), in-line connection
Current range	20 to 1250 A full-load current (FLC)
Enclosure sizes	S1 (IP20): 20 to 129 A; S2 (IP00): 144 to 579 A; S3 (IP00): 654 to 1250 A
Bypass options	S1, S2, S3: built-in bypass contactor; S2, S3: no bypass; S3: external bypass (increases FLC performance by up to 30 percent)
Control voltage	CV1: 24 V AC/DC (+/-20 percent), 2.8 A; CV2: 110-120 V AC (+10/-15 percent), 600 mA or 220-240 V AC (+10/-15 percent), 350 mA
Mains frequency	50/60 Hz (+/-5 percent)
Insulation / impulse	Rated insulation voltage to earth 690 V AC; rated impulse withstand 6 kV
Form / short circuit	Bypassed or continuous semiconductor motor starter form 1; type 2 coordination with semiconductor fuses, type 1 with HRC fuses
Start methods	Three Adaptive Acceleration Control (AAC) profiles (early, constant, late); constant current / current ramp with kickstart; DC injection braking
Inputs	Active 24 V DC, approx. 8 mA; motor thermistor input (trip above 3.6 kohm, reset below 1.6 kohm)
Outputs	Three relay outputs (main contactor, changeover A, normally open B): 10 A at 250 V AC resistive, 5 A AC15; analog output 0-20 mA or 4-20 mA, 600 ohm maximum
EMC	Immunity IEC 60947-4-2; emissions IEC 60947-4-2 Class B
Operating conditions	-10 to 60 C (derate above 40 C); storage -25 to 60 C; altitude 0-1000 m (derate above); 5 to 95 percent RH; pollution degree 3
Heat dissipation	During start 4.5 W per ampere; during run from 35 W (MCD6-0020B) up to 180 W (MCD6-1250B) approximately, depending on frame
Communication options	EtherNet/IP, PROFINET, Modbus TCP, PROFIBUS, DeviceNet, Modbus RTU; remote LCP 601 (IP65, 3 m cable)
Software	WinStart for MCD 600; VLT Motion Control Tool MCT 10; Smart Pump application card

Start, stop and protection functions

Adaptive Acceleration Control offers early, constant and late profiles for the motor speed ramp, while constant current and current ramp with kickstart are available for conventional starts. DC injection braking and soft stop help with high-inertia loads. The Pump Clean (deragging) function gives more uptime and longer pump life; Power Through and emergency mode keep the motor running past a failed component for as long as possible.

Reverse control is available, with starting current and protection kept under control, when a reversing contactor is installed in the application. Simulation mode lets commissioning engineers test the starter without mains or a motor, and the built-in clock supports auto start and stop. The Danfoss fact sheet also lists support for eight languages.

Frame sizes and ordering guidance

Select the frame by motor full-load current, supply voltage (T5 or T7) and the bypass arrangement: integrated bypass for most installations, no bypass for the larger S2 and S3 sizes where an external contactor is preferred, and external bypass on S3. Control voltage is chosen from CV1 (24 V) or CV2 (110-120 V or 220-240 V). The Danfoss data lists dimensions and weights per frame as in the table below.

Frame	Current rating	Weight (kg)	H x W x D (mm)
S1	21, 34, 42 A	4.8	336 x 152 x 231
S1	63, 69 A	4.9	336 x 152 x 231
S1	86, 108, 129 A	5.5	336 x 152 x 231
S2	144 to 244 A	12.7	495 x 216 x 243
S2	287 to 410 A	15.5	523 x 216 x 243
S2	527, 579 A	19	523 x 216 x 243
S3	654, 736 A	51	618 x 447 x 310
S3	950 to 1250 A	62 to 65	618 x 447 x 310

Confirm before ordering: motor current and duty class, supply voltage, bypass type, control voltage, fieldbus card, enclosure and ambient above 40 C (derating). For variable speed instead of fixed speed, see the Danfoss FC 102 drive; other soft starters are listed in the motor soft starters category, for example the Altistart 48.

Documents and quotation

The attached file is the two-page Danfoss Drives fact sheet for the VLT Soft Starter MCD 600 with the specifications table, options list and frame dimensions. For a quotation, send the model type code (for example MCD6-0129B-T7), voltage, quantity and any communication or LCP options to Seven Star LLC, an independent supplier in Muscat.
