Overview
The Danfoss VACON NXP air-cooled AC drive is the high-performance member of the VACON® NX family, designed for demanding applications with a focus on higher power sizes and system drives. Danfoss offers it for 208–240 V from 0.55 to 90 kW, for 380–500 V from 1.5 to 1,200 kW and for 525–690 V from 2 to 2,000 kW, with paralleling through DriveSynch extending the range to several megawatts. The Danfoss VACON NXP controls both induction and permanent magnet motors and is widely used where precise torque control, heavy overloads or complex system logic are required.
Seven Star LLC supplies the Danfoss VACON NXP to oil and gas operators, utilities, marine and heavy industry customers across the Sultanate of Oman and the GCC, with engineering support in Muscat. We assist with frame selection, option boards and replacement of installed NXP units, many of which have run for years in the region’s plants.
Operating Principle
The Danfoss VACON NXP converts the fixed mains supply into a variable voltage and frequency output for the motor, from 0 to 320 Hz in the standard version. Unlike simpler drives, the NXP control unit offers U/f control, open loop sensorless vector control and closed loop vector control with encoder feedback, which allows full torque at zero speed for hoists, winches and winders. Acceleration and deceleration times are adjustable from 0.1 to 3,000 s, and DC braking provides about 30 % of nominal torque without an external brake option.
Two load ratings are defined. At low overload (IL) the drive delivers its continuous current at up to 40 °C ambient with 110 % overload for 1 minute in 10; at high overload (IH) it is rated for 150 % for 1 minute in 10 at up to 50 °C, and a starting current is available for 2 s in every 20 s. This dual rating lets engineers size the Danfoss VACON NXP economically for pumps and fans, or conservatively for cranes, extruders and other constant-torque machines.
Engineering Design of the Danfoss VACON NXP

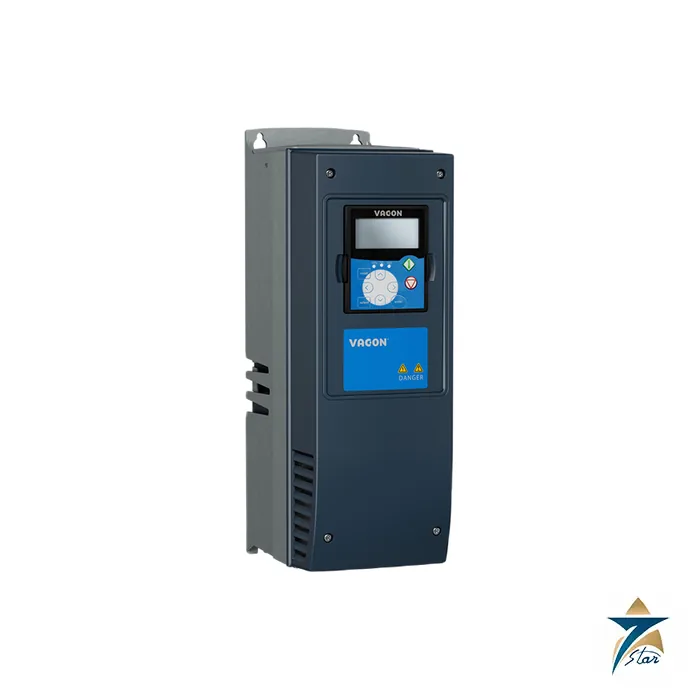

The Danfoss VACON NXP is built as wall-mounted units in frames FR4 to FR9, standalone enclosed units in FR10 to FR11, and IP00 modules for cabinet integration. IP21 / UL Type 1 is standard across the wall-mounted and standalone range, with IP54 / UL Type 12 available for FR4–FR9 and FR10 standalone units. Coated circuit boards protect against dust and moisture, DC cooling fans comply with the ErP2015 directive, and the design is classified to IEC 60721-3-3 class 3C3 for chemical vapours and 3S2 for particles.
The control unit has five built-in expansion slots for I/O, fieldbus and functional safety boards, giving the Danfoss VACON NXP its reputation for flexibility in system drives. Fieldbus options and the VACON programming tools allow application-specific software, and the NXP supports gearless drives and parallel connection of power units for very large motors. Full load capacity is available up to 1,000 m altitude, with 1 % derating per 100 m above that.
Key Features
Engineers specify the Danfoss VACON NXP for the following reasons:
- Open loop and closed loop vector control give precise speed and torque, including full torque at standstill with encoder feedback.
- A very wide power range from 0.55 kW to 2,000 kW in one platform, with DriveSynch paralleling for higher outputs.
- Dual IL / IH ratings with 150 % overload at up to 50 °C ambient for constant-torque duty.
- Five expansion slots for I/O, fieldbus and functional safety option boards.
- Control of induction and permanent magnet motors, including gearless drive applications.
- Coated PCBs and IEC 60721-3-3 class 3C3 / 3S2 design for harsh industrial air quality.
- IP21 standard and IP54 optional enclosures, plus IP00 modules for cabinet builders.
- DC fans compliant with ErP2015 reduce auxiliary energy use.
Industrial Applications
Danfoss lists cranes, hoists, winches, elevators and escalators, cargo pumps, pumps, fans, conveyors, machine tools, oil pumps, winders, pulp dryers, tissue machines and extruders among the applications of the Danfoss VACON NXP. In the GCC that typically means oil transfer and cargo pumps at terminals, water injection and booster pumps, large cooling and process fans in power and desalination plants, conveyors in cement and mining, offshore and port cranes in Duqm, Sohar and Salalah, and drilling and marine winches. Lifting duties often pair the drive with hoists such as the Konecranes CXT wire rope hoist.
For general-purpose and HVAC duty below the NXP’s focus, Danfoss customers in the region often choose the Danfoss VLT AutomationDrive FC 302 or the Danfoss VLT HVAC Drive FC 102. The Danfoss VACON NXP is the choice when application software, closed loop control or very high power is needed. Seven Star LLC supplies NXP drives, option boards and spare units across Oman and the GCC.
Technical Specifications
The Danfoss VACON NXP data below come from the Danfoss product page and the VACON NXS/NXP Air-cooled Operating Guide.
| Parameter | Specification |
|---|---|
| Model | Danfoss VACON® NXP air-cooled AC drive |
| Power range 3 × 208–240 V | 0.55–90 kW |
| Power range 3 × 380–500 V | 1.5–1,200 kW (DriveSynch 1.5–4,000 kW) |
| Power range 3 × 525–690 V | 2.0–2,000 kW (DriveSynch 2.0–4,500 kW) |
| Input voltage tolerance / frequency | −10 % … +10 %; 45–66 Hz |
| Output frequency | 0–320 Hz (standard) |
| Control methods | U/f, open loop sensorless vector, closed loop vector |
| Overload | IL: 1.1 × IL, 1 min/10 min at 40 °C; IH: 1.5 × IH, 1 min/10 min at 50 °C |
| Acceleration / deceleration | 0.1–3,000 s |
| Switching frequency | 1–16 kHz depending on voltage and size |
| Mechanical versions | Wall-mounted FR4–FR9, standalone FR10–FR11, IP00 modules |
| Protection rating | IP21 / UL Type 1 standard; IP54 / UL Type 12 option |
| Ambient temperature | −10 °C (no frost) to +40 °C (IL) / +50 °C (IH), FR4–FR9 |
| Altitude | 100 % load up to 1,000 m; 1 % derating per 100 m above |
| Expansion | 5 slots for I/O, fieldbus and functional safety boards |
How to Order
For a Danfoss VACON NXP quotation, send Seven Star LLC the motor data, supply voltage, load type, required overload and any existing NXP type code. Our Muscat team will confirm the frame, enclosure and option boards, advise on delivery in Oman and the GCC, and supply the official Danfoss VACON NXS/NXP Air-cooled Operating Guide for your project file.
- Manual Danfoss VACON NXS/NXP Air-cooled Operating Guide (DPD00910) Download
