Danfoss 032U3615 EV210B 8 Solenoid Valve G 1/2 NC Direct

EV210B 8: a direct-operated 1/2 in valve for low-pressure water and brine

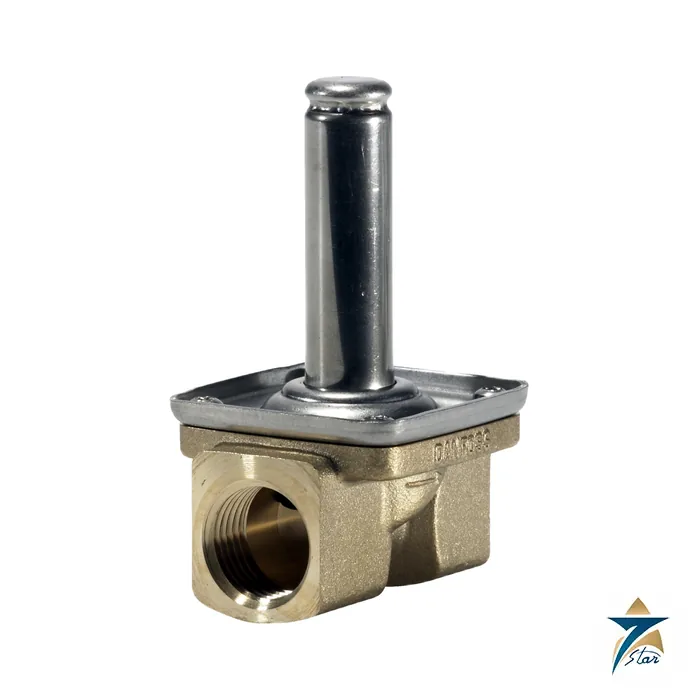

Danfoss 032U3615 is an EV210B 8, the compact direct-operated member of the B family. The armature moves the seat itself, so there is no servo diaphragm and no minimum differential pressure: the valve works from 0 bar up to 3 bar. Its 8 mm orifice, Kv of 1 m3/h and G 1/2 brass body make it suited to small flows.

The store lists the application as closed and drain, and the media recommendation as water and brine. The EPDM seal supports -30 to 120 C. It is a normally closed valve that is closed when the coil is de-energised.

Technical specifications

When direct operation is the right choice

Choose a direct-operated valve when the line pressure is low or varies close to zero, for example a header tank on a roof, a drip line, a condensate trap discharge or a gravity feed to a vessel. The servo versions in the EV220B range would not open reliably there.

A small orifice limits the flow, so check that 1 m3/h is enough at your allowed pressure drop. The store shows a working pressure of 3 bar, with a test pressure of 16 bar; the working pressure is the figure to design with. At 0.265 kg the valve is light, so the pipe can normally support it.

Installation and ordering

Mount the coil upright when possible and use a strainer, since an 8 mm orifice blocks easily. The coil and plug are separate parts. The installation guide AN20058642255000 gives the pressure tables for the EV210B sizes and the fitting instructions.

Seven Star LLC is an independent supplier in Muscat; send 032U3615 with the quantity and the coil voltage for a quotation. Confirm the medium, the pressure and the thread before ordering.

The small size makes this valve popular for dosing skids, laboratory equipment and test rigs, where it is often used in groups. Label each valve with the code and the coil voltage, because the identical brass bodies of the family are easy to confuse. If you need a larger flow or a higher pressure, ask for the EV220B family instead of oversizing this model.

Water quality matters at this size: a few grains of scale can keep the seat from closing fully.

For repeat purchases of 032U3615, tell us the quantity you expect to use each year and the delivery point in Oman. That helps us to plan the enquiry with the manufacturer channel and to give you a realistic lead time, which we confirm only when we quote.

We prefer to confirm the application before quoting 032U3615: the medium or load, the supply or pressure, the ambient temperature and the standards that apply. A short message with these points avoids the wrong variant being ordered and keeps the project schedule safe.

Documents and quotation

The attached Danfoss EV210B installation guide AN20058642255000 is the unaltered manufacturer file. Related products are listed under solenoid valves.
