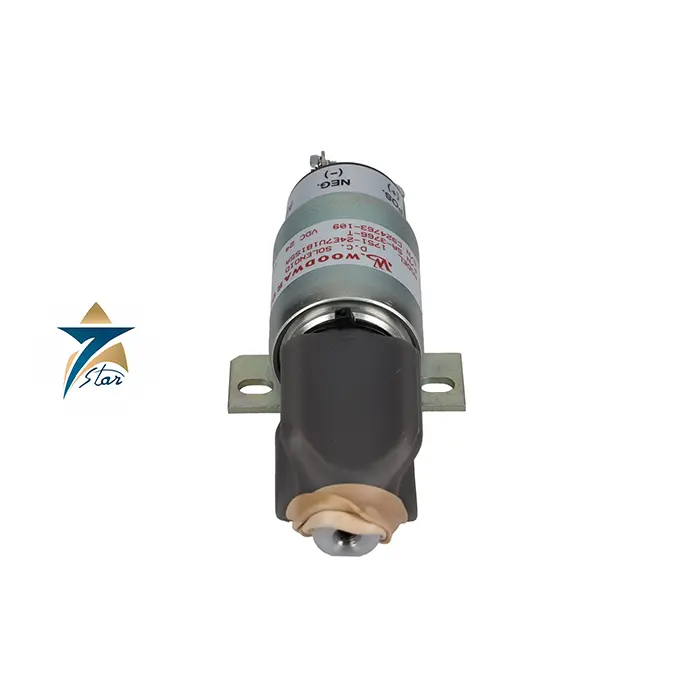

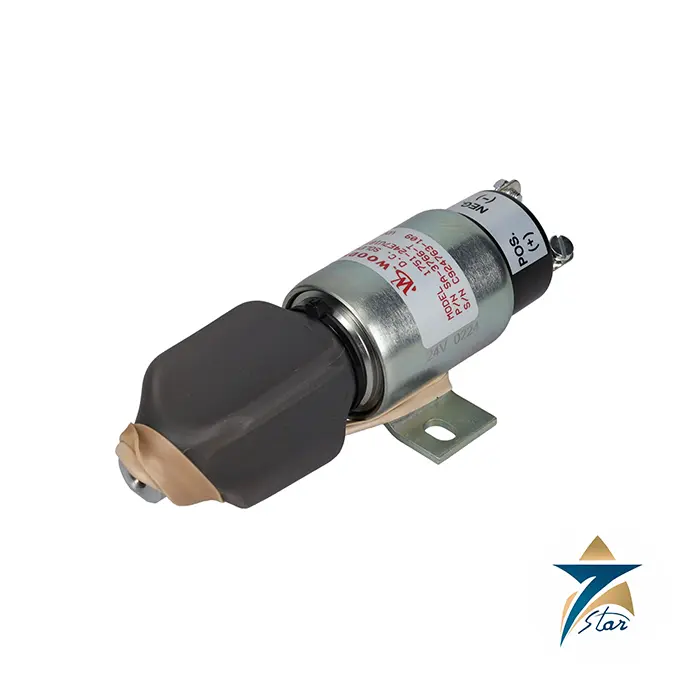

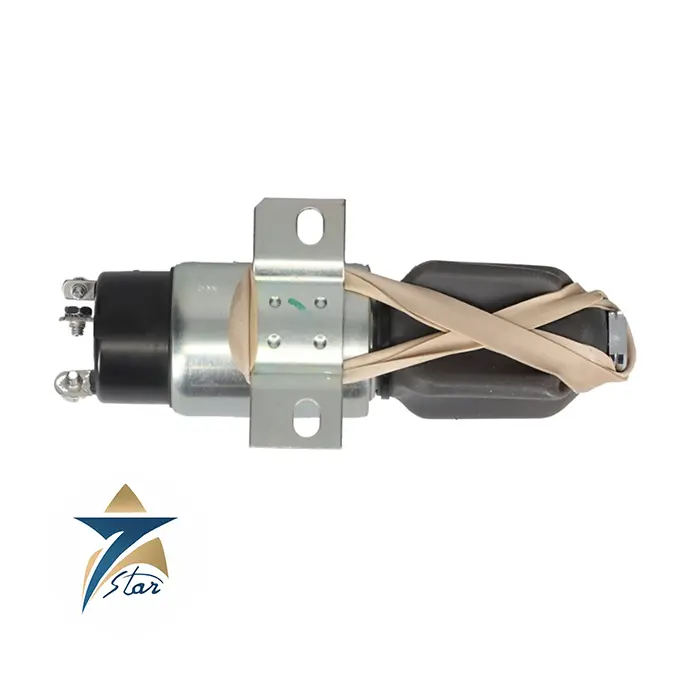

Komatsu 600-815-7550 – Stop Solenoid Assembly

Overview: Critical Engine Fuel Shut-Off Component

The Komatsu Stop Solenoid Assembly (Part No. 600-815-7550) — often referenced as a Stop Fuel Solenoid or Solenoid Ass’y — is a vital engine component used to control fuel delivery to Komatsu diesel engines and heavy machinery applications. When activated or de-energized by the engine control electrical system, this solenoid assembly interrupts fuel flow, enabling secure and controlled engine shutdown.

Designed for 24 V industrial power systems, this solenoid is engineered to deliver rapid and reliable actuation even in harsh operating conditions, including vibration, temperature changes, and dusty construction environments. It interfaces directly with engine fuel systems and control harnesses to provide a dependable shutdown function that protects the engine and supports worker safety.

Function & Operation

A stop solenoid functions as an electromechanical valve positioned within the fuel system. When the engine’s electrical control unit cuts power to the solenoid, the plunger mechanism instantly closes or restricts fuel flow, causing the engine to stop. This mechanism is essential for:

• Emergency engine shutdown

• Operator-initiated stop commands

• System fault/over-pressure response

• Preventing damage from fuel overrun

The Komatsu 600-815-7550 solenoid assembly is built to maintain consistent performance under heavy use and is often replaced as part of regular maintenance or engine diagnostic procedures.

Design & Construction

This stop solenoid assembly typically features:

• 24 V DC electromechanical coil, optimized for industrial diesel engine control circuits.

• Three-terminal electrical connector for secure power and signal interfacing.

• Robust metal housing designed to resist environmental exposure and vibration.

• Compact, serviceable design allowing easy replacement without extensive engine disassembly.

Aftermarket brands (e.g., KMP Brand, YearnParts, Jeenda) are made to honor OEM compatibility and performance expectations, supplying quality alternatives worldwide.

Applications & Compatibility

The 600-815-7550 Stop Solenoid Assembly is compatible with a wide range of Komatsu machines and engine variants, including but not limited to:

• Excavators: PC75UU-3, PC78US-5

• Other PC-series excavators: PC60-7E, PC78UU-6

• Engine Models: Komatsu 4D102E, S6D102E, SA6D125E

• Other heavy machines: bulldozers and loaders requiring fuel shut-off control

These applications benefit from the solenoid’s ability to support safe shutdown, prevent fuel run-on, and minimize engine damage during emergency or controlled stops.

Installation & Integration

Installing the solenoid assembly involves:

1. Accessing the engine fuel control module or solenoid mount

2. Disconnecting the electrical connector and wiring harness

3. Removing the old assembly and installing the replacement with proper torque

4. Reconnecting wiring terminals and testing shutdown functionality

Correct installation ensures the part reacts instantly to control signals and performs fuel interruption as designed, supporting both safety and compliance with Komatsu engine specifications.

Request a Quote for Komatsu 600-815-7550 – Stop Solenoid Assembly

Request a quote for the Komatsu Stop Solenoid Assembly – 600-815-7550 to ensure reliable fuel shut-off and safe engine control in your heavy equipment. Contact Seven Star LLC for a quotation, availability, and support.

How to Confirm You Have the Right Stop Solenoid

Komatsu fuel shut-off solenoids exist in many variants that differ in voltage, plunger stroke, mounting pattern and connector type, and several of them look almost identical. Before ordering, check the following:

• The part number stamped or labelled on the existing solenoid body, and whether it has been superseded in the Komatsu parts book for your machine.
• The machine model and serial number, together with the engine model and engine serial number from the engine nameplate.
• The system voltage of the machine (this assembly is a 24 V unit) and the number of terminals on the connector.
• The mounting position and linkage arrangement on the injection pump, since some engines use a pull-type linkage with a specific rod length.

If the old part is unreadable, a clear photo of the solenoid, its connector and the pump side of the engine usually lets us confirm the correct assembly.

Technical Specifications

Testing and Troubleshooting

A failed stop solenoid typically shows up as an engine that will not start, an engine that starts and dies once the key is released, or an engine that will not shut down. Common checks before replacement:

• Confirm battery voltage at the solenoid connector during cranking and with the key on; a weak supply or corroded terminal can mimic a solenoid fault.
• Listen or feel for the plunger pulling in when power is applied. No movement points to the coil, the wiring or the relay feeding it.
• On three-terminal types, check both the pull-in and hold circuits, because a failed hold winding often lets the engine run only while cranking.
• Inspect the linkage for binding, dirt or incorrect adjustment that stops the fuel control lever reaching its full run position.

Check the relay and fuse circuit too; a solenoid that has burned out repeatedly is often a sign that the pull-in winding is being held energized for too long.

Fitting Tips

When installing the new unit, set the linkage so the plunger bottoms fully when energized without pre-loading the fuel control lever, then confirm the engine stops cleanly from the key and from any emergency stop in the cab. Protect the connector with a suitable seal against dust and washdown water.

Use on Construction and Quarry Fleets in Oman

Excavators, loaders and dozers working on construction, quarrying and oilfield civil works across Oman and the GCC operate in heat, fine dust and heavy vibration, all of which shorten the life of electrical engine components. Fleet workshops commonly keep stop solenoids as a stocked item, because a failed unit can take a machine out of service immediately.

Sourcing Through Seven Star LLC

Seven Star LLC supplies genuine Komatsu parts and clearly identified OEM-compatible alternatives, stating which one is being quoted. Send us the part number, machine model and serial number through a quote request and we will confirm fitment and availability.
