Brand: Danfoss

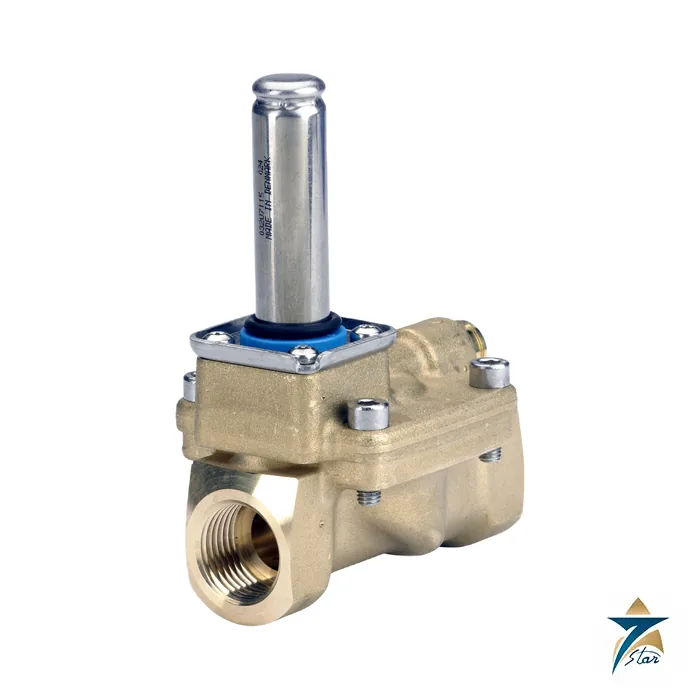

Danfoss 032U7115 EV220B 15 Solenoid Valve G 1/2 NC EPDM
Description
EV220B 15: the 1/2 in brass servo valve for small water and brine lines
Danfoss 032U7115 is the smallest-bore EV220B body in this lane: a normally closed, 2/2-way valve with a 15 mm orifice, G 1/2 internal threads and a Kv of 4 m3/h. The servo diaphragm design uses line pressure to hold the valve open or shut, so the coil only has to lift a small pilot, and that is why the unit handles pressures up to 16 bar with an actuator of only 13.5 mm.
The EV220B 15 to 50 range is recommended by Danfoss for water, brine and other neutral media. Brass body and EPDM seals cover water and glycol, and the store entry notes that the same valve can handle steam up to 4 bar when the temperature limits are respected.
Technical specifications
| Parameter | Specification |
|---|---|
| Danfoss code number | 032U7115 |
| Type | EV220B 15 |
| Function | Normally closed (NC), 2/2-way, servo-operated |
| Operation | Servo-operated (diaphragm) |
| Connection | 1/2 G (ISO 228-1), brass body |
| Orifice | 15 mm |
| Kv / Cv | 4 m3/h / 4.6 gal/min |
| Differential pressure range | 0.3 bar to 16 bar |
| Max. working / test pressure | 16 bar / 24 bar |
| Medium temperature | -30 C to 120 C |
| Seal material | EPDM |
| Opening / closing time, water (est.) | 40 ms / 350 ms |
| Max. viscosity | 50 cSt |
| Approvals as listed | DNVGL-CG-0339; GL; UA |
| Net weight | 0.69 kg |
| EAN | 5702423006496 |
Flow, response and minimum pressure
Kv 4 m3/h is about 4.6 gal/min in Cv terms, enough for a coffee machine, a small chiller make-up line, spray rinse or a condensate drain. Because the valve is servo-assisted, it needs at least 0.3 bar of differential pressure to open; at lower pressure differences use a direct-acting valve like the EV210B.
Danfoss estimates 40 ms for opening and 350 ms for closing on water. The slower closing action reduces water hammer, but the figure is an estimate that depends on the installation, so do not use it as a safety timing.
Coil, installation and ordering
The valve is supplied without a coil. A Danfoss clip-on coil of the correct voltage and enclosure must be ordered separately, and the coil type determines the allowed ambient temperature, which is limited to 80 C for the valve. Fit a strainer upstream, because particles lodge in the pilot orifice, and install with the arrow on the body in the direction of flow.
Confirm the voltage, the medium, the temperature and the differential pressure before ordering. Seven Star LLC is an independent supplier in Muscat and can quote 032U7115 with a matching coil on request.
In practice this size is chosen for machines rather than mains: beverage and ice equipment, spray bars, small humidifiers, boiler feed trims and chilled-water bypass lines. The brass body resists most potable and process waters, while the EPDM seal copes with glycol mixtures. If the water is hard or carries scale, plan for periodic cleaning of the pilot channel and keep a service kit on the shelf; the spare parts are listed by Danfoss as serviceable items.
Please treat the values on this page as a summary of the manufacturer data and verify them against the attached document for your application. If anything in your enquiry does not match the page, tell us and we will check it before a quotation is issued for 032U7115.
Documents and quotation
The attached document is the Danfoss EV220B 15-50 data sheet AI236986444669. The family is listed under solenoid valves.
Datasheets & Documents
- Data Sheet Danfoss EV220B 15-50 Solenoid Valve Data Sheet AI236986444669 (manufacturer, unaltered) Download
Reviews (0)
About brand
From its headquarters in Nordborg, Denmark, where it was founded in 1933, Danfoss makes the drives, valves and sensors found in pump rooms, chiller plants and cold stores. Its blue VLT frequency converters are probably the most familiar of them.
Seven Star LLC lists Danfoss VLT drives, pressure transmitters, refrigeration valves and HVAC control valves, and supplies them to contractors and plant owners in Oman against the exact code number on the label.
Danfoss product families on this page
Among the VLT drives listed, three are each aimed at a different duty: the VLT HVAC Drive FC 102 for fans and building services, the VLT AQUA Drive FC 202 for water and wastewater pumping, and the VLT AutomationDrive FC 302 for general industrial machinery. The LCP 12 control panel with potentiometer (code number 132B0101) is also listed; Danfoss specifies it for the VLT Micro Drive FC 51. In pressure measurement there are the MBS 3000 general purpose transmitter and the MBS 5100. Valves include the AB-QM pressure independent control valve in DN 15 to DN 250, the EVR 25 servo-operated solenoid valve and the ICV pilot-operated valve for industrial refrigeration.
Where Danfoss equipment is used
District cooling and chilled water plants, air handling units, booster and irrigation pump stations, desalination and wastewater works, ammonia and CO2 refrigeration plants, food storage and marine engine rooms are the usual places. Demand in the GCC is driven largely by cooling and water.
Ordering Danfoss parts: what we need
Every Danfoss product has a code number, and drives also carry a long type code string on the label. Send both. For a drive we need the motor power and current, the mains voltage, enclosure rating, any fieldbus or option card and the filter class. For an MBS transmitter give the pressure span, output signal, pressure connection and electrical connection. For valves give the size, connection type, coil voltage where relevant and the refrigerant or medium.
Browse Danfoss products by category: AC Drives, Pressure Instrumentation, Control Valves, Solenoid Valve.
Related products
Frequently Asked Questions
What is Danfoss 032U7115?
An EV220B 15 solenoid valve: NC, 2/2-way, G 1/2 brass body, 15 mm orifice, Kv 4 m3/h, EPDM seals.
Is a coil included?
No. Choose and order the coil separately for the voltage and enclosure you need.
What is the minimum pressure drop?
0.3 bar, because the valve is servo-operated.
What media suit it?
Water and brine are recommended; neutral media in general, with steam only up to the 4 bar limit stated by Danfoss.
Which document is included?
The EV220B 15-50 data sheet AI236986444669. Confirm the coil and voltage before ordering.
