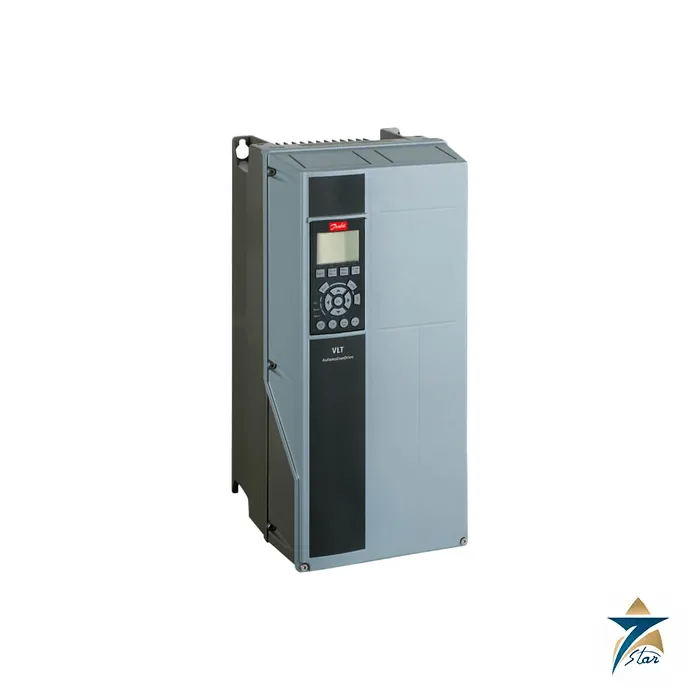

Danfoss VLT AQUA Drive FC 202 Variable Frequency Drive

Overview

Danfoss VLT AQUA Drive FC 202 is a variable frequency drive purpose-built for water and wastewater applications, covering a power range from 0.25 kW up to 90 kW across 200-240V, 380-500V, and 525-600V supply voltages. Unlike a general-purpose drive adapted for pumping duty, the AQUA Drive is engineered from the ground up around the specific failure modes of water utilities and building water systems — dry-running pumps, clogged impellers, water-hammer risk, and cascaded multi-pump stations — and includes dedicated software functions that address each one without requiring an external PLC or additional controller hardware.

As a regional supplier of Danfoss products, Seven Star LLC proudly supplies the VLT AQUA Drive FC 202 to industrial and municipal buyers across Oman and the wider GCC, with application engineering support delivered from within the region. Municipal water authorities, district cooling operators, and RO desalination plants across Muscat, Sohar, and Salalah rely on this traceable supply chain to keep AQUA Drive-controlled pumping stations running reliably.

Operating Principle

The Danfoss VLT AQUA Drive FC 202 operates as a pulse-width-modulated (PWM) frequency converter: it rectifies incoming AC mains to a DC bus, then uses insulated-gate bipolar transistors (IGBTs) to synthesize a variable-frequency, variable-voltage AC output that continuously adjusts motor speed to match actual process demand. Because centrifugal pump power consumption follows the cube of speed, even a modest reduction in speed to match real-time flow or pressure setpoints yields a disproportionately large energy saving compared with a fixed-speed pump throttled by a control valve, which is the core efficiency argument for variable-speed pumping in any water or HVAC circulation system.

What distinguishes the AQUA Drive’s operating principle from a general-purpose VFD is its built-in process intelligence layer. A no-flow/dry-pump detection algorithm monitors motor power and speed signatures to shut a pump down before it runs dry and damages seals or bearings; an end-of-curve detection function protects against operating a pump outside its designed hydraulic curve; a pipe-fill function ramps flow gradually into empty pipework to prevent water-hammer surge; and a built-in cascade controller sequences up to eight pumps in a station to alternate duty and match aggregate output to demand, all executed inside the drive itself without external logic.

Engineering Design of the Danfoss VLT AQUA Drive FC 202

Mechanically and electrically, the Danfoss VLT AQUA Drive FC 202 shares its rugged enclosure and backplate-mounting architecture with the wider Danfoss VLT platform, available in IP20/21 chassis form for panel integration or IP54/55/66 enclosed form for direct installation in a pump room or outdoor pump station without an additional cabinet. The drive is fitted with an integral RFI filter and, on most ratings, a built-in DC choke to suppress harmonic distortion back onto the supply network, which matters in a utility or industrial installation where multiple drives share a common transformer.

The control interface uses the same Local Control Panel (LCP) and menu structure found across the VLT family, so a plant technician already trained on a Danfoss AutomationDrive or HVAC Drive can operate an AQUA Drive with no additional training. Communication options include Modbus RTU as standard with Profibus, Profinet, EtherNet/IP, and BACnet available as fieldbus options, allowing the drive to integrate directly into a SCADA system or building management system used to supervise a water treatment plant, lift station, or district cooling pump house.

Key Features

The VLT AQUA Drive FC 202 packages water-industry-specific intelligence into a standard VLT chassis, reducing the need for external control logic. Its key features include:

• Power range from 0.25 kW to 90 kW across 200-240V, 380-500V, and 525-600V supply options.
• Built-in dry-pump and no-flow detection that stops a pump before seal or bearing damage occurs.
• End-of-curve detection to prevent sustained operation outside the pump’s designed hydraulic curve.
• Pipe-fill function that ramps flow gradually into empty pipework to prevent water-hammer damage.
• Integrated cascade controller sequencing up to eight pumps without an external PLC.
• IP20/21 chassis or IP54/55/66 enclosed variants for panel or direct field installation.
• Integral RFI filter and DC choke on most ratings for harmonic and supply-quality compliance.
• Modbus RTU as standard, with Profibus, Profinet, EtherNet/IP, and BACnet options for SCADA/BMS integration.

Industrial Applications

The Danfoss VLT AQUA Drive FC 202 is specified wherever pumped water or wastewater flow must be controlled precisely and efficiently, including municipal water supply and distribution pumping stations, wastewater lift stations and treatment plant process pumps, RO desalination high-pressure and booster pump control, district cooling chilled-water and condenser-water circulation, and irrigation and agricultural pumping schemes. In each case, the Danfoss VLT AQUA Drive FC 202’s built-in process functions reduce energy consumption, reduce mechanical wear from water hammer and dry running, and simplify multi-pump station control without extra hardware.

As the trusted supplier for Danfoss, Seven Star LLC supplies the VLT AQUA Drive FC 202 to municipal water authorities, RO desalination operators, and district cooling providers across the Sohar and Salalah economic zones and throughout the Sultanate of Oman, as well as industrial and commercial buyers across the wider GCC. Because water and wastewater infrastructure projects in the region increasingly specify variable-speed pumping as standard, Seven Star LLC’s genuine stock and technical support ensure these projects are commissioned on schedule with genuine, factory-warranted drives.

Technical Specifications

The Danfoss VLT AQUA Drive FC 202 table below summarizes the principal electrical and functional parameters, and every Danfoss VLT AQUA Drive FC 202 unit supplied by Seven Star LLC is built to this specification.

Request a Quote for Danfoss VLT AQUA Drive FC 202

For the Danfoss VLT AQUA Drive FC 202, Seven Star LLC invites water utility engineers, MEP contractors, and plant managers in Oman and across the GCC to submit a formal RFQ for the Danfoss VLT AQUA Drive FC 202. Common power ratings and enclosure types are supplied on request with lead time confirmed at quotation, complete technical datasheets are available on request, and our instrumentation and drives division can advise on cascade configuration, enclosure rating, and fieldbus selection for your specific pumping station. In Oman and the GCC, Seven Star LLC guarantees genuine factory-warranted drives, certified spare parts, and locally based technical support for every VLT AQUA Drive FC 202 supplied.
