Brand: Böhler Welding

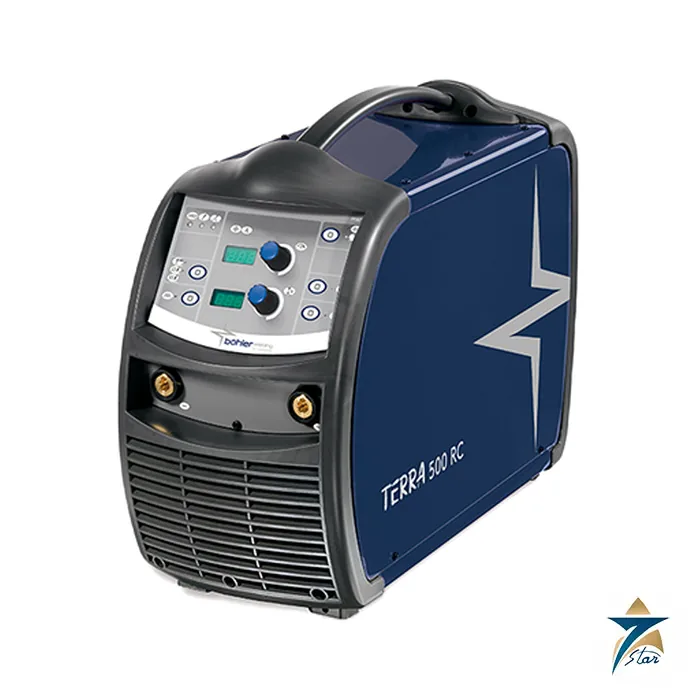

Böhler Welding TERRA 500 RC Stick (MMA) Welding Machine
Description
A 500 A stick welding inverter for heavy fabrication
The Böhler Welding TERRA 500 RC is a three-phase MMA (stick) welding inverter with an adjustment range of 3 to 500 A. Böhler Welding describes it as easy to use, simply switch on and weld, and ideal for gouging. The machine also provides a power output for small low-voltage electric tools such as an angle grinder, which the data sheet calls really useful on site.
Welding functions listed are Hot Start, Arc Force and DPC, and a voltage reducing device (VRD) is included.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Böhler Welding (voestalpine) |
| Model | TERRA 500 RC |
| Process | MMA (stick); suitable for gouging |
| MMA functions | Hot Start, Arc Force, DPC |
| Inverter technology | Inverter ThreeLevel |
| Communication | CANBUS digital communication, 500 Kbs |
| Control panel | LED-based; welding parameters shown digitally in A and V |
| VRD | Included |
| Low-voltage tool supply (ELV) | Included, 12 to 60 V |
| Power supply (50/60 Hz) | 3 x 400 V +/- 15 % |
| Maximum input power | 29.7 kVA |
| Maximum input current | 42.1 A |
| Efficiency | 90 % |
| Adjustment range | 3 to 500 A |
| Open circuit voltage | 61 V DC |
| Slow blow line fuse | 40 A |
| Power supply cable | 4 x 6 mm2, 5 m |
| Duty cycle at 40 deg C | 50 % at 500 A; 60 % at 470 A; 100 % at 420 A |
| Duty cycle at 25 deg C | 80 % at 500 A; 100 % at 470 A |
| Protection class / insulation class | IP23S / H |
| Dimensions / weight | 620 x 240 x 460 mm / 27.3 kg |
| Supplied equipment | Stick electrode holder 70 mm2, 4 m; work cable 70 mm2, 4 m |
| Remote control options | RC 100 / RC 100 MP / RC 180 / RC 200 |
| Software upgrade / validation | Proprietary software / validation program included |
Hot start, arc force and gouging
Hot Start adds a short current boost at the beginning of the weld to ignite basic and cellulosic coatings reliably, and Arc Force raises the current when the arc voltage drops, which prevents the electrode from sticking. DPC is listed as a further function in the sheet. For pipe and structural work the 3 to 500 A range covers small-diameter electrodes up to heavy-duty rods, and the data sheet marks the machine as ideal for gouging, where its 100 % rating of 420 A at 40 degrees C and 470 A at 25 degrees C applies.
Remote controls from the RC series are listed for adjusting current at the work position.
Site use and safety
The VRD lowers the open-circuit voltage in confined or damp conditions according to the relevant standard, and the ELV output gives a low-voltage tool supply of 12 to 60 V without a separate transformer. A 40 A fuse and a 4 x 6 mm2 supply cable are listed; generator sets feeding the machine should be sized above the 29.7 kVA maximum input power. Electrode type, polarity and amperage come from the electrode manufacturer data and the welding procedure.
Documents and quotation
The attached Böhler Welding technical data sheet lists the equipment options, technical features and technical data for the TERRA 500 RC. For a quotation please send the application and material, the wire or electrode type and diameter, the mains supply available on site, the cooling method and torch you need, and the quantity. Related machines are listed under Stick (MMA) Welding Machines.
Datasheets & Documents
- Datasheet Böhler Welding TERRA 500 RC technical data sheet (EN) Download
Reviews (0)
About brand
Böhler Welding is the welding consumables brand of voestalpine Böhler Welding, part of the voestalpine group, with a portfolio that covers stick electrodes, TIG rods, solid wires, gas-shielded and self-shielded flux-cored wires and submerged-arc wires and fluxes. The company states more than 100 years of experience. Seven Star LLC, an independent supplier in Muscat, lists Böhler Welding consumables and welding machines, including pipeline electrodes, and sources Böhler Welding consumables for fabricators and pipeline contractors.
Böhler Welding product groups
Beyond the consumables above, Böhler Welding lists strip cladding, wire arc additive manufacturing, metal powders, arc spraying cored wires, ceramic weld backing, brazing consumables and welding automation such as orbital welding and collaborative robots. The pipeline range includes cellulosic FOX CEL electrodes and basic vertical-down FOX BVD electrodes for large-diameter line pipe.
Ordering Böhler Welding consumables: what we need
Give the product name, the AWS or EN classification, the diameter and length, and the packaging you need. For pipeline electrodes also state the pipe grade, wall thickness, welding position and whether sour-service test values are required, because the Böhler Welding data sheets note that some test values are available on request.
Related products
Frequently Asked Questions
What is the TERRA 500 RC?
A three-phase MMA (stick) welding inverter from Böhler Welding with a 3 to 500 A range.
Can it be used for gouging?
Yes. The data sheet describes the machine as ideal for gouging.
Does it include VRD?
Yes. A voltage reducing device is listed as included.
Can it run small power tools?
It has a low-voltage supply function of 12 to 60 V for small electric tools such as an angle grinder.
What are the supplied cables?
A stick electrode holder and a work cable, each 70 mm2 and 4 m long.
