Böhler Welding SABER 70 CHP Plasma Cutting Machine
Description
A portable plasma cutter with synergic cutting programs

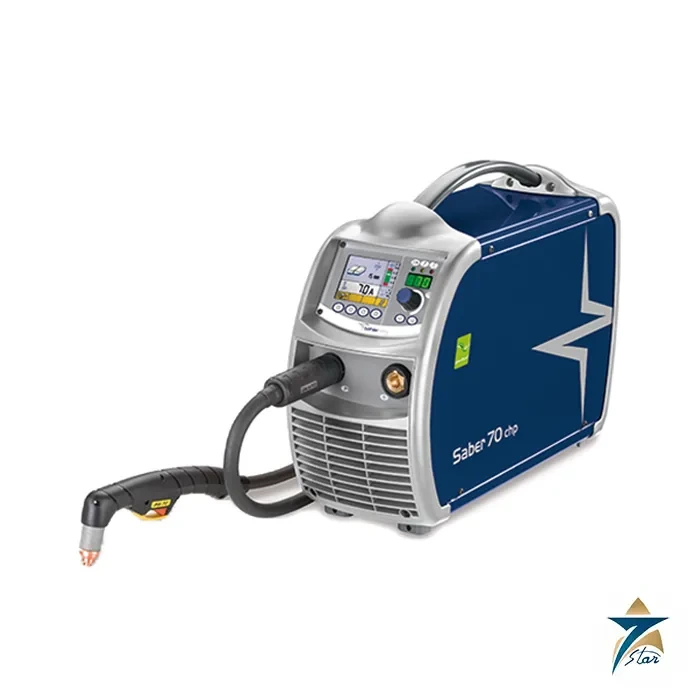

The Böhler Welding SABER 70 CHP is a plasma cutting machine with an inverter power source and the Böhler PlasmaDrive process. Böhler Welding points to a large 3.5 in colour LCD display, synergic cutting programs for different materials and plasma gouging as the main benefits. The synergic programs cover steel, stainless steel (CrNi) and aluminium in the 1 to 35 mm thickness range, and 64 programs can be stored.
The machine runs on 3 x 400 V or 3 x 230 V supplies and is supplied with the SP70 torch and a 25 mm2, 4 m work cable. Arc ignition in lift mode is listed as a feature.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Böhler Welding (voestalpine) |
| Model | SABER 70 CHP |
| Process | Plasma cutting, PlasmaDrive; plasma gouging |
| Inverter technology | Inverter greenWave |
| Communication | CANBUS digital communication, 500 Kbs |
| Control panel | Colour LCD, 3.5 in |
| Synergic cutting programs | Steel, CrNi, Al, 1 to 35 mm |
| Program storage | 64 |
| Lift mode arc striking | Yes |
| Power supply (50/60 Hz) | 3 x 400 V / 3 x 230 V +/- 15 % |
| Maximum input power | 10.4 kVA (400 V) / 8.0 kVA (230 V) |
| Maximum input current | 15.0 A / 20.0 A |
| Power factor / efficiency | PF = 0.95 / 89 % |
| Slow blow line fuse | 16 A / 20 A |
| Open circuit voltage | 252 V DC |
| Current range | 20 to 70 A (400 V) / 20 to 55 A (230 V) |
| Cutting performance, carbon steel, 400 V | Separation 35 mm; maximum cut 28 mm; recommended cut 20 mm; perforation 15 mm |
| Duty cycle at 40 deg C | 50 % at 70 A; 60 % at 65 A; 100 % at 55 A |
| Duty cycle at 25 deg C | 100 % at 60 A |
| Protection class / insulation class | IP23S / H |
| Dimensions / weight | 570 x 190 x 400 mm / 18.6 kg |
| Power supply cable | 4 x 2.5 mm2, 5 m |
| Supplied equipment | Torch SP70; work cable 25 mm2, 4 m |
What the thickness figures mean
Böhler gives four thickness values for carbon steel at 400 V. The separation cut of 35 mm is the largest thickness that can be severed, while the maximum cut of 28 mm and recommended cut of 20 mm are the figures to use when quality and speed matter. Perforation, the thickness the arc can pierce without starting from an edge, is 15 mm. On a 230 V supply the current range drops to 20 to 55 A, so the cutting performance values should be read as 400 V values.
Typical uses and installation
With 70 A maximum current and an 18.6 kg body, the machine suits maintenance cutting, sheet and plate preparation, and plasma gouging in workshops and on site. Consumable parts, gas supply and compressed-air quality are not covered in the data sheet; confirm them against the torch documentation before ordering. Plan the supply as a three-phase connection with a 16 A fuse at 400 V or 20 A at 230 V.
Documents and quotation
The attached Böhler Welding technical data sheet lists the equipment options, technical features and technical data for the SABER 70 CHP. For a quotation please send the application and material, the wire or electrode type and diameter, the mains supply available on site, the cooling method and torch you need, and the quantity. Related machines are listed under Plasma Cutting Systems.
