Brand: Böhler Welding

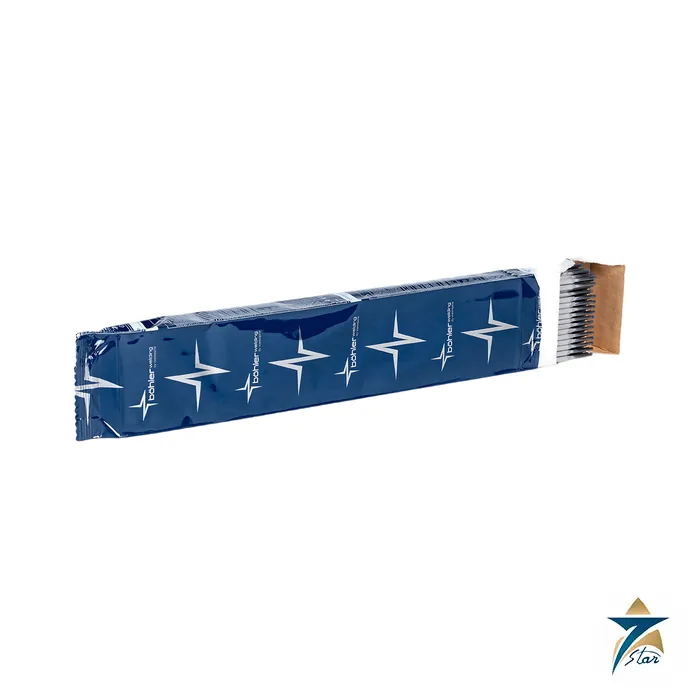

Böhler FOX CEL+ E6010 Cellulosic Pipe Welding Electrode
Description
E6010 cellulosic electrode for root passes on large-diameter pipe
The Böhler FOX CEL+ is a cellulosic stick electrode classified E6010 under AWS A5.1 and E 38 2 C 2 1 under EN ISO 2560-A. Böhler describes it for vertical-down welding of large-diameter pipelines and recommends it above all for root passes, on DC positive polarity, in both the vertical-down and vertical-up positions. The data sheet credits it with good gap bridging, a powerful arc with good penetration, smooth root passes at high travel speed, and a high safety margin against piping, the hollow bead defect, and against undercut.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Böhler Welding (voestalpine) |
| Product | FOX CEL+ (6010) |
| AWS classification | A5.1 / SFA-5.1 E6010; A5.1M E 4310 |
| EN ISO classification | 2560-A E 38 2 C 2 1; 2560-B E 43 10 A |
| Coating type | Cellulosic |
| Polarity | DC positive; DC negative possible for root pass |
| All-weld metal analysis, typical | C 0.17 %, Si 0.15 %, Mn 0.6 % |
| Yield strength, typical (minimum) | 65 ksi (48 ksi) |
| Tensile strength, typical (minimum) | 75 ksi (68 ksi) |
| Elongation, typical (minimum) | 26 % (22 %) |
| Charpy V-notch, typical | 77 ft-lbf at 68 °F; 70 at 32 °F; 48 at 0 °F; 37 at -20 °F |
| Sizes and current | 3/32 in x 12 in: 50 to 90 A; 1/8 in x 14 in: 80 to 130 A; 5/32 in x 14 in: 120 to 180 A |
| Redrying | Not allowed |
| Approvals | CE |
| Data sheet edition | 10/2020 |
Pipe grades and sour-gas use
The data sheet lists S235JR to S355J2G3 structural steels, P235GH and P265GH pressure steels, L210NB to L390NB and L290MB to L390MB line pipe, and API 5L grades A, B, X42, X46, X52 and X56. For the root pass the range extends to L555NB and L555MB, which is API 5L up to X80. Böhler states that FOX CEL+ can be used in sour gas applications, with HIC testing according to NACE TM-02-84, and that SSC test values are available on request.
Using it on a pipeline job
Cellulosic electrodes are not redried; the data sheet says redrying is not allowed, so open packs should be kept as the manufacturer instructs. Current ranges grow with diameter, from 50 to 90 A for the 3/32 in size used on thin walls up to 120 to 180 A at 5/32 in. Root passes on DC positive give deep penetration, while negative polarity is possible where the procedure calls for it. Match the electrode to the welding procedure specification for the line pipe grade, and confirm hot, filler and cover pass electrodes separately, since the same data sheet recommends FOX CEL+ mainly for the root.
Because the product is classified E6010 under AWS A5.1, it also fits procedures that call for a standard E6010 root electrode on carbon steel pipe; confirm the class and the diameter against the welding procedure specification before ordering a quantity for a project.
Documents and quotation
The attached Böhler product data sheet gives classifications, analysis, mechanical values and operating data. For a quotation send the diameter and length, quantity and packaging, the pipe grade and wall thickness, and whether SSC values are required. Related items are listed under cellulosic pipeline electrodes and all welding electrodes.
Datasheets & Documents
- Datasheet Böhler Welding FOX CEL+ product data sheet (EN, US edition) Download
Reviews (0)
About brand
Böhler Welding is the welding consumables brand of voestalpine Böhler Welding, part of the voestalpine group, with a portfolio that covers stick electrodes, TIG rods, solid wires, gas-shielded and self-shielded flux-cored wires and submerged-arc wires and fluxes. The company states more than 100 years of experience, 50 subsidiaries and 4,000 sales partners worldwide. Seven Star LLC, an independent supplier in Muscat, lists Böhler Welding pipeline electrodes and sources Böhler Welding consumables for fabricators and pipeline contractors.
Böhler Welding product groups
Beyond the consumables above, Böhler Welding lists strip cladding, wire arc additive manufacturing, metal powders, arc spraying cored wires, ceramic weld backing, brazing consumables and welding automation such as orbital welding and collaborative robots. The pipeline range includes cellulosic FOX CEL electrodes and basic vertical-down FOX BVD electrodes for large-diameter line pipe.Ordering Böhler Welding consumables: what we need
Give the product name, the AWS or EN classification, the diameter and length, and the packaging you need. For pipeline electrodes also state the pipe grade, wall thickness, welding position and whether sour-service test values are required, because the Böhler Welding data sheets note that some test values are available on request.
Related products
Frequently Asked Questions
What AWS class is the Böhler FOX CEL+?
AWS A5.1 E6010, with EN ISO 2560-A E 38 2 C 2 1.
Which welding passes is FOX CEL+ recommended for?
Böhler recommends it especially for root pass welding on DC positive polarity in vertical-down and vertical-up positions.
Can FOX CEL+ be redried?
No. The data sheet states that redrying is not allowed.
What diameters and currents are listed?
3/32 in x 12 in at 50 to 90 A, 1/8 in x 14 in at 80 to 130 A and 5/32 in x 14 in at 120 to 180 A.
Is FOX CEL+ approved for sour service?
The data sheet says it can be used in sour gas applications with HIC testing per NACE TM-02-84, and SSC values are available on request.
