Brand: Böhler Welding

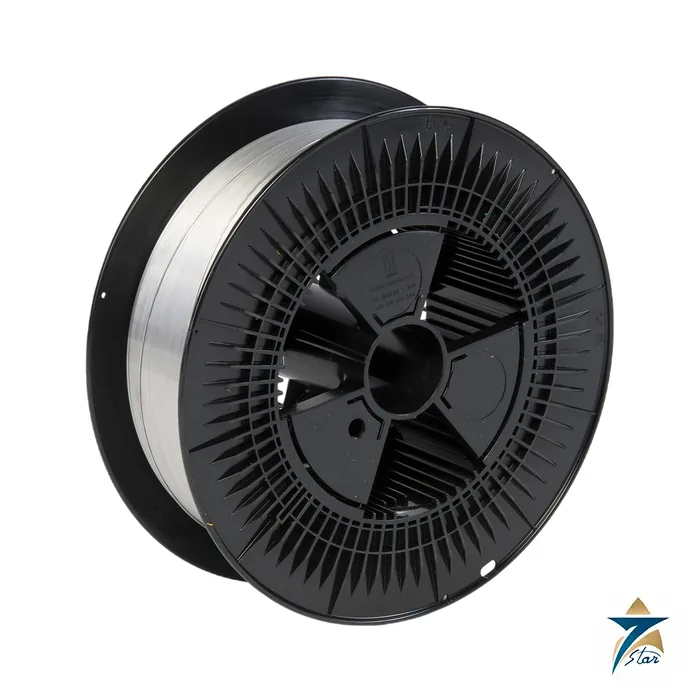

Böhler FOXcore 316L-T1 E316LT1-4 Stainless Flux-Cored Wire
Description
Rutile 316L flux-cored wire for all-position stainless fabrication
The Böhler FOXcore 316L-T1 is a rutile flux-cored wire of type 316L / T 19 12 3 L P, classified AWS A5.22 E316LT1-4(1). Böhler Welding designed it for 316L / 1.4404 and 1.4432 type stainless steels with good resistance to general, pitting and intergranular corrosion in chloride-containing environments, intended for severe service such as dilute hot acids. It is also suitable for titanium- or niobium-stabilised 316Ti / 1.4571 steels for service temperatures not exceeding 750 °F; above that a niobium-stabilised consumable such as FOXcore 318-T1 is required. The wire can be used in all positions without changing parameters, with a fast-freezing slag, very good slag detachability, almost no spatter and a wide arc for even root and side-wall penetration.
Technical specifications
| Parameter | Specification |
|---|---|
| AWS classification | A5.22 / SFA-5.22 E316LT1-4(1) |
| EN ISO 17633-A / -B | T 19 12 3 L P M21 (C1) 1 / TS 316L-F M21 (C1) 0 |
| Typical analysis, wt % | C 0.03; Si 0.7; Mn 1.5; Cr 19.0; Ni 12.0; Mo 2.7; ferrite 4 to 13 FN |
| Yield strength Rp0.2, as welded | 59 ksi typical (minimum 46) |
| Tensile strength Rm, as welded | 80 ksi typical (minimum 74) |
| Elongation A (L0=5d0) | 34 % typical (minimum 30) |
| Impact energy | 48 ft-lbf at 68 °F; 41 at 0 °F; 30 at -180 °F (minimum 24) |
| Hardness | 210 HB |
| Service temperature | -180 °F to 750 °F; scaling temperature about 1560 °F in air |
| Diameters and current | 0.035 in: 100 to 160 A; 0.045 in: 150 to 250 A; 1/16 in: 200 to 350 A |
| Gas and polarity | Ar plus 15 to 25 % CO2 recommended; 100 % CO2 possible with about 2 V more; gas flow 30 to 50 scfh; DC+ |
| Heat input and interpass | Maximum 50 kJ/in; interpass maximum 300 °F; stick-out 5/8 to 3/4 in |
| Approvals | TÜV (09118), DB (43.014.24), ABS, BV (M21 and 1.2 mm), CWB, DNV GL, LR (M21), CE |
Using the wire in practice
No pulsing is needed; the data sheet prefers a backhand (drag) technique with a work angle of about 80 degrees on a standard GMAW power source. Post-weld heat treatment is generally not needed and solution annealing at 1920 °F with water quench is mentioned only for special cases. For flat and horizontal positions Böhler points to FOXcore 316L-T0 DG instead. In a mixed stainless programme this wire pairs with the for buffer layers and the
electrode for sheet work, and the rod is the TIG root choice.| Related Böhler Welding cored wire | Classification | Typical use |
|---|---|---|
| FOXcore 71 RC | AWS A5.20 E71T-1 family | All-position rutile wire for mild steel, 0.045 to 1/16 in. |
| FOXcore 309L-T1 | AWS A5.22 E309LT1-4(1) | Buffer layers and dissimilar joints |
| FOXcore 2209-T1 | AWS A5.22 E2209T1-4(1) | 2205 duplex, all positions |
Handling and ordering notes
Keep stainless wire away from carbon steel dust and tools, and remove heat tint on welds exposed to chlorides. Confirm the diameter and spool type, gas, base grade, service temperature and certificate type when ordering. State whether class approvals (ABS, DNV GL, LR, BV) are needed, since some are tied to a gas type or wire diameter on the data sheet.
Documents and quotation
Attached: the manufacturer data sheet for FOXcore 316L-T1, which is the source of every figure on this page. More products of this kind are collected in flux-cored welding wire. Send us the size, packaging, quantity, the steel you are welding and the certificate you expect, and we will prepare the offer.
Datasheets & Documents
- Datasheet Böhler Welding FOXcore 316L-T1 product data sheet (US edition) Download
Reviews (0)
About brand
Böhler Welding is the welding consumables brand of voestalpine Böhler Welding, part of the voestalpine group, with a portfolio that covers stick electrodes, TIG rods, solid wires, gas-shielded and self-shielded flux-cored wires and submerged-arc wires and fluxes. The company states more than 100 years of experience. Seven Star LLC, an independent supplier in Muscat, lists Böhler Welding consumables and welding machines, including pipeline electrodes, and sources Böhler Welding consumables for fabricators and pipeline contractors.
Böhler Welding product groups
Beyond the consumables above, Böhler Welding lists strip cladding, wire arc additive manufacturing, metal powders, arc spraying cored wires, ceramic weld backing, brazing consumables and welding automation such as orbital welding and collaborative robots. The pipeline range includes cellulosic FOX CEL electrodes and basic vertical-down FOX BVD electrodes for large-diameter line pipe.
Ordering Böhler Welding consumables: what we need
Give the product name, the AWS or EN classification, the diameter and length, and the packaging you need. For pipeline electrodes also state the pipe grade, wall thickness, welding position and whether sour-service test values are required, because the Böhler Welding data sheets note that some test values are available on request.
Related products
Frequently Asked Questions
What is the classification of FOXcore 316L-T1?
AWS A5.22 E316LT1-4(1) and EN ISO 17633-A T 19 12 3 L P M21 (C1) 1.
Which positions can it be used in?
All positions without changing the parameters, when set up correctly.
Which shielding gas is recommended?
Argon with 15 to 25 % CO2; 100 % CO2 can also be used with the voltage raised by about 2 V.
What is the maximum interpass temperature?
300 °F, with a suggested heat input of at most 50 kJ/in.
Which approvals are printed?
TÜV (09118), DB (43.014.24), ABS, BV, CWB, DNV GL, LR and CE.
