Brand: Böhler Welding

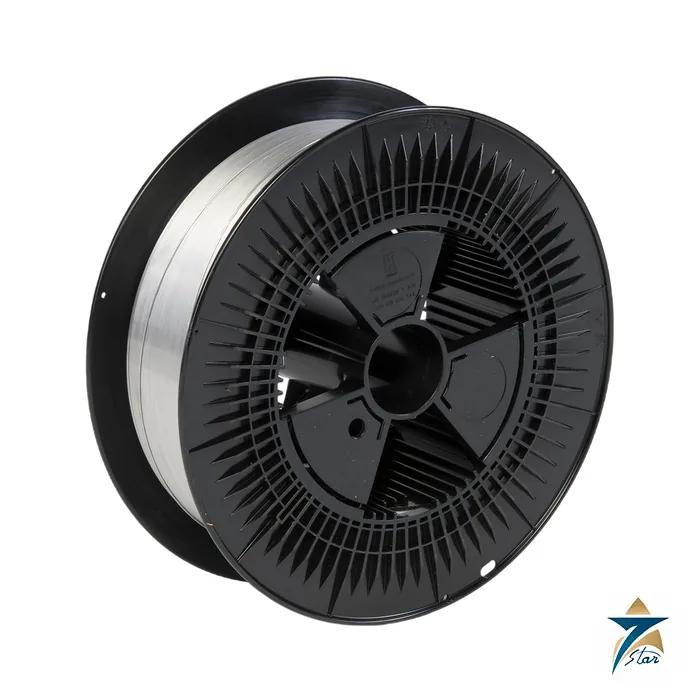

Böhler FOXcore 71 RC E71T-1 All-Position Flux-Cored Wire
Description
All-position rutile flux-cored wire for mild steel fabrication
The Böhler FOXcore 71 RC is a rutile flux-cored wire with a fast-freezing slag system for all-position welding, listed as AWS A5.20 E71T-1 / T-9 / T-12M-JH8 (with Ar-CO2 gas) and E71T-1 / T-9 / T-12C-JH8 (with CO2). Böhler Welding states that all-position welding is possible with the 0.045 in wire and a single set of parameters, and cites excellent mechanical properties, easy slag removal, low spatter, a finely rippled bead and X-ray quality welds. The data sheet is titled BÖHLER Q 71 RC, the product name under which this wire appears on Böhler’s US data sheet. It is aimed at productivity gains in shipyards and structural shops, where moving between flat, vertical and overhead positions with one setting saves time.
Technical specifications
| Parameter | Specification |
|---|---|
| AWS classification | A5.20 / SFA-5.20 E71T-1/T-9/T-12M-JH8 (M21) and E71T-1/T-9/T-12C-JH8 (C1) |
| AWS A5.36 | E71T1-M21A4-CS1-H8; E71T1-C1A4-CS1-H4 |
| EN ISO 17632-A | T 46 4 P M21 1 H10; T 42 2 P C1 1 H5 |
| EN ISO 17632-B | T 49 4 T1-1M21A-UH10; T 49 2 T1-1C1A-UH5 |
| Typical analysis, M21 / C1, wt % | C 0.06 / 0.05; Si 0.50 / 0.45; Mn 1.20 / 1.10 |
| Yield strength, as welded, M21 | 73 ksi typical (minimum 67) |
| Tensile strength, as welded, M21 | 84 ksi typical (80 to 107) |
| Elongation, as welded, M21 | 26 % typical (minimum 20) |
| Impact energy, as welded, M21 | 133 ft-lbf at 68 °F; 96 at 0 °F; 66 at -40 °F (minimum 35) |
| Yield / tensile, as welded, C1 | 70 ksi (minimum 61) / 80 ksi (73 to 97); elongation 25 % |
| Impact energy, as welded, C1 | 118 ft-lbf at 68 °F; 81 at 0 °F (minimum 35); 29 at -40 °F (minimum 20) |
| Available diameters | 0.045 in; 0.052 in; 1/16 in |
| Approvals | TÜV, DB, ABS, LR, DNV GL, BV, CRS, CE |
Base materials and gas choice
Böhler lists steels up to 460 MPa (67 ksi) yield strength with M21 shielding gas, including S235JR to S355J2, S275N to S460N, P235GH to P355GH, L245NB to L450MB, shipbuilding steels A, B, D, E and A 32 to E 36, and ASTM A 106 Gr. A to C, A 516 Gr. 55 to 70, A 572 and API 5L Gr. B to X65. The two gas columns above show the trade-off: Ar-CO2 mixed gas gives the higher toughness at -40 °F, while pure CO2 trades some toughness for cheaper gas. Where seamless wire with a slightly different slag system is wanted, see the ; for stainless fabrication the rutile
works in the same way.| Related Böhler Welding cored wire | Classification | Typical use |
|---|---|---|
| diamondspark 52 RC | AWS A5.20 E71T1 family, seamless | Seamless rutile wire for shipbuilding and structural steel |
| diamondspark 54 MC | AWS A5.18 E70C-6M H4 | Seamless metal-cored wire, root passes and automation |
| diamondspark X70 RC-Pipe | AWS A5.29 E91T1-K2M | Rutile NiMn wire for X70 and X80 pipeline welding |
Gas, spool and certificate notes
Confirm the shielding gas and the certificate level in the enquiry, because the classification, toughness and hydrogen level depend on whether the project uses Ar-CO2 or CO2. Also state the diameter, spool or drum format your wire feeder takes, the quantity, the plate grade and thickness, and any class approval (ABS, DNV GL, LR, BV) the contract requires, so that the request can be matched with the approvals printed on the data sheet.
Documents and quotation
Attached: the manufacturer data sheet for FOXcore 71 RC, which is the source of every figure on this page. More products of this kind are collected in flux-cored welding wire. Send us the size, packaging, quantity, the steel you are welding and the certificate you expect, and we will prepare the offer.
Datasheets & Documents
- Datasheet Böhler Welding FOXcore 71 RC product data sheet (US edition, titled Q 71 RC) Download
Reviews (0)
About brand
Böhler Welding is the welding consumables brand of voestalpine Böhler Welding, part of the voestalpine group, with a portfolio that covers stick electrodes, TIG rods, solid wires, gas-shielded and self-shielded flux-cored wires and submerged-arc wires and fluxes. The company states more than 100 years of experience. Seven Star LLC, an independent supplier in Muscat, lists Böhler Welding consumables and welding machines, including pipeline electrodes, and sources Böhler Welding consumables for fabricators and pipeline contractors.
Böhler Welding product groups
Beyond the consumables above, Böhler Welding lists strip cladding, wire arc additive manufacturing, metal powders, arc spraying cored wires, ceramic weld backing, brazing consumables and welding automation such as orbital welding and collaborative robots. The pipeline range includes cellulosic FOX CEL electrodes and basic vertical-down FOX BVD electrodes for large-diameter line pipe.
Ordering Böhler Welding consumables: what we need
Give the product name, the AWS or EN classification, the diameter and length, and the packaging you need. For pipeline electrodes also state the pipe grade, wall thickness, welding position and whether sour-service test values are required, because the Böhler Welding data sheets note that some test values are available on request.
Related products
Frequently Asked Questions
What is the classification of FOXcore 71 RC?
AWS A5.20 E71T-1 / T-9 / T-12M-JH8 with Ar-CO2 gas and E71T-1 / T-9 / T-12C-JH8 with CO2, as printed.
Which diameters are listed?
0.045, 0.052 and 1/16 inch.
Can one parameter set be used in all positions?
Böhler states that all-position welding is possible with 0.045 in wire and a single set of parameters.
Why is the data sheet titled Q 71 RC?
The US data sheet for this wire carries the title BÖHLER Q 71 RC; the webshop lists the product as FOXcore 71 RC.
Which approvals are printed?
TÜV, DB, ABS, LR, DNV GL, BV, CRS and CE.
