Brand: Böhler Welding

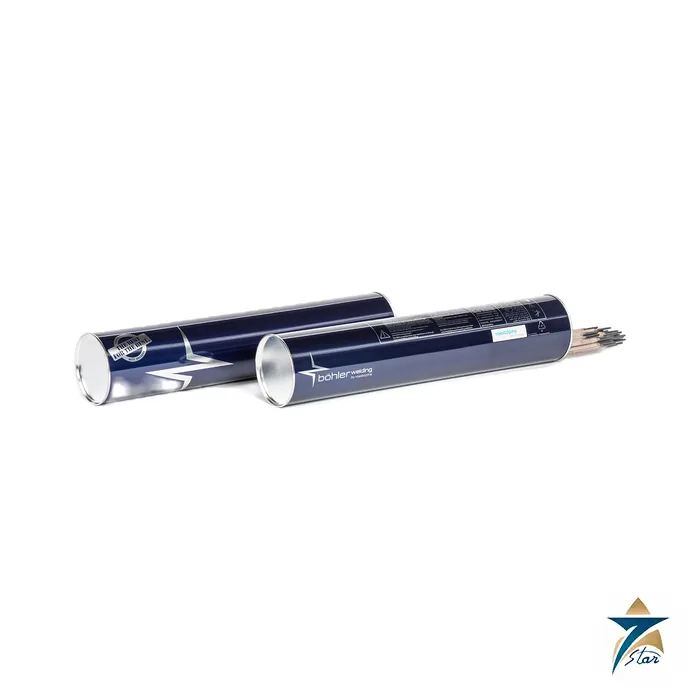

Böhler FOX EAS 4 M-VD E316L-17 Vertical-Down Electrode
Description
Vertical-down E316L-17 electrode for 316L sheet and thin-wall fabrication
The Böhler FOX EAS 4 M-VD is a rutile-basic, core-wire-alloyed electrode of E316L-17 type (EN ISO 3581-A E 19 12 3 L R 1 5) for welding austenitic stainless steels such as 1.4404 and 1.4436 (316L). Its fast-freezing slag is designed for vertical-down welding in sheet-metal fabrication. Böhler Welding states that with the same electrode diameter and wall thickness it is possible to save up to 50 % of welding time compared with the vertical-up position, and that the fast travel speed and low heat input give little distortion and less risk of overheating the base metal and impairing its corrosion resistance. Maximum service temperature is 400 °C.
Technical specifications
| Parameter | Specification |
|---|---|
| AWS classification | A5.4 / SFA-5.4 E316L-17 |
| EN ISO classification | 3581-A E 19 12 3 L R 1 5 |
| Typical analysis, wt % | C 0.03; Si 0.7; Mn 0.7; Cr 19; Ni 12; Mo 2.7 |
| Yield strength Rp0.2, as welded | 470 MPa typical (minimum 320) |
| Tensile strength Rm, as welded | 600 MPa typical (minimum 510) |
| Elongation A (L0=5d0) | 35 % typical (minimum 25) |
| Impact energy ISO-V | 55 J at 20 °C; 55 J at -40 °C (minimum 32); 32 J at -120 °C (minimum 27) |
| Polarity | DC+ |
| Sizes and current | 2.5 x 300 mm: 75 to 85 A; 3.2 x 300 mm: 105 to 115 A |
| Heat input and interpass | Maximum 2.0 kJ/mm; interpass temperature maximum 150 °C |
| Heat treatment | Generally not needed; solution annealing at 1050 °C with water quench in special cases |
| Redrying | 120 to 200 °C for at least 2 h, if necessary |
| Approvals | TÜV (06907), DNV, CWB, CE |
Base materials and selection
Base materials named include 1.4401, 1.4404, 1.4409, 1.4429, 1.4432, 1.4435, 1.4436, 1.4571, 1.4580 and 1.4583, UNS S31600, S31603, S31635, S31640 and S31653, and AISI 316L, 316Ti and 316Cb. Typical jobs are tanks, ducts, vessel shells and thin-wall pipework in food, chemical and water-treatment plants. For stabilised 321 and 347 grades the is the sibling; for duplex see the . Vertical-down is only for thin sections; thick sections and structural joints in 316L are welded vertical-up with a conventional 316L electrode.
| Related Böhler Welding electrode | Classification (AWS A5.1 / A5.5 / A5.4) | Typical use |
|---|---|---|
| FOX EV 50 | E7018-1 H4R | Mild and fine-grain steel, boiler, tank and offshore work |
| FOX SAS 2-A | E347-17 | Ti/Nb stabilised 321 and 347 stainless |
| FOX CN 22/9 N-B | E2209-15 | Duplex 2205, thick sections |
Handling and what to confirm
Weld with stainless-only brushes and tools, keep heat input under the 2.0 kJ/mm figure and clean heat tint where corrosion resistance matters. Confirm the diameter (the data sheet lists only 2.5 and 3.2 mm), quantity, base grade and wall thickness, and the certificate type when ordering. The data sheet used here is Böhler’s global edition in millimetres.
Because the electrode is designed for thin material, keep the current inside the narrow ranges the data sheet gives, 75 to 85 A for 2.5 mm and 105 to 115 A for 3.2 mm, and hold a steady downhill travel speed so the fast-freezing slag supports the pool. The impact values stay high at low temperature, with 55 J at minus 40 °C and 32 J at minus 120 °C against a minimum of 27 J, so the deposit is not limited to ambient service.
Documents and quotation
Attached: the manufacturer data sheet for FOX EAS 4 M-VD, which is the source of every figure on this page. More products of this kind are collected in welding electrodes. Send us the size, packaging, quantity, the steel you are welding and the certificate you expect, and we will prepare the offer.
Datasheets & Documents
- Datasheet Böhler Welding FOX EAS 4 M-VD stick electrode data sheet (global edition) Download
Reviews (0)
About brand
Böhler Welding is the welding consumables brand of voestalpine Böhler Welding, part of the voestalpine group, with a portfolio that covers stick electrodes, TIG rods, solid wires, gas-shielded and self-shielded flux-cored wires and submerged-arc wires and fluxes. The company states more than 100 years of experience. Seven Star LLC, an independent supplier in Muscat, lists Böhler Welding consumables and welding machines, including pipeline electrodes, and sources Böhler Welding consumables for fabricators and pipeline contractors.
Böhler Welding product groups
Beyond the consumables above, Böhler Welding lists strip cladding, wire arc additive manufacturing, metal powders, arc spraying cored wires, ceramic weld backing, brazing consumables and welding automation such as orbital welding and collaborative robots. The pipeline range includes cellulosic FOX CEL electrodes and basic vertical-down FOX BVD electrodes for large-diameter line pipe.
Ordering Böhler Welding consumables: what we need
Give the product name, the AWS or EN classification, the diameter and length, and the packaging you need. For pipeline electrodes also state the pipe grade, wall thickness, welding position and whether sour-service test values are required, because the Böhler Welding data sheets note that some test values are available on request.
Related products
Frequently Asked Questions
What is the classification of FOX EAS 4 M-VD?
AWS A5.4 E316L-17 and EN ISO 3581-A E 19 12 3 L R 1 5.
What is the vertical-down advantage?
Böhler states up to 50 % welding time saving compared with the vertical-up position.
Which diameters are listed?
2.5 x 300 mm (75 to 85 A) and 3.2 x 300 mm (105 to 115 A).
What is the maximum service temperature?
400 °C according to the data sheet.
Which approvals are printed?
TÜV (06907), DNV, CWB and CE.
