Brand: Selectarc

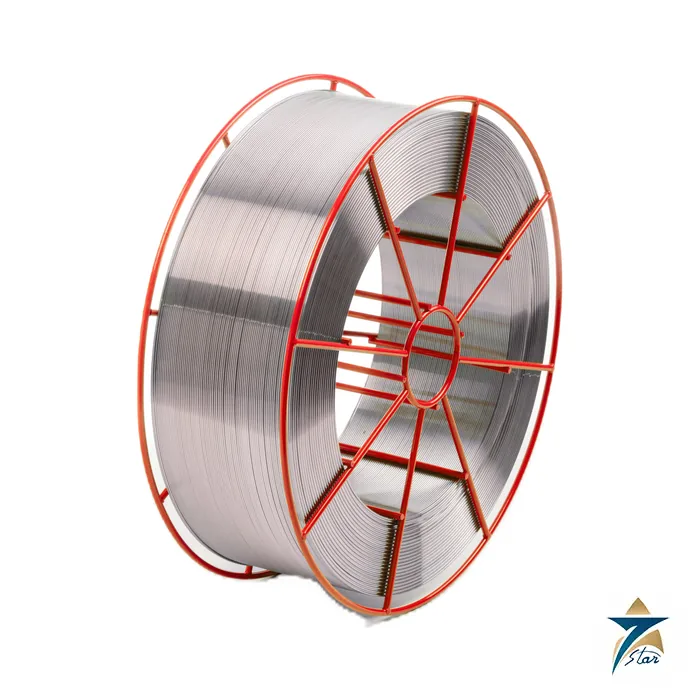

Selectarc FCW 2209P E2209T1 All-Position Duplex Flux-Cored Wire
Description
Rutile fast-freezing duplex wire for positional work
The Selectarc FCW 2209P is a gas-shielded flux-cored wire for all-position welding of duplex stainless steels such as 2205 and 2304. It is classified AWS A5.22 E2209T1-1/-4 and ISO 17633-A T 22 9 3 N L P M21 (C1) 1. A rutile, fast-freezing slag supports the weld pool in vertical and overhead positions, which makes the wire suited to pipe spools, structural nodes and vessel nozzles that cannot be turned.
Selectarc states resistance to severe corrosive environments, including intergranular attack, pitting, crevice and stress corrosion, and a PREN above 35. Main applications are pumps, vessels and piping attacked by chloride-containing solutions, as well as impellers and other parts that need high strength together with corrosion resistance.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / product | Selectarc / FCW 2209P |
| Process | FCAW, gas shielded |
| AWS classification | A5.22 E2209T1-1/-4 |
| ISO classification | 17633-A T 22 9 3 N L P M21 (C1) 1 |
| Slag type | Rutile, fast freezing, all positions |
| Weld metal composition, min–max % | C max 0.04, Si max 1.0, Mn 0.5–2.0, Cr 21.0–24.0, Ni 7.5–10.0, Mo 2.5–4.0, Cu max 0.5, N 0.08–0.20, P max 0.030, S max 0.025 |
| Typical composition, % | C 0.03, Si 0.80, Mn 1.1, Cr 23.0, Ni 9.0, Mo 3.1, N 0.15 |
| PREN | Above 35 |
| Rp0.2 (min / typical) | 450 / 630 MPa |
| Rm (min / typical) | 690 / 780 MPa |
| Elongation A5 (min / typical) | 20 / 28% |
| Impact energy KV (typical) | 35 J at -60 °C |
| Diameter and parameters | 1.2 mm: 130–270 A, 22–35 V, stick-out 12–25 mm |
| Current type | DC, electrode positive |
| Shielding gas | ISO 14175 M21 (Ar/CO2), 10–20 l/min |
Base metals and fit with other processes
Base materials listed are UNS S31803 (X2CrNiMoN22-5-3, 1.4462), S32304 (X2CrNi23-4, 1.4362) and S32900 (329, 1.4460). Flux-cored duplex wire is often used for fill and cap passes after a GTAW root, delivering much higher deposition than stick electrodes while still allowing positional welding on fixed joints.
The -1/-4 suffix shows that the wire is classified with both CO2 and argon/CO2 mixtures, although Selectarc gives M21 as the recommended gas. For super duplex parent metals, the 25 9 4 type FCW 2509MOP is the matching Selectarc option.
Welding guidance
Run the 1.2 mm wire on DC positive between 130 and 270 A and 22 to 35 V, with a stick-out of 12 to 25 mm and a gas flow of 10 to 20 l/min. Use the lower end of the range for vertical-up and overhead passes, where the fast-freezing slag does most of the work, and higher settings for flat fill passes.
Duplex phase balance depends on heat input and interpass temperature, so set limits in the WPS and verify them with ferrite measurements during qualification. Remove all slag between passes, protect the wire from moisture, and keep wind away from the arc on site, since loss of shielding causes porosity and nitrogen loss in the deposit.
Rutile flux-cored deposits contain more oxygen than GTAW weld metal, which slightly reduces impact energy at very low temperatures. If the design calls for toughness well below -60 °C, check the typical values above against the specification before selecting the process.
Documents and quotation
Download the Selectarc FCW 2209P data sheet attached to this page. More wires are listed in our Flux-Cored Wire category.
For a quotation, send spool type, quantity and certificate requirements.
Datasheets & Documents
- Datasheet Selectarc FCW 2209P technical data sheet (EN) Download
Reviews (0)
About brand
Selectarc is a French manufacturer of welding and brazing filler metals, headquartered in Grandvillars, France. Its welding activity began in 1952 with Selectarc Industrie, a plant making covered electrodes, and the business is the welding and brazing division of the family group Viellard Migeon & Compagnie. In 2025 Framatome took a 40% stake in the company.
Selectarc welding and brazing products
The welding range covers covered electrodes for carbon, low-alloy, stainless and nickel-base steels, MIG and TIG wires, flux-cored wires and hardfacing products, with brazing alloys made at the former Reboud-Roche foundry. Selectarc lists the nuclear, defence and aerospace industries among its key markets, and welding production is concentrated at its Grandvillars site, which also houses the research laboratory.
Ordering Selectarc filler metals: what we need
Give the product name, for example Selectarc Ni625, and the AWS or ISO classification in your procedure, the diameter and length, and the quantity. Seven Star LLC, an independent supplier in Muscat, checks the grade against the Selectarc technical data sheet and can provide the data sheet and the certificates issued with the order on request.
Related products
Frequently Asked Questions
What is the classification of Selectarc FCW 2209P?
AWS A5.22 E2209T1-1/-4 and ISO 17633-A T 22 9 3 N L P M21 (C1) 1.
Can it weld in all positions?
Yes. It is a rutile fast-freezing slag wire designed for all-position welding.
Which shielding gas is used?
M21 argon/CO2 mixture to ISO 14175 at 10–20 l/min; the classification also covers C1.
What are typical mechanical properties?
Rp0.2 630 MPa, Rm 780 MPa, A5 28% and 35 J at -60 °C (typical).
What parameters are given for 1.2 mm?
130–270 A, 22–35 V, stick-out 12–25 mm, DC+.
