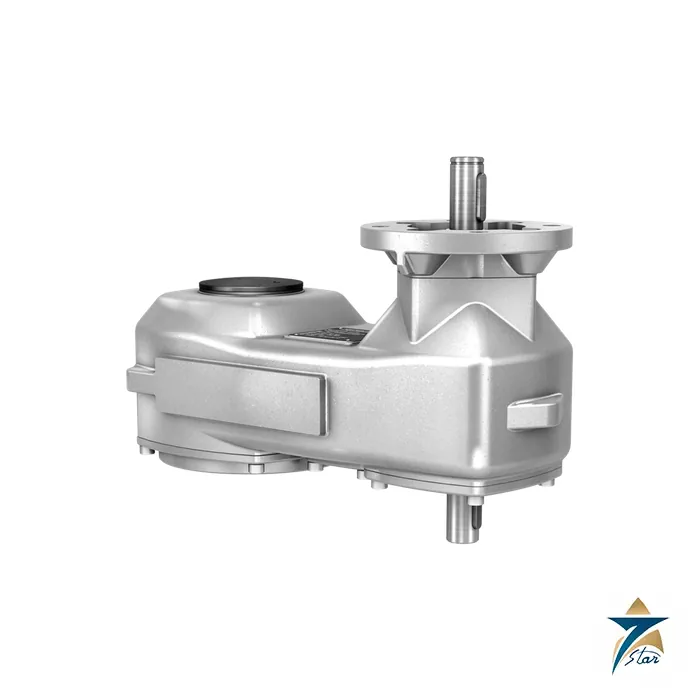

AUMA GST 40.1 Spur Gearbox (16,000 Nm)

Name: AUMA GST 40.1 Spur Gearbox | Seven Star LLC
Brand: AUMA

Description

Overview

AUMA GST 40.1 sits at the top of the GST spur gearbox family with a valve torque of up to 16,000 Nm and a modulating torque of 5,600 Nm, the highest modulating rating in the GST family. It weighs 255 kg, accepts valves with an F40 flange, and offers six ratio variants (8:1, 11:1 twice, 14.33:1, 16:1 and 22:1), some of them special ratios on request. That range makes it the standard answer for the biggest gate valves and globe valves that need to be automated with an offset-axis drive.

Seven Star LLC is the official trusted supplier and regional supplier for AUMA, and we supply the AUMA GST 40.1 to large water, power and energy projects in the Sultanate of Oman and the GCC.

Working Principle of the AUMA GST 40.1

The AUMA GST 40.1 is a double-stage spur gearbox in which two pairs of spur gears step the rotation down from the input shaft to the output drive sleeve while keeping the axes parallel. The design suits motor operation with an electric multi-turn actuator at a maximum input speed of 240 rpm and also manual operation through a 500 mm handwheel. In open-close duty the gearbox is rated for short-time duty S2-15 minutes, and for modulating duty it is rated for intermittent duty S4-25 percent at the 5,600 Nm modulating torque.

The ratio variants show a wide spread of valve torque and input torque. The 8:1 special ratio (factor 7.2) is rated for 11,500 Nm and needs 1,600 Nm at the input, the 11:1 ratio (factor 9.9) delivers the full 16,000 Nm with 1,616 Nm, the 11:1 special ratio is rated for 10,900 Nm with 1,100 Nm, the 14.33:1 special ratio (factor 12.9) for 12,900 Nm with 1,000 Nm, the 16:1 ratio (factor 14.4) for 16,000 Nm with 1,111 Nm and the 22:1 ratio (factor 19.8) for 16,000 Nm with 808 Nm. The average output torque for ATEX open-close duty is 8,000 Nm.

Engineering Design of the AUMA GST 40.1

Valve attachment is F40 according to EN ISO 5210 (G7 according to DIN 3210), and the output drive types A, B1, B2, B3 and B4 as well as the special attachments are available. Input shafts are 50 mm for the 8:1 and 11:1 ratios and 40 mm for the others, with a 50 mm option on the 16:1 and 22:1 ratios. Mounting flanges F16, F25 and F14 allow SA 16.2 and SA 25.1 actuators on the large ratios and an SA 14.6 on the 16:1 ratio, with permissible actuator weights of 80, 160 and 300 kg.

The housing is protected to IP68 and KS, and the standard temperature range is -40 to +80 degrees Celsius with -60 to +60 and 0 to +120 degree options. Output drives can carry a stem nut and a stem protection tube for rising stems, and the gearbox is also available with a second input shaft end and protective cap. Lifting equipment is required for installation because of the 255 kg weight.

Ratio Variants of the AUMA GST 40.1

The AUMA GST 40.1 is listed in AUMA’s technical data with the following ratio variants; entries marked with an asterisk are special ratios supplied on request.

Ratio	Factor	Max. valve torque	Max. input torque nominal	Input shaft
8:1*	7.2	11,500 Nm	1,600 Nm	50 mm
11:1	9.9	16,000 Nm	1,616 Nm	50 mm
11:1*	9.9	10,900 Nm	1,100 Nm	40 mm
14.33:1*	12.9	12,900 Nm	1,000 Nm	40 mm
16:1	14.4	16,000 Nm	1,111 Nm	40 mm (50 mm option)
22:1	19.8	16,000 Nm	808 Nm	40 mm (50 mm option)

Modulating input torques for these ratios range from 194 Nm at 16:1 to 778 Nm at 8:1.

Key Features

The AUMA GST 40.1 gives very large multi-turn valves an offset-axis drive with the highest torque in its family:

A valve torque of up to 16,000 Nm, with 5,600 Nm for modulating duty, makes this the top of the GST family.
Standard ratios of 11:1, 16:1 and 22:1 deliver the full 16,000 Nm, while special ratios of 8:1*, 11:1* and 14.33:1* give 10,900 to 12,900 Nm.
Input torque falls from 1,616 Nm at 11:1 to 808 Nm at 22:1.
An F40 flange (G7 to DIN 3210) offers output drive types A and B1 to B4.
SA 14.6, SA 16.2 and SA 25.1 actuators fit with up to 300 kg permissible weight.
The 255 kg housing includes the output drive sleeve and grease filling.
Optional stem protection tube and WSH position signalling suit rising-stem valves.
IP68 and KS corrosion protection are standard, and the gearbox can be mounted in any position.

Industrial Applications

Large gate valves on bulk water transmission lines, big globe valves in power-plant feedwater systems and isolation valves on pumping-station headers need the torque range of the AUMA GST 40.1. Because it is one of the few multi-turn gearboxes rated for modulating torque in the thousands of Nm, it is also used on large regulating valves where a mid-size SAR actuator and a high-ratio GST give a stable, repeatable position. Oman’s desalination plants and combined power and water facilities are the main customers for this class.

In Oman and the GCC, Seven Star LLC supplies the AUMA GST 40.1 with SA and SAR actuators and controls to EPC contractors and plant operators across Oman and the GCC, including Sohar, Duqm and Salalah. See also the AUMA GST spur gearbox family, and consider the AUMA SAR 14.1 modulating actuator for regulating duty. For related drive options, see the AUMA SA 10.2 multi-turn actuator.

Related pages on our site: AUMA GST 25.1, AUMA GK 40.2 and AUMA GK bevel gearbox family.

Technical Specifications

The AUMA GST 40.1 entries below include the special ratios that AUMA marks with an asterisk.

Parameter	Specification
Model	AUMA GST 40.1
Gearbox type	Double-stage spur gearbox, multi-turn
Max. valve torque	16,000 Nm nominal; 5,600 Nm modulating
Reduction ratios	8:1, 11:1, 11:1, 14.33:1, 16:1, 22:1 ( special ratio)
Max. input torque	1,616 Nm (11:1) down to 808 Nm (22:1)
Valve attachment	EN ISO 5210 F40 (DIN 3210 G7)
Input shaft	50 mm / 40 mm; 50 mm option on 16:1 and 22:1
Weight	255 kg
Max. input speed	240 rpm
Type of duty	S2 – 15 min open-close; S4 – 25 % modulating
Ambient temperature	-40 °C to +80 °C (options -60 to +60, 0 to +120)
Enclosure / corrosion protection	IP68 / KS
ATEX average output torque	8,000 Nm

Only the 11:1, 16:1 and 22:1 ratios deliver the full 16,000 Nm; the special ratios marked with an asterisk trade valve torque of 10,900 to 12,900 Nm for lower input torque.

Request a Quote for AUMA GST 40.1

Submit your RFQ for the AUMA GST 40.1 with the valve torque, the modulating requirement, the F40 or special interface and the intended actuator. Seven Star LLC will confirm the ratio from AUMA’s data, provide the technical data sheet that can be downloaded from this page and plan transport and lifting to site. In Oman and the GCC, we supply every gearbox on request, with lead time confirmed at quotation.
