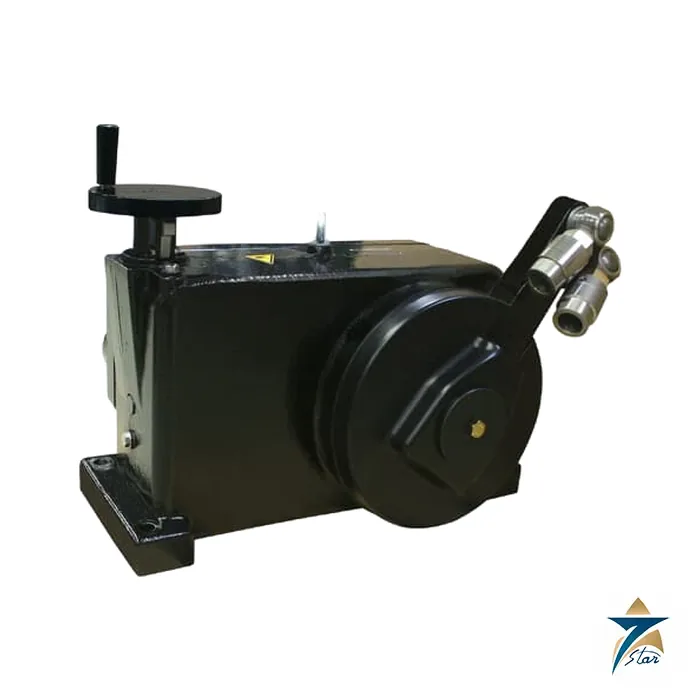

ABB-Electrical ​rotary actuator RHD1250 (Contrac)

Overview

The ABB Contrac RHD1250 is a compact electric rotary actuator delivering 1250 Nm of rated torque for quarter-turn valves and dampers in light-to-medium duty process applications. As the smaller-torque member of ABB’s RHD electric rotary actuator range — which spans from 50 Nm up to 16000 Nm — the RHD1250 suits ball valves, butterfly valves, and small-to-mid-size dampers that don’t require the higher torque of the RHD4000 or RHD16000.

Seven Star LLC supplies the RHD1250 as an authorized ABB instrumentation partner to process, water treatment, and utility facilities across Oman and the GCC, helping select the correct torque-rated actuator for each valve or damper.

Operating Principle

The RHD1250 converts electric motor rotation into rotary output torque, driving a valve or damper shaft between end positions in response to a control signal from its dedicated Contrac electronic unit. Its stall-proof S9-100% duty rating, per IEC 60034-1/EN 60034-1, lets the actuator hold an intermediate modulating position indefinitely without thermal derating, and rotation angle is field-configurable between 35° minimum and 270° maximum around a typical 90° quarter-turn setting.

Engineering Design of the ABB Contrac RHD1250

The RHD1250 delivers 1250 Nm of rated torque, adjustable to 0.5, 0.75, or 1.0 times rated output to match the actual valve or damper load. Travel time for a 90° stroke is adjustable from 30 to 900 seconds, with operating speed adjustable from 3.0 down to 0.1°/s for precise positioning. It is powered by 115VAC (94–130V) or 230VAC (190–260V) single-phase supply at 47.5–63Hz, housed in an IP66/NEMA 4X-rated enclosure, and operates standard across −10°C to 65°C.

Key Features

• 1250 Nm rated torque, adjustable to 0.5/0.75/1.0×
• Field-configurable rotation angle, 35° to 270° (90° typical)
• Adjustable 90° travel time, 30–900 seconds
• Stall-proof S9-100% continuous duty rating
• 115VAC or 230VAC single-phase power
• IP66 and NEMA 4X rated enclosure
• Operating temperature −10°C to 65°C standard
• Compact footprint suited to smaller quarter-turn valves
• Part of ABB’s RHD range spanning 50–16000 Nm

Industrial Applications

The RHD1250 is specified for quarter-turn ball and butterfly valve actuation in process, water treatment, and utility plants across Muscat, Sohar, and Salalah, where torque demand is moderate and a compact actuator footprint is preferred. It is a common fit for HVAC dampers, smaller isolation valves, and general process control valves that don’t require the RHD4000 or RHD16000’s higher torque output.

Across the GCC’s process and utility sectors, the RHD1250 lets engineering teams standardize on the Contrac electric actuator platform across a range of valve sizes, using the same control electronics and spare-parts philosophy from the smallest RHD models up through the RHD16000 for the largest valves.

Technical Specifications

Request a Quote for ABB-Electrical ​rotary actuator RHD1250 (Contrac)

Contact Seven Star LLC to request a quotation for the ABB Contrac RHD1250 electric rotary actuator and to confirm the correct torque and rotation configuration for your valve or damper. Our engineering team, serving Oman and the GCC, can help select the right RHD-series actuator across the full torque range.
