Yokogawa TDLS8000 Tunable Diode Laser Gas Analyzer
Overview of the Yokogawa TDLS8000
The Yokogawa TDLS8000 is an in-situ tunable diode laser spectrometer for real-time gas analysis in combustion and process applications. It measures oxygen, carbon monoxide, methane, carbon dioxide, ammonia, moisture, hydrogen sulphide and hydrogen chloride directly across a stack, duct or process line, without sample extraction or conditioning. The non-contacting sensor works in corrosive, abrasive and condensing gases at temperatures up to 1,500 °C, and Yokogawa describes this second-generation platform as having improved reliability and easier installation and maintenance than the first.
Seven Star LLC supplies the Yokogawa TDLS8000 to refineries, gas processing plants, petrochemical complexes, power stations and cement and steel producers in the Sultanate of Oman and the GCC. As a trusted supplier with engineering support in Muscat, we work with process engineers on the application data sheet, optical path, purge arrangement and hazardous-area approval so the analyzer is specified correctly from the start.
Measuring Principle
In the Yokogawa TDLS8000, a near-infrared tunable diode laser in the laser unit is scanned across a narrow absorption line of the target gas, and the beam passes through the process to the detector in the sensor control unit on the opposite side. The amount of light absorbed at that wavelength is proportional to the gas concentration along the path. Yokogawa’s TruePeak technique integrates the whole area of the absorption peak rather than its height, so the result stays accurate and free of interference when pressure, temperature and background gas composition change. Process temperature and pressure can be fed in through two 4–20 mA analog inputs for compensation.
An internal reference cell in the laser module locks the laser to the correct absorption peak, which allows stable measurement of low concentrations. An 8-stage auto-gain adapts the detector to large variations in transmission caused by dust or particles. Because the line-of-sight measurement averages the whole cross-section, the Yokogawa TDLS8000 does not miss local temperature or concentration stratification, and the absence of sample lines gives a typical response of 2 to 5 seconds.
Engineering Design of the Yokogawa TDLS8000

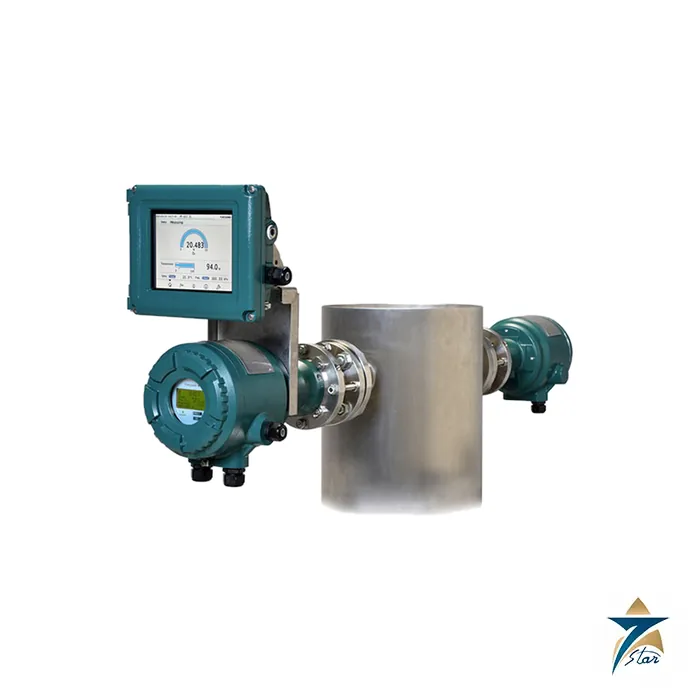

The Yokogawa TDLS8000 system consists of a laser unit and a sensor control unit installed opposite each other on alignment flanges, joined by a unit connection cable and powered from 24 V DC. Both units have aluminium alloy cases rated IP66 and Type 4X, weigh about 8 kg each, and carry a local display: a 128 × 64 dot LCD with status LEDs on the sensor control unit and a 7-segment transmission display on the laser unit to simplify optical alignment. Wetted materials are 316 stainless steel, BK-7 glass and encapsulated FKM, and purge connections keep the optics and process windows clean.
For the Yokogawa TDLS8000, the optional YH8000 HMI adds a 7.5-inch colour touchscreen in ten languages and can operate up to four analyzers at once. The modular design allows the laser module and other components to be replaced on site without calibration, and the analyzer stores 50 days of data and spectra for diagnosis. For difficult processes, Yokogawa offers the IF8000 isolation flange, the YC8000 flow cell for extractive measurement and calibration cells for offline validation.
Key Features
The main features of the Yokogawa TDLS8000 listed in the general specifications are:
- Measurement of O2, CO, CO + CH4, CO2, NH3, H2O, H2S and HCl from ppm to percent levels in combustion and process gas.
- Response of 2 to 5 seconds, with a 1-second option, for fast combustion and safety control.
- Optical path of 0.5 to 6 m as standard and up to 30 m with Large Aperture Optics.
- Process gas temperatures up to 1,500 °C and pressures up to 1 MPa absolute, depending on the application.
- Two 4–20 mA outputs with HART, Modbus TCP over Ethernet, two digital outputs, two digital inputs and two valve control outputs.
- SIL 2 capability for a single analyzer and SIL 3 for dual analyzers to IEC 61508.
- IECEx, ATEX, FM, NEPSI, Korea Ex, EAC, INMETRO and Japan approvals for Zone 1/Div 1 flameproof or Zone 2/Div 2 installations.
- Automatic zero/span calibration and validation with up to two check gases, plus DNV type approval and QAL1 certification for specific emission versions.
Industrial Applications
Yokogawa highlights fired heater combustion control with O2 and CO + CH4 measurement, oxygen monitoring for safety in vapour recovery and vacuum distillation columns, NH3 slip in flue gas, and trace moisture in electrolysis plants. These Yokogawa TDLS8000 duties are directly relevant to the Sultanate of Oman: refinery heaters and reformers in Sohar and Duqm, gas processing and LNG facilities, flare and vapour recovery units, and gas turbine and boiler flue gas at independent power and water plants. On fired heaters, fast in-situ O2 and CO measurement allows tighter excess-air control, improving efficiency and reducing emissions while protecting tubes.
Steel, aluminium and cement producers in the Sohar industrial area can also use the Yokogawa TDLS8000 for CO and O2 monitoring in furnaces and coal mills, where dust and high temperature make sample systems difficult to maintain. Seven Star LLC supplies the analyzer from Muscat together with related Yokogawa equipment, including the Yokogawa E7042UD zirconia cell assembly kit for existing oxygen analyzers, the Yokogawa ProSafe-RS safety instrumented system and the Yokogawa FLXA21 analyzer for liquid analysis.
Technical Specifications of the Yokogawa TDLS8000
The following data for the Yokogawa TDLS8000 are taken from Yokogawa General Specifications GS 11Y01D01-01EN; process limits depend on the application.
| Parameter | Specification |
|---|---|
| Model | Yokogawa TDLS8000 |
| Measurement system | Tunable diode laser spectroscopy, near-infrared laser |
| Measured gases | O2, CO, CO or CH4, CO2, CO + CO2, H2O, NH3, H2S, HCl |
| Example ranges | O2 0–1 % to 0–25 %; CO 0–200 to 0–10,000 ppm; HCl 0–50 to 0–5,000 ppm |
| Optical path length | 0.5–6 m standard; up to 30 m with Large Aperture Optics |
| Response time | 2–5 s (1 s optional) |
| Process gas conditions | Max. 1,500 °C; 90 kPa abs. to 1 MPa abs. (application dependent) |
| Analog outputs | 2 × 4–20 mA DC, isolated; HART on AO-1 |
| Digital communication | Modbus/TCP via Ethernet RJ-45, 100 Mbps |
| Inputs / outputs | 2 analog inputs, 2 digital inputs, 2 relay outputs, 2 valve control outputs |
| Power supply | 24 V DC ±10 %; max. 20 W (analyzer only) |
| Protection / material | IP66, Type 4X; aluminium alloy case |
| Weight | Sensor control unit approx. 8 kg; laser unit approx. 8 kg |
| Functional safety | SIL 2 single, SIL 3 dual analyzer use (IEC 61508) |
| Hazardous area | Zone 1/Div 1 and Zone 2/Div 2: IECEx, ATEX, FM, NEPSI, Korea, EAC, INMETRO, Japan |
How to Order
To receive a quotation for the Yokogawa TDLS8000, send Seven Star LLC your RFQ with the gas to be measured and its range, background gas composition, process temperature and pressure, dust load, duct or pipe diameter, required outputs and hazardous-area classification. Our instrumentation division in Muscat will prepare the Yokogawa application data sheet, confirm the model code and check current availability and lead time. The general specifications can be downloaded from this page, and our engineers support customers across Oman and the GCC through installation and start-up.
- Datasheet Yokogawa TDLS8000 General Specifications (GS 11Y01D01-01EN, 26th Ed.) Download
