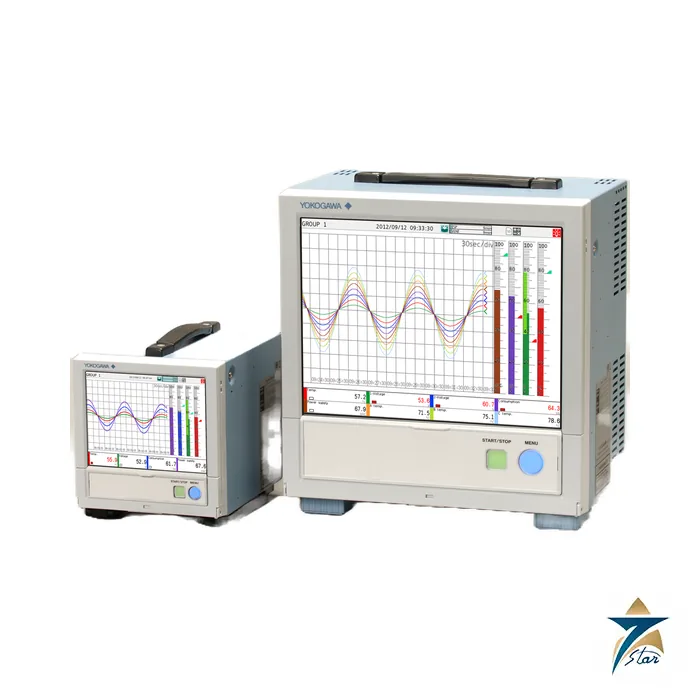

Yokogawa GP10 / GP20 Portable Touch Screen Paperless Recorder

A portable paperless recorder for commissioning, trials and temporary logging

The Yokogawa GP20 and GP10 are portable versions of the SMARTDAC+ touch-screen recorders. They share the measurement modules, software and file formats of the panel-mount GX series but come in a benchtop case with a carrying handle and a power cord, which makes them the practical choice for plant trials, commissioning, temperature surveys, furnace validation and temporary monitoring where cutting a panel is not an option. Data is stored in internal memory (500 MB, or 1.2 GB on the GP20 large-memory type) and on an SD card, and the 5.7-inch (GP10, 640 x 480) or 12.1-inch (GP20, 800 x 600) resistive touch screen supports flick, pinch and swipe operation.

Up to 100 channels are measured on the standard type and up to 500 on the large-memory type with expandable I/O (the GP10 reaches 100 analog channels and the GP20 450 with expandable I/O). Each channel can be set to DC voltage, thermocouple, RTD, DI or DC current.

Technical specifications

Modules, functions and connectivity

The GP series accepts four module types: analog input, digital input, digital output and digital input/output. The GP10 takes up to 3 modules and the GP20 up to 10, with up to six expandable I/O units connected for remote wiring. Typical printed accuracy for the analog module is plus or minus (0.01 percent of reading + 5 microvolts) on the 20 mV range and plus or minus (0.02 percent of reading + 0.2 C) for Pt100, with module datasheet GS 04L53B01-01EN giving the guaranteed values.

Functions include trend, digital, bar-graph and overview displays, an alarm summary, freehand messages, calendar search of past data, scale movement on the trend, report output to PDF or Excel files (with the /MT math option), direct output to a network printer, and a web application for setup. Ethernet gives email notification, web monitoring, FTP transfer and Modbus/RTU and Modbus/TCP communication. Options include RS-232 (/C2), RS-422/485 (/C3), VGA output (/D5), EtherNet/IP (/E1), WT communication (/E2), advanced security for Part 11 (/AS), fail output (/FL), log scale (/LG) and USB host (/UH).

Model code and ordering

The model is GP10 or GP20, type -1 (standard, up to 100 channels) or -2 (large memory, up to 500 channels), display language E, a power supply code (1 for 100 V AC or 240 V AC) and a power cord code: D for UL/CSA, F for VDE, R for the Australian standard, Q for BS, H for GB or N for the Brazilian NBR standard. Analog input modules are specified in the main code as /UC (clamp terminal) or /US (M3 screw terminal) with 10 to 50 channels, and digital I/O modules as /CR codes such as /CR01 (16 inputs) or /CR21 (12 outputs and 16 inputs). Several module combinations have footnote restrictions, so confirm the complete code before ordering.

Installation and what to confirm before ordering

The GP10 measures 144 x 168 x 197 mm (248 mm deep with modules) and weighs about 1.9 kg; the GP20 measures 288 x 318 x 197 mm (248 mm with modules) and weighs about 5.4 kg, both excluding modules. Supply is 100 to 240 V AC, ambient operating temperature is 0 to 50 C and humidity 20 to 80 percent RH. Confirm the channel count and sensor types, the scan interval, whether remote expandable I/O is needed, the power cord standard for the destination and any Part 11 requirement. The attached file is the Yokogawa general specification GS 04L52B01-01EN. The panel-mount GX10/GX20 and the GM10 modular logger are listed in controllers and data acquisition. Send the full code for a quotation.

How the Yokogawa GP20 works

Input modules measure the signals from thermocouples, RTDs, voltage and current sources. The recorder stores each value in memory and on an SD card and draws it on the touch screen. The data can be read over the network or copied from the card.

Where the GP20 is used

• Plant trials
• Commissioning
• Temperature surveys
• Furnace validation
• Temporary monitoring

Selection checklist for the GP20

• Display size
• Channel count
• Memory size
• Input types
• Module count
• Communication options
• Supply voltage
• Case weight

Installation, commissioning and maintenance notes for the GP20

Place the recorder on a bench or a stable surface and fit the input modules. Wire the signals and set each channel type on the touch screen. Save the data to the SD card at regular intervals.

Requesting a quotation for the Yokogawa GP20

Please send the channel count, the input types and the communication options needed. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

GP20 device type

It is a portable paperless recorder.

GP20 maker

It is made by Yokogawa.

GP20 platform

It belongs to the SMARTDAC+ family of touch-screen recorders.

GP20 GX relation

It shares modules, software and file formats with the panel-mount GX series.

GP20 case

It comes in a benchtop case with a carrying handle.

GP20 power cord

A power cord is supplied for use anywhere on site.

GP20 compact version

The GP10 is the smaller version.

GP20 display

The display is a 12.1 inch colour screen of 800 by 600 pixels.

GP20 GP10 display

The GP10 has a 5.7 inch screen of 640 by 480 pixels.

GP20 touch screen

A resistive touch screen supports flick, pinch and swipe operation.

GP20 internal memory

Internal memory is 500 MB, or 1.2 GB on the large-memory type.

GP20 external storage

An SD card holds additional data.

GP20 channel count

The standard type measures up to 100 channels.

GP20 large-memory channels

The large-memory type reaches up to 500 channels.

GP20 input types

Channels can be DC voltage, thermocouple, RTD, DI or DC current.

GP20 modules

Module types are analog input, digital input, digital output and digital I/O.

GP20 module slots

The GP20 takes up to 10 modules.

GP20 communication

It has Ethernet, Modbus/RTU, Modbus/TCP, FTP, email and web functions.

GP20 communication options

Options include RS-232, RS-422/485 and EtherNet/IP.

GP20 supply

The supply is 100 to 240 V AC at 50 or 60 Hz.

GP20 operating conditions

It works at 0 to 50 degrees C.

GP20 size

It measures 288 by 318 by 197 mm.

GP20 weight

It weighs about 5.4 kg without modules.

Recorder records for the GP20

Record the channel set-up, the file name and the date of each trial.

Choosing the right GP20 type

Choose the type from the channel count and the memory needed.
