Yokogawa EJA430E Gauge Pressure Transmitter
Overview
The Yokogawa EJA430E traditional-mount gauge pressure transmitter is part of Yokogawa’s EJA-E series, the latest evolution of the proven DPharp transmitter family, combining the field-proven ruggedness of the EJA-E platform with the high-accuracy performance associated with Yokogawa’s premium EJX-A series. Built around a single crystal silicon resonant sensor, the EJA430E delivers precise, stable gauge pressure measurement of liquids, gases, and steam across a wide range of industrial process applications.
For refineries, chemical plants, and utility operators across Oman and the wider GCC, the EJA430E provides a dependable, field-proven gauge pressure measurement solution backed by Yokogawa’s global reputation for instrument reliability. Seven Star LLC supplies the Yokogawa EJA430E gauge pressure transmitter to customers across Muscat, Sohar, Salalah, and the Sultanate of Oman as a trusted Yokogawa supplier, providing instruments with manufacturer documentation and technical support.
Measurement and Operating Principle
The EJA430E uses Yokogawa’s proprietary DPharp resonant silicon sensor technology, in which applied pressure causes minute mechanical deformation of a silicon resonator, changing its resonant frequency in direct proportion to the applied pressure. This frequency-based sensing principle, rather than a simple analog strain measurement, gives the DPharp sensor exceptional long-term stability, with a typical specification of ±0.1% stability over 10 years, and standard accuracy of ±0.055% of span, with an optional high-accuracy configuration reaching ±0.04%.
The transmitter converts the sensed pressure into a standard 4…20 mA DC output signal, with a fast 90 ms response time suited to dynamic process control loops. Communication and configuration options include HART 5/7 protocol overlaid on the 4…20 mA signal, a low-power 1…5V HART 7 variant, FOUNDATION Fieldbus, PROFIBUS PA, and Yokogawa’s BRAIN communication protocol, giving engineers flexibility to integrate the EJA430E into virtually any existing or new control system architecture.
Engineering Design of the Yokogawa EJA430E
The EJA430E is built on the rugged EJA-E series mechanical platform, engineered for demanding industrial environments and vibration-heavy installations common in rotating equipment areas and outdoor process units. The transmitter’s onboard self-diagnostics continuously monitor sensor health and electronics status, alerting operators to abnormal conditions before they affect measurement accuracy or availability, an important capability for both routine process control and safety-critical measurement points.
Safety-instrumented system applications are supported through Exida and TUV SIL 2/3 certification, giving engineers the documentation needed to specify the EJA430E into functional safety loops designed to IEC 61508. The transmitter supports remote setup and monitoring via BRAIN or HART communication tools, allowing technicians to configure range, dampening, and alarm parameters without requiring physical access to the transmitter in hard-to-reach or hazardous locations.
Key Features
- Single crystal silicon resonant DPharp sensor for high stability and accuracy
- Standard accuracy of ±0.055%, optional ±0.04% high-accuracy configuration
- ±0.1% stability over 10 years
- Fast 90 ms response time for dynamic control applications
- HART 5/7, FOUNDATION Fieldbus, PROFIBUS PA, and BRAIN communication options
- Exida and TUV SIL 2/3 certified for safety-instrumented systems
- Built-in self-diagnostics for continuous health monitoring
- Rugged EJA-E series mechanical platform suited to demanding environments
Industrial Applications
The EJA430E is widely used across refining, petrochemical, chemical processing, and power generation facilities for gauge pressure measurement of liquids, gases, and steam in process vessels, pipelines, and utility systems. Its combination of high accuracy, long-term stability, and SIL 2/3 safety certification makes it a strong candidate for both standard process control loops and safety-instrumented pressure measurement points across critical process areas.
Throughout Oman’s oil, gas, and industrial sectors, including facilities supporting the Sohar and Salalah economic zones, the EJA430E gives instrumentation engineers a field-proven, globally trusted pressure measurement platform backed by decades of Yokogawa DPharp sensor deployment. As a trusted supplier of Yokogawa products, Seven Star LLC supports these projects across the Sultanate of Oman with Yokogawa transmitters, technical guidance, and ongoing support.
Technical Specifications
| Model | Yokogawa EJA430E |
| Type | Traditional-mount gauge pressure transmitter |
| Sensor Technology | DPharp single crystal silicon resonant sensor |
| Accuracy | ±0.055% standard, ±0.04% optional |
| Stability | ±0.1% per 10 years |
| Response Time | 90 ms |
| Output | 4…20 mA DC with HART, FOUNDATION Fieldbus, PROFIBUS PA, BRAIN |
| Safety Certification | Exida and TUV SIL 2/3 |
| Manufacturer | Yokogawa |
Why Choose Seven Star LLC for Yokogawa EJA Series Pressure Transmitters
A gauge pressure transmitter’s SIL 2/3 safety certification only means something if the correct range, communication protocol, and hazardous-area rating are specified for your actual safety-instrumented loop, since a mismatched configuration can leave a safety function technically uncertified even with a genuinely SIL-rated instrument installed. Seven Star LLC confirms the correct EJA430E range and communication protocol (HART, FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN) against your specific control system before shipment, backed by our trusted Yokogawa suppliership across Oman and the wider GCC. We also support process plants across Sohar and Salalah standardizing pressure instrumentation on the EJA platform, planning spare transmitters and consistent protocol configuration so replacements integrate without disrupting existing control loops.
Order Your Yokogawa EJA430E Today
Contact Seven Star LLC to request a quotation, datasheet, or technical consultation for the Yokogawa EJA430E gauge pressure transmitter. As a trusted Yokogawa supplier serving Muscat, Sohar, Salalah, and the greater Sultanate of Oman, Seven Star LLC supplies instrumentation with manufacturer documentation and dedicated technical support for pressure measurement projects across the GCC.
Related Products
- Datasheet Yokogawa EJA430E Gauge Pressure Transmitter Datasheet Download
Yokogawa product families on this page

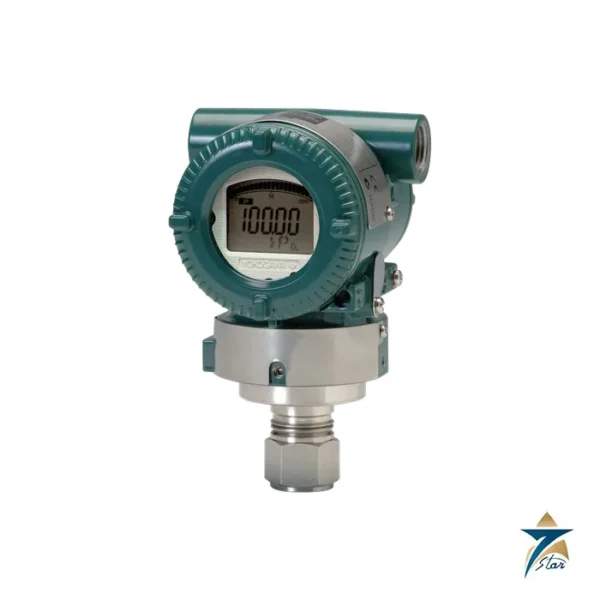

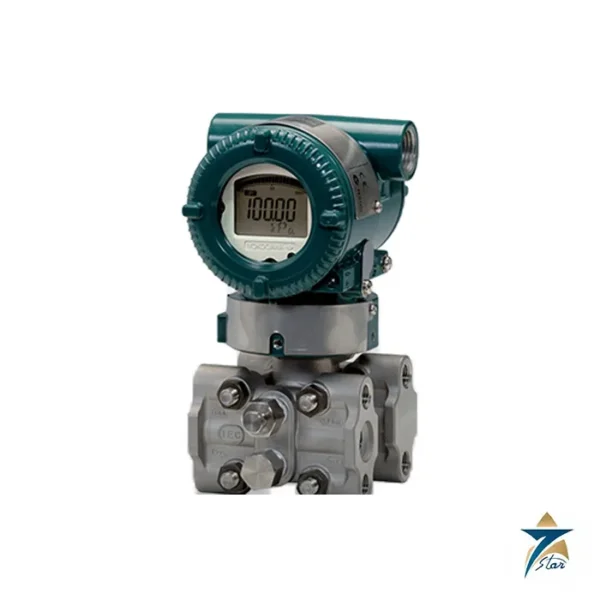

Pressure is covered by the DPharp transmitters: the EJX110A differential pressure transmitter, the EJX530A and EJA530E in-line gauge pressure transmitters and the EJX910A multivariable transmitter. The ADMAG AXW is the magnetic flowmeter line, and the YTA610 and YTA710 are temperature transmitters. Analyzers include the FLXA402 four-wire and FLXA21 two-wire liquid analyzers, the TDLS8000 tunable diode laser gas analyzer and spare parts for zirconia oxygen analyzers, such as the E7042UD cell assembly kit for the ZR22 detector. Control hardware includes CENTUM VP I/O modules like the ADV161 digital input module and the YS1700 programmable indicating controller.Where Yokogawa instruments are used
