Lovato 31L48MM240 Multifunction Time Relay 24-240 V AC/DC
Description
A multi-voltage multifunction timer in a 48 mm plug-in housing

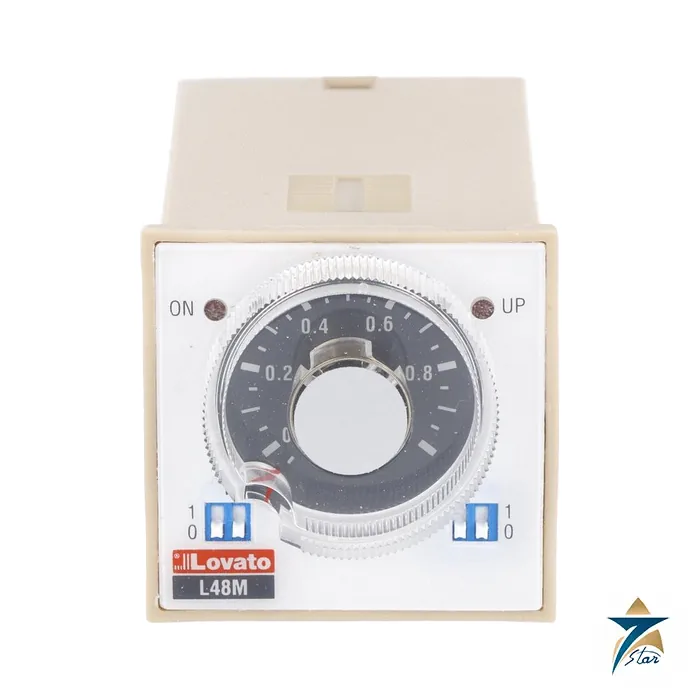

The 31L48MM240 is an electronic multifunction time relay from Lovato Electric with a 48 x 48 mm plug-in housing. A single unit covers supplies from 24 to 240 V AC or DC, so one part number can serve several control voltages in a panel, and the time range is selected with DIP switches and set on a front knob.
Selectable functions include on-delay, pulse on energising and two flasher modes, with an external reset input and a stop input that stores the elapsed time. Two relay outputs each provide a changeover contact, and both are delayed. It plugs into an 11-pin socket and can be flush-mounted in a door with the optional bracket. The data below comes from the Lovato catalogue.
Technical specifications
| Parameter | Specification |
|---|---|
| Type | Multifunction time relay L48M, order code 31L48MM240 |
| Auxiliary supply voltage | 24 to 240 V AC/DC, 50/60 Hz, operating range 0.85 to 1.1 Us |
| Power consumption | 6 VA maximum |
| Micro-interruption immunity | 40 ms or less |
| Time setting range | 0.05 s to 10 min (ranges 0.05-1 s, 0.1-10 s, 0.6 s-1 min, 6 s-10 min) |
| Setting accuracy / repeat accuracy | plus or minus 5 % / plus or minus 0.5 % |
| Influence of voltage variation | plus or minus 0.5 % |
| Outputs | 2 relays, each 1 changeover contact, both delayed |
| Switching voltage / thermal current | 250 V AC maximum / 5 A (Ith) |
| Electrical designation | B300 (UL/CSA and IEC/EN 60947-5-1) |
| Mechanical / electrical life | 30,000,000 / 100,000 cycles at rated load |
| Insulation | Ui 250 V, 2 kV power frequency withstand input to output |
| Operating / storage temperature | -10 to +60 degC / -30 to +80 degC |
| Housing | Self-extinguishing polyamide, plug-in, 11-pin socket |
| Degree of protection | IP40 front, IP20 terminals |
| Dimensions (W x H x D) | 48 x 48 x 90 mm |
| Standards | IEC/EN 61812-1, UL 508, CSA C22.2 No. 14; cURus, EAC |
Functions and settings
The catalogue lists the selectable functions as delay on make, pulse on energising, and flasher starting with either the OFF or the ON interval. A reset contact on terminals 7 and 6 resets the relay, and a contact on terminals 7 and 5 stops timing and keeps the elapsed time until it is opened again. LEDs show power on and relay state. The sister model 31L48MH240 covers longer ranges from 0.05 min to 10 h.
Sockets and ordering
The relay needs an 11-pin socket. Lovato lists the HR7XS2 socket for screw or DIN-rail fixing and the 31L48P11 loose socket with the 31L48AP flush door-mounting bracket. The sockets are rated 10 A, 250 V AC with a maximum conductor section of 2 x 2.5 mm2. Please confirm the control voltage and the required function and time range before ordering. The Lovato web page lists weight as 135 g in the data sheet and 134 g in the logistics data. Browse more automation accessories or send us your requirement.
Documents and quotation
The Lovato time relays catalogue chapter (chapter 21, English, 2024 edition) is attached to this page and contains the function descriptions, time ranges, wiring diagrams and technical characteristics. Please send the full order code, quantity and delivery location through the quotation form, and Seven Star LLC will revert with availability.
