Brand: Wolf Safety

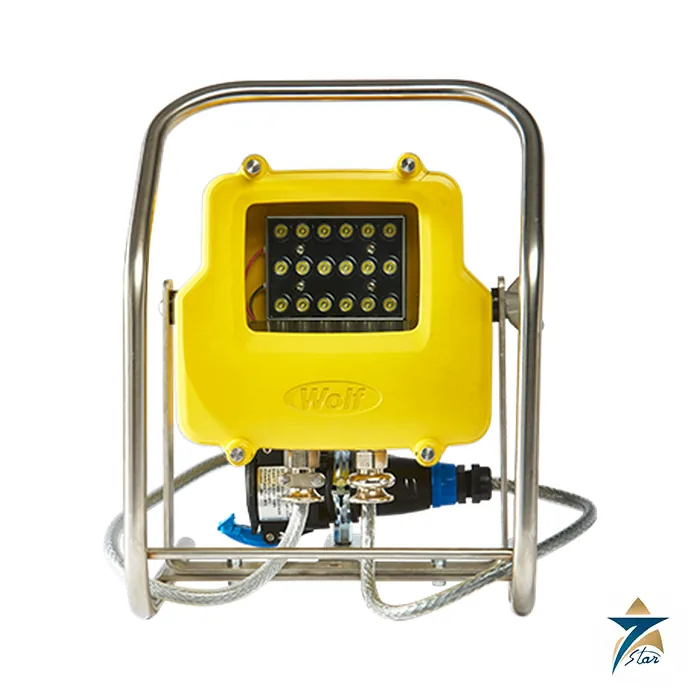

Wolf Safety LinkEx WF-250XL LED Floodlite
Description
Portable ATEX floodlight for confined spaces and small hazardous work areas
The Wolf Safety LinkEx WF-250XL is a portable LED floodlight for temporary lighting in potentially explosive atmospheres. Wolf designed it to give the right level of light in smaller hazardous areas and confined spaces, using a patented light engine, and notes that up to eight units can run from a single 400 VA Wolf transformer, which suits 24 volt work with a limited power supply.
It is certified under ATEX and IECEx for gas Zones 1 and 2 and dust Zones 21 and 22. Both low-voltage and high-voltage versions are offered, and both can be fitted with linkable sockets so several lights can be daisy-chained.
Technical specifications of the WF-250XL
| Parameter | Specification |
|---|---|
| Manufacturer | Wolf Safety Lamp Company, Sheffield, UK |
| Product reference | WF-250XL, LinkEx LED Floodlite |
| Type of protection | Ex eb mb (increased safety, encapsulation) and Ex tb (enclosure protection) |
| Gas hazard area | Zones 1 and 2, gas groups IIA, IIB and IIC |
| Temperature class (gas) | T4 |
| Dust hazard area | Zones 21 and 22, dust groups IIIA, IIIB and IIIC |
| Maximum surface temperature (dust) | 118 °C |
| Ambient temperature | -40 °C to +55 °C |
| Certificates | CML 18ATEX3372X; IECEx CML 18.0198X |
| Supply voltage | LV: 18-50 V AC/DC; HV: 90-264 V AC/DC |
| Power | LV: 28 W; HV: 31 W |
| Light source | 18 x white high-power LED, 100,000+ hours |
| Light output at LED source | Up to 4,788 lm |
| Illuminance | 1,630 lux at 2 m; 250 lux at 5 m |
| Beam type | Medium flood |
| Enclosure / lens | Marine-grade aluminium alloy, epoxy powder coated / toughened glass |
| Ingress protection | IP66/67 |
| Weight | 5.4 kg excluding cable |
| Included | Bridle and lamp stand |
WF-250XL and WF-300XL compared
Wolf publishes one datasheet for the WF-250XL and the larger WF-300XL. The WF-300XL doubles the light engine for tasks needing finer perception of detail.
| Parameter | WF-250XL | WF-300XL |
|---|---|---|
| Parameter | WF-250XL | WF-300XL |
| LED count | 18 | 36 |
| Light output at source | Up to 4,788 lm | Up to 9,576 lm |
| Illuminance at 2 m / 5 m | 1,630 / 250 lux | 3,573 / 572 lux |
| Power LV / HV | 28 W / 31 W | 55 W / 62 W |
| Weight (no cable) | 5.4 kg | 7.3 kg |
| LV units per 400 VA transformer | Up to 8 | Up to 4 |
Safety features, supply and installation
Wolf describes a Safe Optimal Voltage Indicator, called SOVI, that alerts the user if the light is running outside its certified and optimal voltage range. Both LV and HV units are described as safe down to 0 volts.
The frame is 316 stainless steel, the enclosure is marine-grade aluminium and the lens is toughened, scratch- and chemical-resistant glass, chosen for environments with a high risk of mechanical damage. LED life is protected by heat dissipation through built-in fins and electronic control.
Select the LV model where lights are fed from a Wolf transformer through a distribution system, and the HV model where a suitable mains supply is available. Count the lights on each transformer against the stated limit and use certified cable assemblies and splitter boxes only.
Place the floodlight with the stand or bridle so the glass is not exposed to impact, avoid blocking the finned housing, and follow the instruction manual published by Wolf for cable entry, earthing and inspection intervals.
Documents and quotation
The attached document is the Wolf Safety combined WF-250XL and WF-300XL LED floodlite datasheet (September 2024). Instruction manuals and certificates are published separately by the manufacturer.
For a quotation, send the model, LV or HV voltage, number of lights, and whether linkable sockets are required. See Automation Accessories for other hazardous-area equipment.
Datasheets & Documents
- Datasheet Wolf Safety LinkEx WF-250XL and WF-300XL LED Floodlite datasheet (September 2024) Download
Reviews (0)
About brand
Wolf Safety is a Sheffield manufacturer of ATEX and IECEx certified lighting for hazardous areas, with a history in mining safety lamps going back more than a century. Its portable, temporary, installed and area luminaires are used by maintenance, inspection and shutdown teams working where flammable gas, vapour or dust may be present.
Hazardous-area lighting ranges
The Wolf Safety catalogue covers rechargeable handlamps and torches, headtorches, linkable temporary floodlights and luminaires, tank lighting kits, installed linear, floodlight, highbay and bulkhead luminaires, and towerlite area lights. Supporting products include ATEX transformers, splitter boxes, cable reels, extension cables and ventilation fans.
Certification and application
Wolf Safety publishes ATEX, IECEx and UKEX certificates alongside its datasheets, so buyers can check the zone, gas group and temperature class before a lamp is issued to a work crew. Typical uses include tank and vessel entry, plant turnarounds, refinery and offshore inspection rounds, and emergency lighting where a hazardous atmosphere is possible.
Sourcing through Seven Star LLC
Seven Star LLC supplies Wolf Safety lighting to customers in Oman and the GCC and can quote against the datasheet model, voltage and zone requirements of each project.
Related products
Frequently Asked Questions
How many WF-250XL lights run from one transformer?
Wolf states up to 8 low-voltage WF-250XL floodlites can be connected to one 400 VA Wolf transformer.
What is the light output?
Up to 4,788 lumens, with 1,630 lux at 2 m and 250 lux at 5 m.
Which hazardous zones apply?
Gas Zones 1 and 2 and dust Zones 21 and 22, with ATEX CML 18ATEX3372X and IECEx CML 18.0198X certificates.
What supply voltages are available?
Low voltage 18-50 V AC/DC (28 W) and high voltage 90-264 V AC/DC (31 W).
What is SOVI?
Wolf Safe Optimal Voltage Indicator, which alerts the user when the light runs outside its certified and optimal voltage range.
