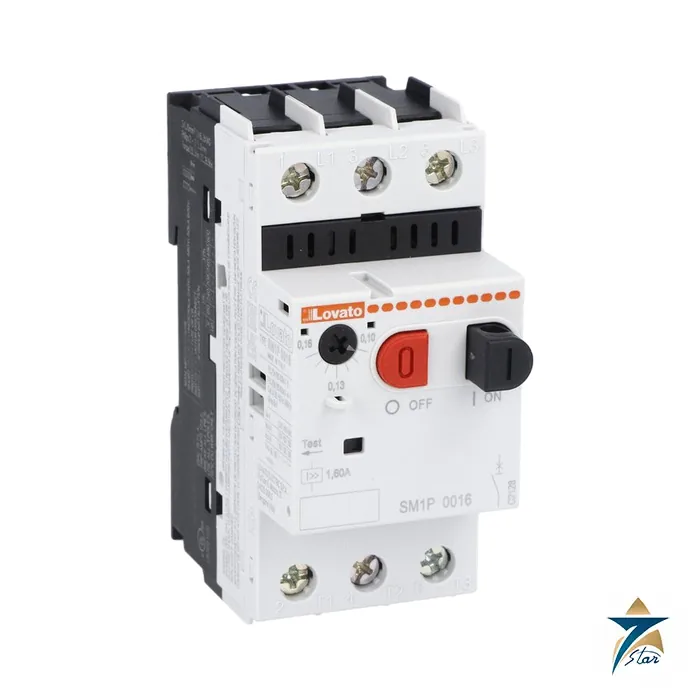

Lovato SM1P0650 4-6.5 A Motor Protection Circuit Breaker
Description
Motor protection for loads from 4 to 6.5 A in one device
Where a motor feeder needs a switch, overload protection and short-circuit protection in one place, the three-pole SM1P0650 from the Lovato Electric SM1 range does all three; the overload dial adjusts over 4-6.5 A.
Rated current In is 6.5 A; the thermal release adjusts 4-6.5 A and the magnetic release trips at 13 x In. Breaking capacity values are listed as 100 kA at 400 V, 100 kA at 440 V and 3 kA at 690 V. The tripping class is 10A.
Technical specifications
| Parameter | Specification |
|---|---|
| Order code | SM1P0650 |
| Product designation | Motor protection circuit breaker |
| Product type designation | SM1P |
| Number of poles | 3 |
| Magnetic protection | yes |
| Thermal protection | yes |
| Phase failure detection | yes |
| Rated insulation voltage Ui IEC/EN | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated frequency | 50/60 Hz |
| Thermal trip adjustment range | 4-6.5 |
| Rated current (In) | 6.5 A |
| Magnetic tripping | 13 x In |
| Power dissipation per pole (min) | 0.75 W |
| Power dissipation per pole (max) | 1.99 W |
| Operational short-circuit current breaking capacity (Ics) at AC, 230V | 100 kA |
| Operational short-circuit current breaking capacity (Ics) at AC, 400V | 100 kA |
| Operational short-circuit current breaking capacity (Ics) at AC, 440V | 100 kA |
| Operational short-circuit current breaking capacity (Ics) at AC, 500V | 100 kA |
| Operational short-circuit current breaking capacity (Ics) at AC, 690V | 3 kA |
| Maximum short-circuit current breaking capacity (Icu) at AC, 230V | 100 kA |
| Maximum short-circuit current breaking capacity (Icu) at AC, 400V | 100 kA |
| Maximum short-circuit current breaking capacity (Icu) at AC, 440V | 100 kA |
| Maximum short-circuit current breaking capacity (Icu) at AC, 500V | 100 kA |
| Maximum short-circuit current breaking capacity (Icu) at AC, 690V | 3 kA |
| Tripping class | 10A |
| Mechanical life | 100000 cycles |
| Electrical life | 100000 cycles |
| Operating temperature (min) | -20 °C |
| Operating temperature (max) | +60 °C |
| Storage temperature (min) | -50 °C |
| Storage temperature (max) | +80 °C |
| Compensation temperature (min) | -20 °C |
| Compensation temperature (max) | +50 °C |
| Max altitude | 3000 m |
| Operating position, normal | Vertical plan |
| Fixing | Screw / DIN rail 35mm |
| Weight | 350 g |
| Motor Disconnect, at 240V | 30 kA |
| Motor Disconnect, at 480V | 30 kA |
| Motor Disconnect, at 600V | 30 kA |
| protection | 100A class J |
| Group Motor Installation, at 240V | 30 kA |
| Group Motor Installation, at 480V | 30 kA |
| Group Motor Installation, at 600V | 30 kA |
| Maximum UL/CSA horsepower ratings single-phase, 110V-120V | 1/4 HP |
| Maximum UL/CSA horsepower ratings single-phase, 220V-240V | 1/2 HP |
| Maximum UL/CSA horsepower ratings three-phase, 3-pole, 200V-208V | 1.5 HP |
| Maximum UL/CSA horsepower ratings three-phase, 3-pole, 220V-240V | 1.5 HP |
| Maximum UL/CSA horsepower ratings three-phase, 3-pole, 440V-480V | 3 HP |
| Maximum UL/CSA horsepower ratings three-phase, 3-pole, 550V-600V | 5 HP |
Choosing the setting range
Choose the range so the nameplate current sits inside 4-6.5 A, ideally in the middle of the dial where adjustment is most accurate. Check the prospective short-circuit level at the panel against the Icu table above.
At 400 V the breaking capacity is 100 kA (Icu) and 100 kA (Ics). Compare that with the fault level at your board, and look at the 440 V to 690 V columns where the figures can drop sharply.
Applications and accessories
In pump, fan and compressor starters the breaker sits upstream of a contactor, and rigid connection kits link the two into a compact assembly. Auxiliary and signalling contacts, shunt and undervoltage releases and door-coupling handles are accessories for the series.
Mounting is on a 35 mm DIN rail or with screws, any position within the allowed range, and the unit weighs 350 g. Use the dissipation figure (0.75 W to 1.99 W per pole) in thermal calculations.
Documents and quotation
Download the attached datasheet for SM1P0650 from the Lovato Electric online catalogue (English) to see every parameter in full. What to confirm before ordering: the motor full-load current, the supply voltage and the prospective short-circuit current at the panel. The manufacturer can revise published data at any time. See circuit breakers for similar items. Quote request: give the exact code SM1P0650, the quantity and where it must be delivered, and Seven Star LLC (independent supplier, Muscat) will respond.
